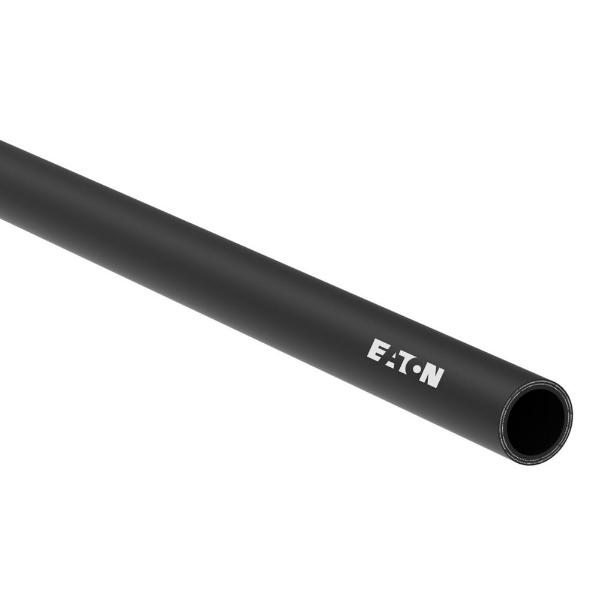

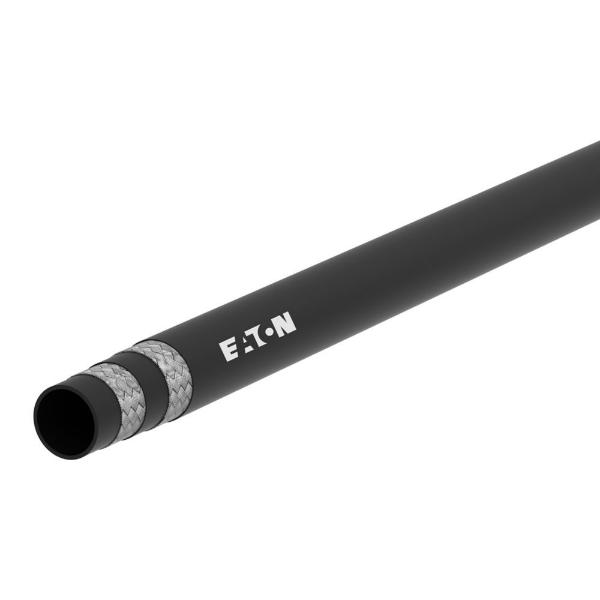

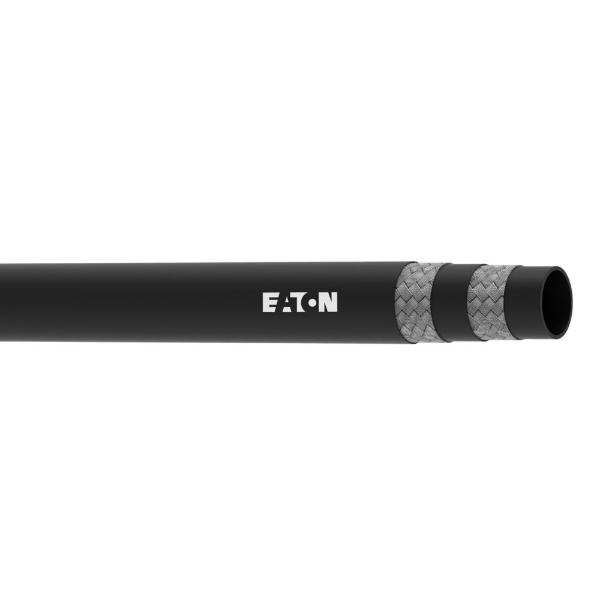

WEATHERHEAD H245L04-250R Hydraulic Hose, 6000 psi, 1/4 Inch Hose I.D., 53/64 Inch Hose O.D., 250 ft Hose Lg
Item: AF6XRH
Model: H245L04-250R
In Stock
Get it by Wednesday, Apr 15
5.00% off
£3178.44/unit
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Abrasion Resistance | Premium |
|---|---|
| Application | Construction |
| Burst Pressure | 24025 psi |
| Color | Black |
| Compatible Chemicals | Air, Automatic Transmission Fluid, Diesel Fuel, Ethylene Glycol, Fresh Water, Fuel Oil, Gasoline, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Kerosene, Lithium Grease, Lubricated Air, Min.Eral Oil, Motor Oil, Salt Water |
| Conductivity | Conductive |
| Construction | 2-ply braid |
| Cover Material | Chloroprene Rubber |
| Dash Size | 4 |
| Height | 14/25" |
| Hose Color | Black |
| Hose Configuration | Bulk Hose |
| Hose Cover Material | Synthetic Rubber |
| Hose Fittings | Z |
| Hose Inside Dia. | 1/4" |
| Hose Length | 250 ft. |
| Hose Outside Dia. | 53/64" |
| Hose Reinforcement Material | Carbon Steel |
| Hose Tube Material | Nitrile |
| Impulse Cycle Life | 300000 Cycles |
| Inside Dia. | 1/4" |
|---|---|
| Lay Line Style | Ink Jet |
| Length | 250 ft. |
| Length Configuration | 50, 250 |
| Max. Operating Temp. | 212°F |
| Max. Working Pressure @ 70 F | 6000 psi |
| Min. Bend Radius | 2" |
| Min. Operating Temp. | -70°F |
| Outside Dia. | 14/25" |
| Package Form | Reel |
| Reinforcement Material | Wire |
| Safety Factor | 4:1 |
| Standard Logo | msha.png |
| Tube Material | Nitrile |
| Wall Thickness | 0.155" |
| Warranty | Hydraulics Warranty |
| Width | 14/25" |
| Working Pressure | 6000 psi |
| standard | EN857 2SC, MSHA, SAE 100R16 |
Product Details
Hydraulic Hose
Shipping Information
| height | 1.42 |
|---|---|
| length | 55.88 |
| width | 1.42 |
| hs code | 4009410000 |
|---|---|
| country of origin | US |
| weight | 22.500000 |
Related Products
| Style | Model | Hose Inside Dia. | Hose Tube Material | Dash Size | Min. Bend Radius | Hose Outside Dia. | Burst Pressure | Inside Dia. | Hose Length | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | H245L06-250R | 3/8" | Nitrile | 6 | 2 1/2" | 53/64" | 20025 psi | 0.38" | 250 ft. | 3,127.51 | |
| A | H245L08-250R | 1/2" | Nitrile | 8 | 3 1/2" | 53/64" | 18000 psi | 1/2" | 250 ft. | 3,884.05 | |
| A | H245L10-250R | 5/8" | Nitrile | 10 | 4" | 53/64" | 16000 psi | 0.62" | 250 ft. | 5,353.39 | |
| A | H245L12-250R | 3/4" | Nitrile | 12 | 4 3/4" | 53/64" | 14000 psi | 3/4" | 250 ft. | 6,022.41 | |
| A | H245L16-250R | 1" | Synthetic Rubber | 16 | 6" | 1 13/32" | 11200 psi | 1" | 250 ft. | 8,047.71 |
