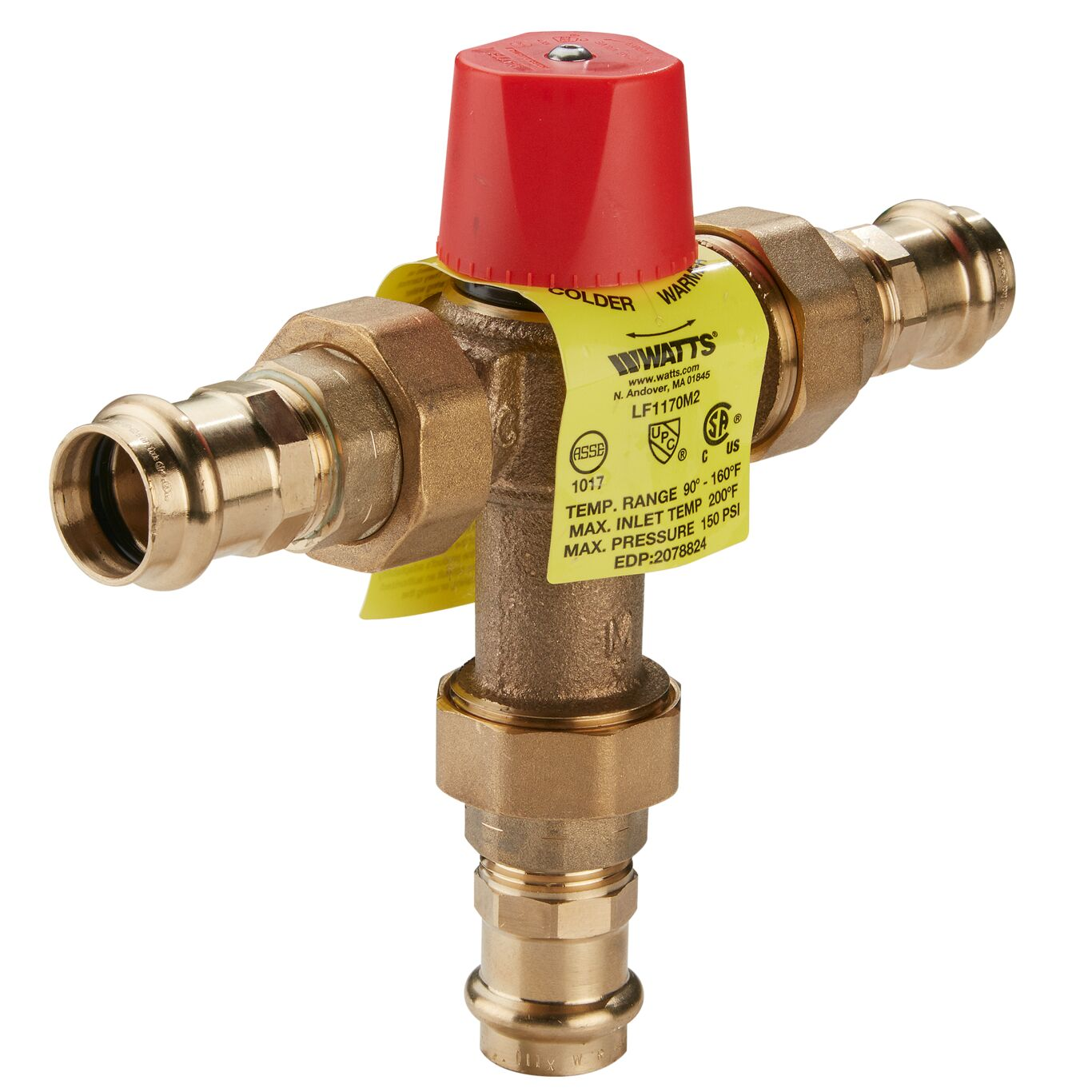

WATTS LF1170M2-UT (W/PRESS) 1/2 6550788 Hot Water Control Valve, 40 To 85 Deg. F
Item: CA7UGF
Model: LF1170M2-UT (W/PRESS) 1/2
In Stock
Get it by Thursday, Apr 16
£279.79/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Item | Control Valve |
|---|---|
| Body Finish | Rough Bronze |
| Capacity | 23 GPM at 45 psi |
| Cold Inlet Temp. | 40°F to 85°F |
| Cold Inlet Temperature Range | +40°F to +85°F |
| Cold Water Bypass | No |
| Cold Water Inlet Connection Size | 1/2" |
| Cold Water Inlet Thread Type | Not Applicable |
| Flow Rate | 0.5-23 GPM |
| Hot Inlet Temp. | 120°F to 200°F |
| Hot Inlet Temperature Range | +120°F to +200°F |
| Hot Water Inlet Connection Size | 1/2" |
| Hot Water Inlet Thread Type | Not Applicable |
| Inlet Connection | Press |
| Inlet Size | 1/2" |
| Inlet Temperature (cold) | +40°F to +85°F |
| Inlet Temperature (hot) | +120°F to +200°F |
|---|---|
| Max. Temp. | 200°F |
| Max. Working Pressure | 150 psi |
| Mfr. Series | LF1170 |
| Minimum Differential Temperature | 5°F |
| Outlet Connection | Press |
| Outlet Connection Thread Type | Press |
| Outlet Size | 1/2" |
| Outlet Temperature Accuracy | -7°F to +7°F |
| Outlet Thread Type | Not Applicable |
| Outlet Type | Press |
| Pressure Differential Max. | 25% |
| Static Pressure | 30 psi |
| Temperature Adjustment Range | 90°F to 160°F |
| Thermometer Type | No |
| Wi-fi Enabled | No |
Product Details
Hot Water Control Valve, 40 To 85 Deg. F
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
|---|---|
| weight | 1.050000 |
Related Products
| Style | Model | Flow Rate | Outlet Size | Outlet Type | Inlet Size | Inlet Type | Capacity | Temperature Adjustment Range | Cold Inlet Temp. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1/2 LF1170M2-PEX | 0.5-23 GPM | 1/2" | FNPT | 1/2" | FNPT | 23 GPM at 45 psi | - | 40°F to 85°F | 361.45 | |
| B | LF1170-M2-US | 23 GPM | 1" | Solder | 1" | Union | - | - | +40°F to +85°F | 380.18 | |
| C | LF1170-M2-UT | 23 GPM | 1" | Threaded | 1" | Union | - | - | +40°F to +85°F | 497.93 | |
| D | LF1170M2-QC 3/4 | 23 GPM | 3/4" | Quick Connect | 3/4" | Quick Connect | - | - | +40°F to +85°F | 164.95 | |
| E | LF1170M2-QC 1 | 23 GPM | 1" | Quick Connect | 1" | Quick Connect | - | - | +40°F to +85°F | 349.69 | |
| F | LFL1170M2-PEX 1 | 0.5-23 GPM | 1" | Crimped | - | - | 23 GPM at 45 psi | 60°F to 120°F | 40°F to 85°F | 576.67 | |
| G | LF1170M2-QC 1/2 | 0.5-23 GPM | 1/2" | Quick Connect | - | - | 23 GPM | - | - | 384.93 |
