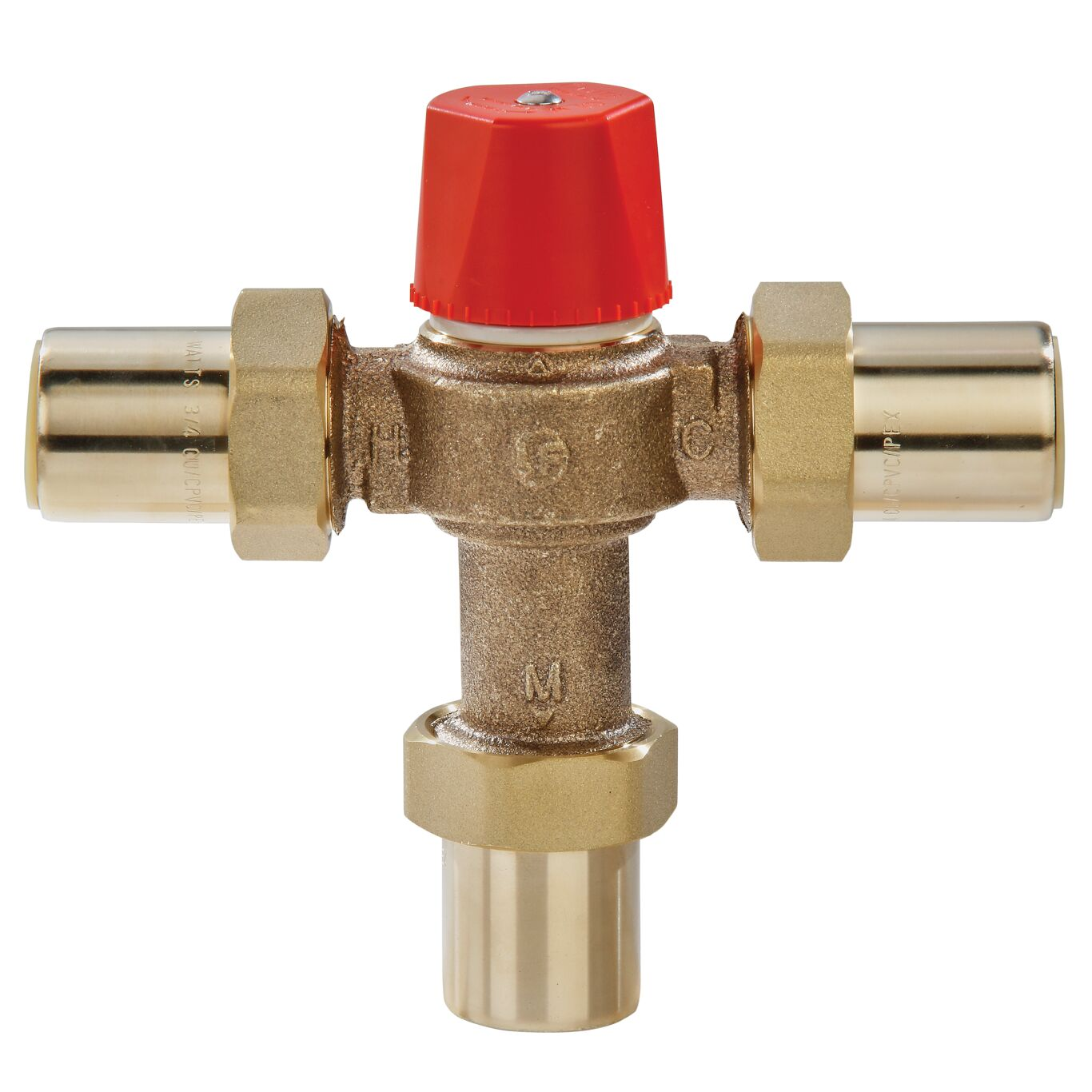

WATTS LF1170M2-QC 1 0559150 Thermostatic Mixing Valve, 1 Inch Inlet and Outlet Connection Size, Brass
Item: AF8XQW
Model: LF1170M2-QC 1
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Body Material | Brass |
|---|---|
| Cold Inlet Temp. | +40°F to +85°F |
| Connection Type | Quick Connect |
| Flow Rate | 23 GPM |
| Hot Inlet Temp. | +120°F to +200°F |
| Hot Inlet Temp. Range | 120°F to 200°F |
| Includes | Check Valves, Integral Filter Washers, Locking Mechanism, Solid Wax Hydraulic Principle Thermostat |
| Includes Temperature Gauge | No |
| Inlet (cold) Temperature Range | 40°F to 85°F |
| Inlet Connection Size | 1" |
| Inlet Size | 1" |
|---|---|
| Inlet Type | Quick Connect |
| Max. Operating Pressure | 150 psi |
| Max. Pressure | 150 psi |
| Outlet Size | 1" |
| Outlet Temperature Range | 90°F to 160°F |
| Outlet Type | Quick Connect |
| Temp. Range | +90°F to +160°F |
| Valve Type | Thermostatic |
| standard | ASSE 1017, B125, CSA, IAMPO, UPC |
Product Details
Thermostatic Mixing Valve
Shipping Information
| height | 18.73 |
|---|---|
| length | 6.19 |
| width | 14.29 |
| hs code | 8481400000 |
|---|---|
| weight | 1.746000 |
Related Products
| Style | Model | Flow Rate | Outlet Size | Outlet Type | Inlet Size | Inlet Type | Capacity | Temperature Adjustment Range | Cold Inlet Temp. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1/2 LF1170M2-PEX | 0.5-23 GPM | 1/2" | FNPT | 1/2" | FNPT | 23 GPM at 45 psi | - | 40°F to 85°F | 425.23 | |
| B | LF1170-M2-US | 23 GPM | 1" | Solder | 1" | Union | - | - | +40°F to +85°F | 447.27 | |
| C | LF1170-M2-UT | 23 GPM | 1" | Threaded | 1" | Union | - | - | +40°F to +85°F | 585.80 | |
| D | LF1170M2-QC 3/4 | 23 GPM | 3/4" | Quick Connect | 3/4" | Quick Connect | - | - | +40°F to +85°F | 194.06 | |
| E | LFL1170M2-PEX 1 | 0.5-23 GPM | 1" | Crimped | - | - | 23 GPM at 45 psi | 60°F to 120°F | 40°F to 85°F | 678.44 | |
| F | LF1170M2-QC 1/2 | 0.5-23 GPM | 1/2" | Quick Connect | - | - | 23 GPM | - | - | 452.86 | |
| A | LFL1170M2-PEX 3/4 | 0.5-23 GPM | 3/4" | Crimped | - | - | 23 GPM at 45 psi | 60°F to 120°F | 40°F to 85°F | 545.84 |
