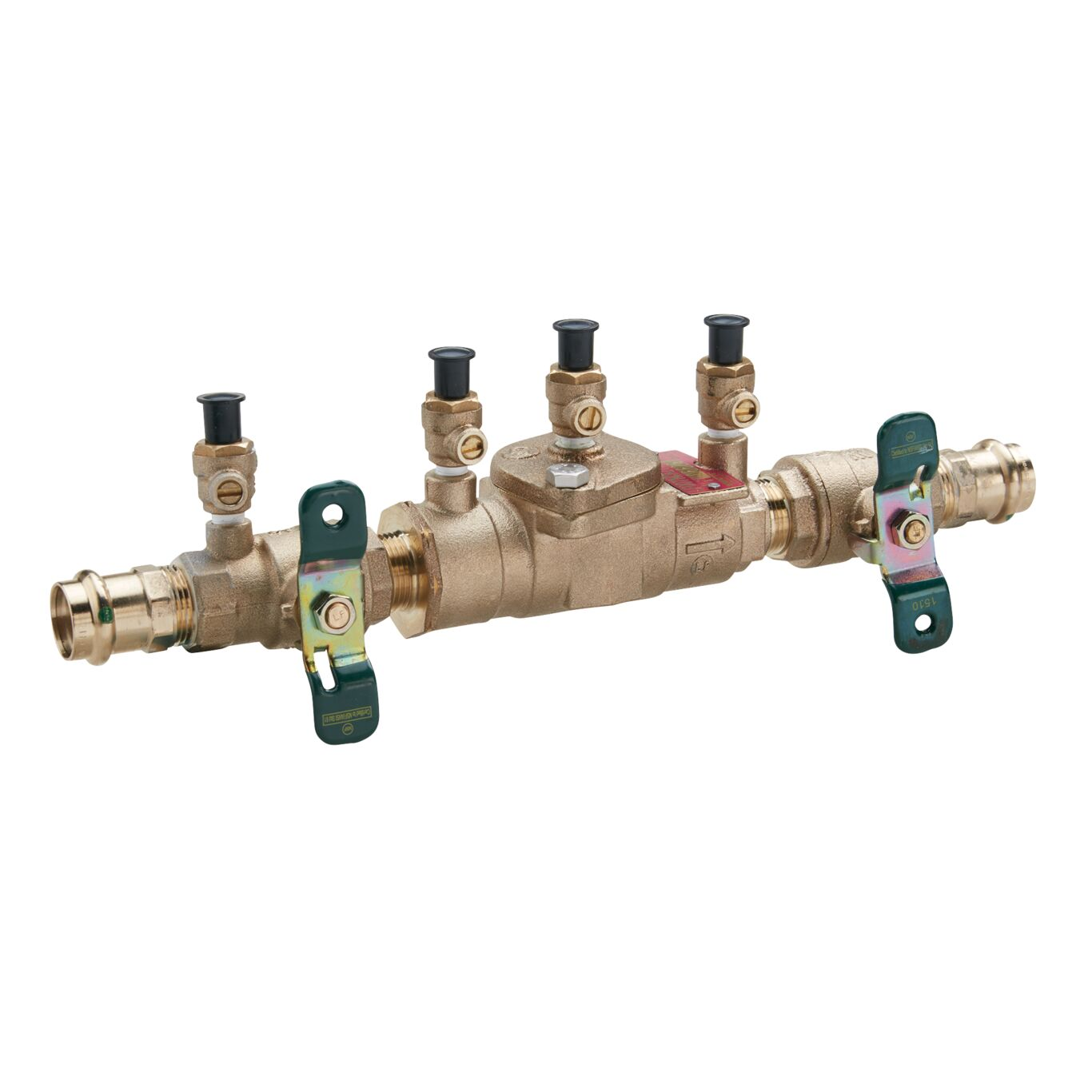

WATTS LF007-QT (W/PRESS) 1/2 0063238 Double Check Valve Assembly, Quarter Turn Ball Valve, 1/2 Inch Size, Bronze
Item: CA9DCD
Model: LF007-QT (W/PRESS) 1/2
In Stock
£389.05/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Item | Double Check Valve Assembly |
|---|---|
| Armortek Technology | No |
| Backflow Preventer Type | Double Check Valve Assembly |
| Body Finish | Epoxy Coated |
| Body Material | Lead Free Bronze |
| Body Pattern | Inline |
| Body Style | Inline |
| By Pass | No |
| Cap And Tether | No |
| Disc Material | Rubber |
| Elbow Fitting | No |
| Fitting | No |
| Hazard Protection Level | Non Health Hazard |
| Hot And Harsh Water | No |
| Hydrant Connection | No |
| Inlet Connection Size | 1/2" |
| Inlet Shutoff Valve Type | Quarter Turn Ball Valve |
| Inlet Size | 1/2" |
| Inlet Thread Type | Not Applicable |
| Inlet Type | Press |
| Lead Free | Yes |
| Material | Lead Free Bronze |
|---|---|
| Max. Temp. | 180°F |
| Max. Working Pressure | 175 psi |
| Maximum Working Pressure | 12.1 Bar |
| Meter Type | No Meter |
| Min. Temp. | 33°F |
| Operation | Continuous |
| Outlet Connection Thread Type | Press |
| Outlet Shutoff Valve Type | Quarter Turn Ball Valve |
| Outlet Size | 1/2" |
| Outlet Thread Type | Not Applicable |
| Outlet Type | Press |
| Polymer Coating | No |
| Pressure Operation | Continuous |
| Protection Type | Backpressure, Back Siphonage |
| Seat Material | Rubber |
| Series | LF007 Series |
| Strainer | No |
| Technologies | Not Applicable |
| Type | Kit |
| Valve Type | Quarter Turn Ball Valve |
Product Details
Double Check Valve Assembly, Quarter Turn Ball Valve, 1/2 Inch Size, Bronze
Related Products
| Style | Model | Body Material | Min. Temp. | Max. Working Pressure | Type | Inlet Type | Outlet Size | Outlet Type | Inlet Thread Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | LF007M1-LF-UL 1 | Lead Free Bronze | 1°C | 12.1 Bar | Kit | Female Threaded | 1" | Female Threaded | NPT | 488.73 | |
| B | LF007-OSY 2 1/2 | Cast Iron | 1°C | 12.1 Bar | Kit | Female Threaded | 2 1/2" | Female Threaded | NPT | 5,219.15 | |
| C | LF007-QT-FDA 2 1/2 | Cast Iron | 33°F | 175 psi | - | - | - | - | NPT | 6,526.05 | |
| B | LF007-OSY 3 | - | 33°F | 12.1 Bar | Kit | Female Threaded | 3" | Female Threaded | NPT | 6,004.98 | |
| C | LF007-QT-FDA 3 | Cast Iron | 33°F | - | Kit | Female Threaded | 3" | Female Threaded | - | 7,452.00 | |
| D | LF007M2-LF 1 1/4 | Lead Free Bronze | 1°C | 12.1 Bar | Kit | Female Threaded | 1 1/4" | Female Threaded | NPT | 619.31 | |
| B | LF007-DOSY 2 1/2 | Cast Iron | 0.5°C | 175 psi | Kit | Female Threaded | 2 1/2" | Female Threaded | NPT | 4,962.81 |
