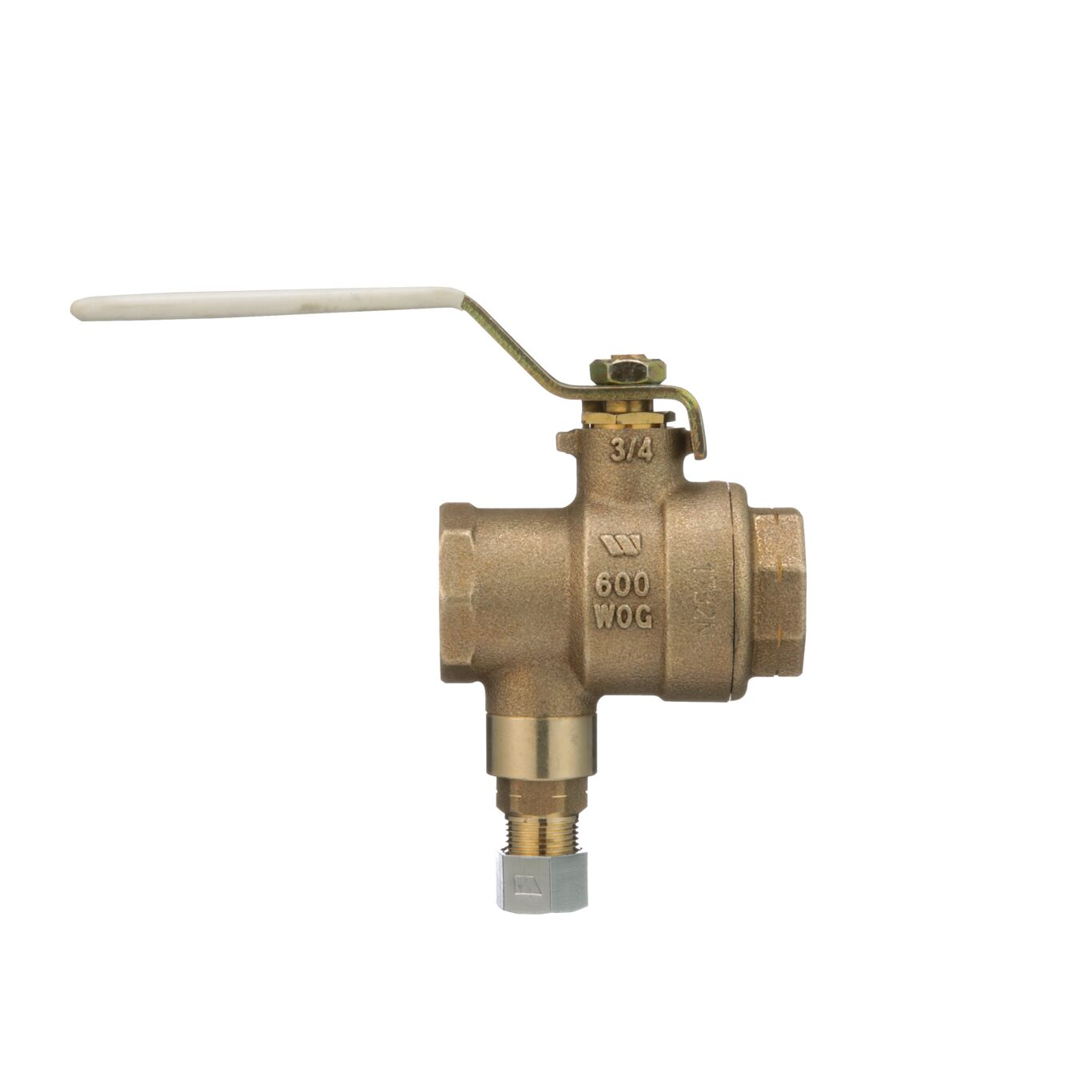

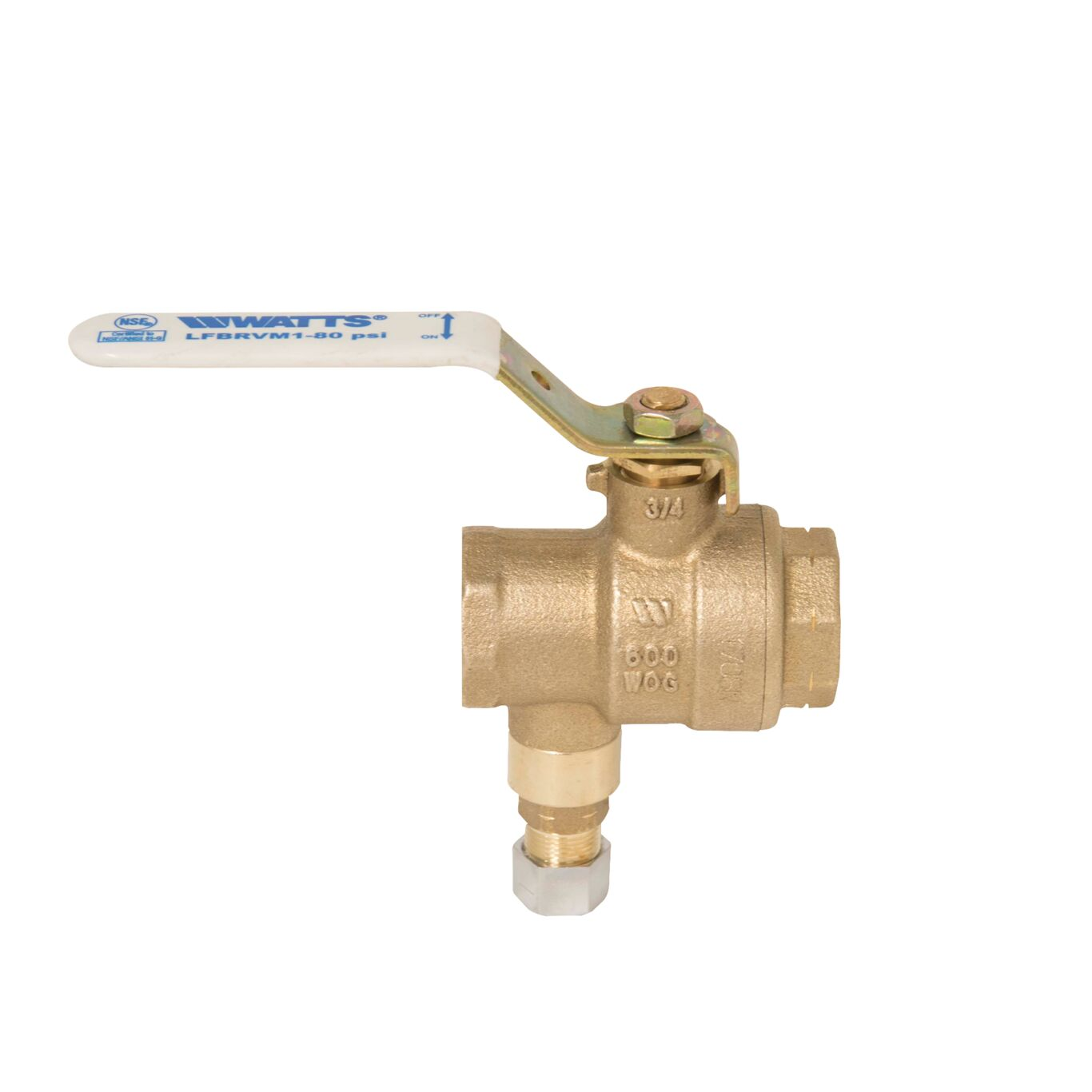

WATTS 3/4 LFBRVM1TXTXC-125 0125563 Ball And Relief Valve, 3/4 Inch Inlet, 180 Deg. F, 600 Psi Pressure
Item: CA4EEU
Model: 3/4 LFBRVM1TXTXC-125
16 In Stock
Ships within 2 days via
5.00% off
£209.54/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Item | Relief Valve |
|---|---|
| Actuation | No |
| Actuator | No |
| Application | Commercial, Residential, Water Heaters |
| Assembled | No |
| Assembled Dry | No |
| Balance Stop Plate | No |
| Ball Material | Chrome Plated Brass |
| Body Finish | Not Applicable |
| Body Material | Bronze |
| Buy American Act Compliant | No |
| Class Rating | Not Applicable |
| Connection Type | FNPT x FFPT |
| Control Type | Lever Handle |
| Cv Rating | Not Applicable |
| Disc Material | Synthetic Rubber |
| Electrical Rating | Not Applicable |
| Factory Set Pressure | 125 psi |
| For Media | Water |
| Inlet Connection Size | 3/4" |
| Inlet Size | 3/4" |
| Inlet Thread Type | NPT |
| Inlet Type | Female Threaded |
| Lead | Not Present |
| Lead Free | Yes |
| Max. Temp. | 180°F |
|---|---|
| Mfr. Series | LFBRVM1 Series |
| Min. Temp. | 40°F |
| Nsf Certifications | NSF 61 |
| Operating Pressure Range | 400 psi |
| Operating Temperature Range | 40°F to 180°F |
| Operating Torque | Not Applicable |
| Outlet Connection Thread Type | Female Threaded |
| Outlet Size | 3/4" |
| Outlet Thread Type | FPT |
| Outlet Type | Female Threaded |
| Overall Height | 4 5/8" |
| Port Type | Full |
| Seat Material | PTFE |
| Shaft Material | Brass |
| Spring Material | Stainless Steel |
| Stem Packing Material | PTFE |
| Stem Shaft Material | Brass |
| Stem Type | Bottom Loaded |
| Thrust Washer Material | PTFE |
| Valve Design | 2 Piece |
| Washer Material | PTFE |
| Wog (psi) | 600 psi |
| Wog Rating | 600 psi WOG |
| standard | CSA, IAPMO |
Product Details
Ball And Relief Valve, 3/4 Inch Inlet, 180 Deg. F, 600 Psi Pressure
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
|---|---|
| weight | 0.472500 |
Related Products
| Style | Model | Connection Type | Control Type | Inlet Size | Outlet Type | Inlet Type | Min. Temp. | Inlet Thread Type | Overall Height | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 3/4 LFBRVM1TXTXC-80 | FNPT x FFPT | Lever Handle | 3/4" | Female Threaded | Female Threaded | 40°F | NPT | 4 5/8" | 208.73 | |
| B | 3/4 LFBRVM1PXPXP-125 | Crimped x Crimped | Lever Handle | 20 mm | Crimped | Crimped | 5°C | Not Applicable | 4 9/16" | 198.22 | |
| C | 3/4 LFBRVM1SXSXP-80 | Crimped x Crimped | Lever Handle | 3/4" | Crimped | Crimped | 5°C | Not Applicable | 4 9/16" | 209.43 | |
| D | 3/4 LFBRVM1PXPXC-125 | Crimped x Crimped | Lever Handle | 3/4" | Crimped | Crimped | 40°F | Not Applicable | 4 5/8" | 197.71 | |
| E | 3/4 LBRVM1TXTXB-125 | - | Lever Handle | 3/4" | Female Threaded | Female Threaded | 40°F | NPT | - | 98.77 | |
| F | 3/4 LFBRVM1SXSXC-125 | Socket x Socket | Lever Handle | 3/4" | Socket | Socket | -40°C | Not Applicable | 4 5/8" | 198.70 | |
| G | 3/4 LFBRVM1PXPXB-125 | Pex x Pex | Tee Handle | - | - | - | - | - | 4 3/4" | 199.07 |
