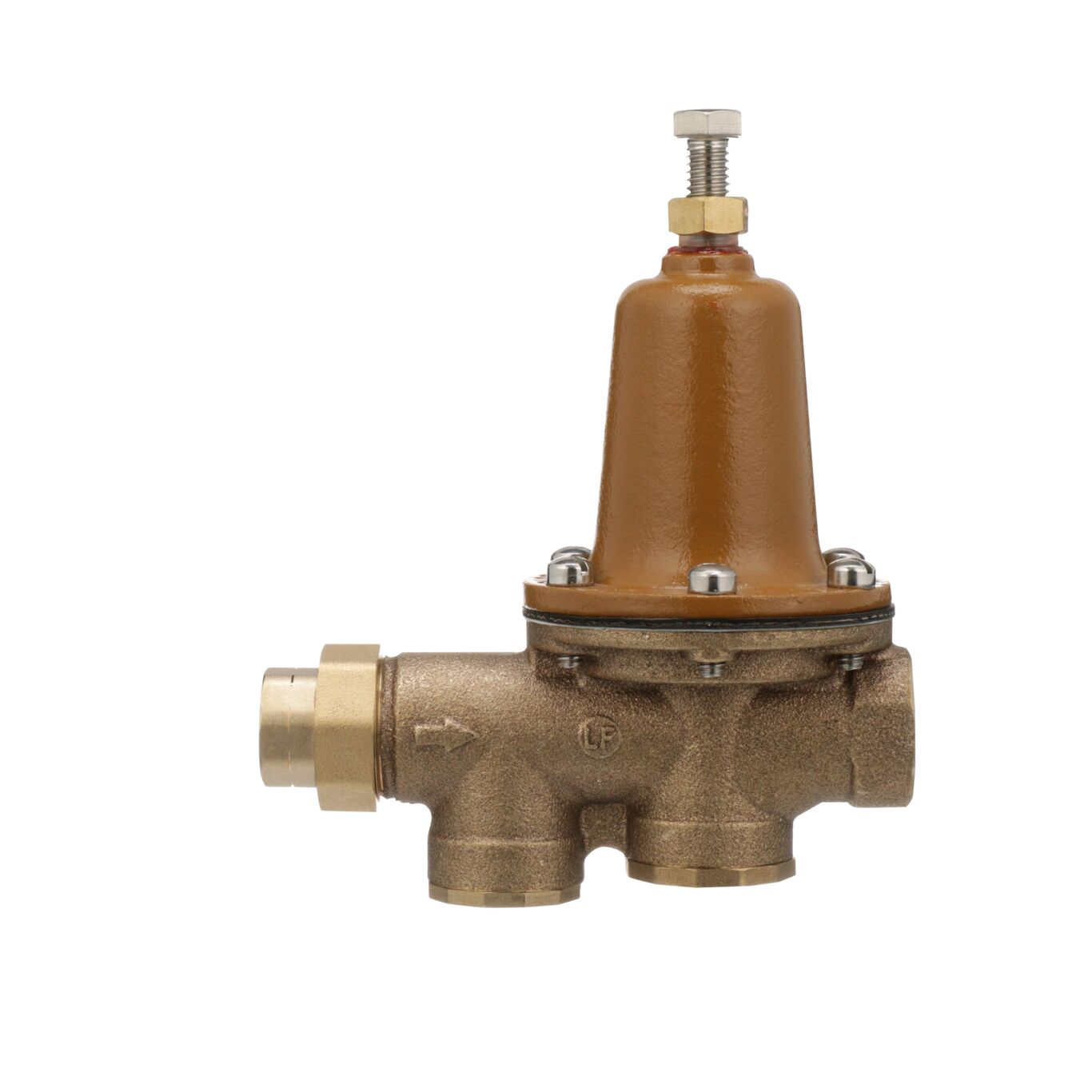

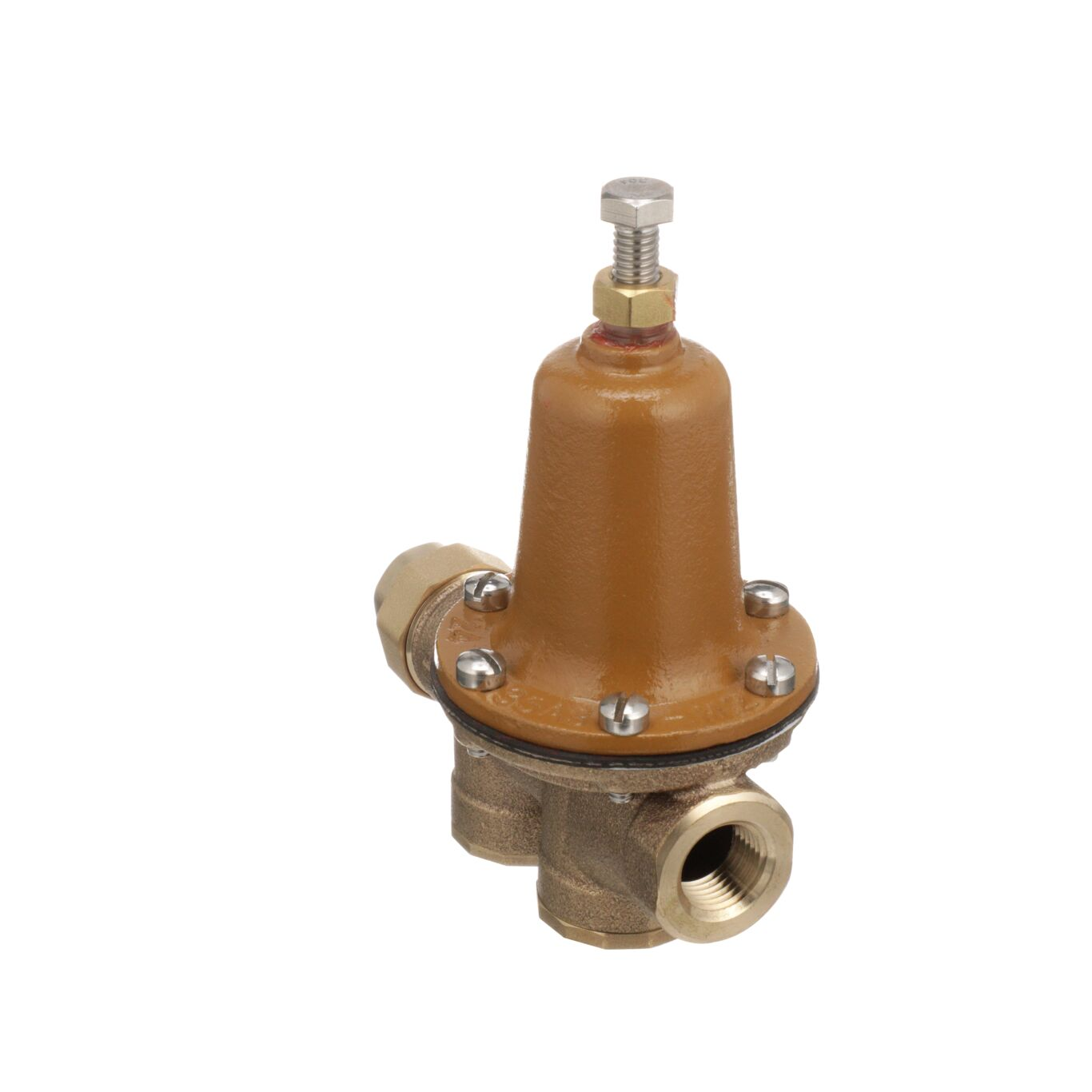

WATTS 1/2 LF 25 AUB Z3 0009217 Water Pressure Reducing Valve, NPT x NPT, 1/2 Inch Pipe Size, Copper Silicon Alloy
Item: AE3JFA
Model: 1/2 LF 25 AUB Z3
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
₹504.030000
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Adjustable Pressure Range | 25 psi to 75 psi |
|---|---|
| Application | Commercial Use, Residential Use |
| Body Material | Copper Silicon Alloy |
| Coating/lining | NSF Listed Fusion Bonded Epoxy Lining And Coating |
| Connections | NPT x NPT |
| Disc Material | EPDM |
| Factory Set Pressure | 50 psi |
| For Media | Water |
| Height | 7" |
| Includes Strainer | Strainer Included |
| Inlet Connection Size | 1/2" |
| Length | 6 3/8" |
| Low-lead Compliance | Low Lead Compliant |
| Material | Lead Free Brass |
| Max. Operating Temperature | 180°F |
| Max. Pressure | 300 psi |
|---|---|
| Max. Temp. | 160°F |
| Nsf Certifications For Food And Drinking Water | NSF 61G |
| Operating Pressure Range | 300 psi |
| Outlet Connection Size | 1/2" |
| Overall Height | 7" |
| Pipe Size | 1/2" |
| Port Design | Full Port |
| Preset Pressure Settings | 50 psi |
| Pressure Adjustment Range | 25 psi to 75 psi |
| Seat Material | Polymer |
| Strainer | Yes |
| Type | Standard |
| standard | ANSI A112.26.2, ASSE 1003, CSA B356, IAPMO, STANDARD PLUMBING CODE MILITARY STANDARD MIL-V-18146B TYPE 1 |
Product Details
Water Pressure Reducing Valve
Shipping Information
| height | 8.13 |
|---|---|
| length | 19.05 |
| width | 17.27 |
| hs code | 8481801095 |
|---|---|
| country of origin | US |
| weight | 1.449000 |
Related Products
| Style | Model | Height | Disc Material | Max. Pressure | Adjustable Reduced Pressure Range | Trim Material | Inlet Thread Type | High Pressure Reduced Pressure Range | Inlet Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 3/4 LF 25 AUB-Z3 | 8" | EPDM | 300 psi | - | - | - | - | - | 459.03 | |
| B | 1 LF 25AUB-Z3 | 9" | EPDM | 300 psi | 1.7 Bar to 5.2 Bar | Not Applicable | NPT | Not Applicable | - | 666.67 | |
| C | 11/4 LF 25AUBZ3 | 9 1/2" | EPDM | 300 psi | - | - | - | - | - | 1,127.74 | |
| D | 11/2 LF 25AUBZ3 | 9 1/2" | EPDM | - | - | - | - | - | - | 1,555.39 | |
| E | 1/2 LF25AUB-GG-Z3 | 9.437" | EPDM | 300 psi | - | - | - | - | - | 386.26 | |
| F | 3/4 LF25AUB-GG-Z3 | 9.437" | EPDM | 300 psi | - | - | - | - | - | 392.87 | |
| E | 2 LF25AUB-GG-Z3 | 13.688" | EPDM | 300 psi | - | - | - | - | - | 1,337.06 |
