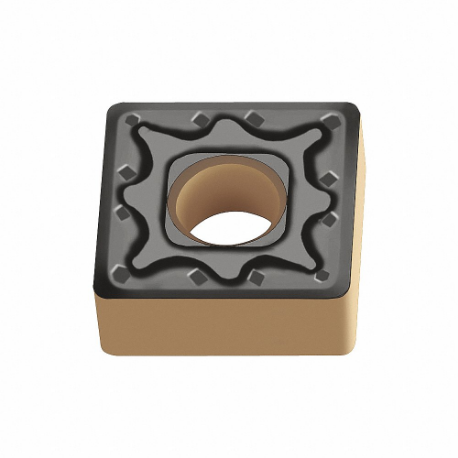

WALTER TOOLS SNMG120408-NM4 WSM10 Square Turning Insert, 1/2 Inch Inscribed Circle, Neutral, 1/32 Inch Corner Radius

Item: CU9PLM
Model: SNMG120408-NM4 WSM10
9 In Stock

Ships within 2 days via

£31.58
5.00% off
£30.01/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ansi Code SNMG432-NM4
Chip-breaker Yes
Chip-breaker Code NM4
Clearance Angle 0°
Coating Process PVD
Corner Radius 1/32"
Cutting Application Turning
Cutting Direction Neutral
Cutting Edge Length 12.7 mm
Finish - Machining Tialn+Al2O3+Zrn
Included Angle 90°
Inscribed Circle 1/2"
Insert Code SNMG432
Insert Holding Type Straight Hole
Insert Style SNMG
Iso Number SNMG120408-NM4
Manufacturer Grade Wsm10
Material Carbide
Material - Machining Carbide
Measurement System Fractional Inch
Number Of Cutting Edges 4
Primary Material Application Nickel, Stainless Steel, Titanium
Primary Material Application Iso Code M, S
Rake Negative
Shape Square
System Of Measurement Imperial
Thickness 3/16"

Product Details

Shipping Information

Height 2.54
Length 2.54
Width 2.54
Country Of Origin DE
Weight 0.009000
