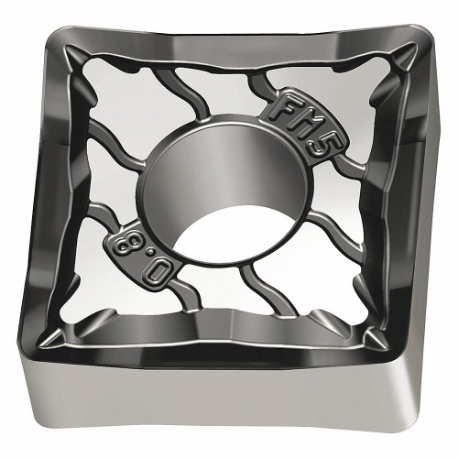

WALTER TOOLS SNMG120408-FM5 WSM10S 7091920 Square Turning Insert, 1/2 Inch Inscribed Circle, Neutral, 1/32 Inch Corner Radius

Item: CU9PLV
Model: SNMG120408-FM5 WSM10S
25 In Stock

Ships within 2 days via

£33.55
5.00% off
£31.87/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ansi Code SNMG432-FM5
Chip-breaker Yes
Chip-breaker Code FM5
Clearance Angle 0°
Coating Process PVD
Corner Radius 1/32"
Cutting Application Turning
Cutting Depth 0.4 mm to 1.5 mm
Cutting Direction Neutral
Cutting Edge Length 12.7 mm
Finish - Machining Tialn+Al2O3+Al
Included Angle 90°
Inscribed Circle 1/2"
Insert Code SNMG432
Insert Holding Type Straight Hole
Insert Style SNMG
Iso Number SNMG120408-FM5
Manufacturer Grade Wsm10S
Material Carbide
Material - Machining Carbide
Measurement System Fractional Inch
Number Of Cutting Edges 8
Primary Material Application Nickel, Stainless Steel, Titanium
Primary Material Application Iso Code M, S
Rake Negative
Shape Square
System Of Measurement Imperial
Thickness 3/16"
Cutting Speed 390 SFPM to 600 SFPM
Dia. Of Inscribed Circle 1/2"
Feed Rate 0.003" to 0.008"
Insert Thickness 0.188"
Major Clearance Angle 0°
No. Of Cutting Edges 8
Radius 0.031"

Product Details

Shipping Information

Height 2.54
Length 2.54
Width 2.54
Country Of Origin DE
Weight 0.090000
