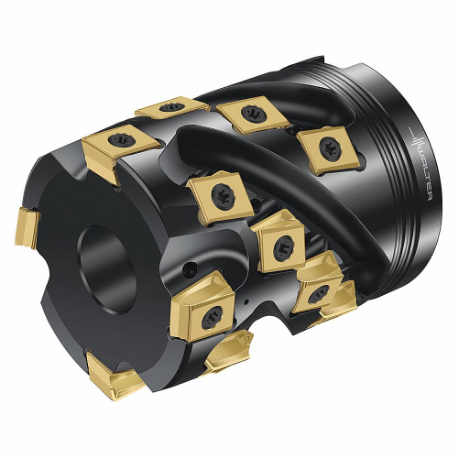

WALTER TOOLS F5138.B27.063.Z04.56 6365030 Indexable Face Mill, 2.4800 Inch Max. Cutting Dia, 1.0630 Inch Arbor Dia

Item: CU8JJF
Model: F5138.B27.063.Z04.56
18 In Stock

Ships within 2 days via

£2745.6
5.00% off
£2608.31/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ansi Code F5138.B27.063.Z04.56
Arbor Dia. 1.063"
Coolant Fed Coolant Through
Cutting Depth 2.205"
Features 4 Cutting Edges Per Indexable Insert, Full Effective Design, Tangential Arrangement
Hub Outside Dia. 2.37"
Iso Number F5138.B27.063.Z04.56
Max. Cutting Dia. 2 12/25"
Max. Speed 18000 RPM
Overall Length 3.15"
Standard Logo iso.png
Standards Iso 6462-A (Hexagon Socket Head Cap Screw)
Connection Dia. 1.063"
Cutting Edge Dia. 2 12/25"
Cutting Edge Length 2.205"
Max. Projection Length 3.15"
No. Of Indexable Inserts Face 4
No. Of Indexable Inserts Peripheral 16
No. Of Teeth 4

Product Details

Indexable Face Mill

Shipping Information

height 2.54
length 8
width 2.54
country of origin TW
weight 1.177600
