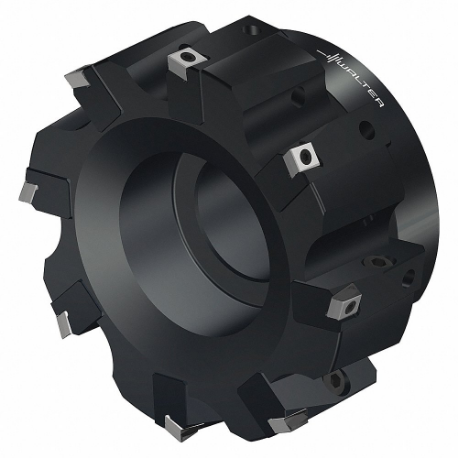

WALTER TOOLS F2010.B.125.Z08.08.R751M 6583203 Indexable Face Mill, 1.5750 Inch Arbor Dia, 90 Deg. Side Cutting Edge Angle
Item: CU8HZJ
Model: F2010.B.125.Z08.08.R751M
9 In Stock
Ships within 2 days via
5.00% off
£3063.26/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Ansi Code | F2010.B.125.Z08.08.R751M |
|---|---|
| Arbor Dia. | 1.575" |
| Coolant Fed | Non Coolant Through |
| Cutting Application | Shoulder Milling |
| Cutting Depth | 0.315" |
| Iso Number | F2010.B.125.Z08.08.R751M |
| Max. Speed | 5400 RPM |
| Min. Cutting Dia. | 4.921" |
| Number Of Inserts | 8 |
| Overall Length | 2 12/25" |
|---|---|
| Side Cutting Edge Angle | 90° |
| Standards | Iso 6462-A (Hexagon Socket Head Cap Screw) |
| Connection Dia. | 1.575" |
| Cutting Edge Dia. | 4.921" |
| Cutting Edge Length | 0.315" |
| Max. Projection Length | 2 12/25" |
| No. Of Indexable Inserts | 8 |
| No. Of Teeth | 8 |
Product Details
Shipping Information
| Height | 2.54 |
|---|---|
| Length | 6.3 |
| Width | 2.54 |
| Country Of Origin | NL |
|---|---|
| Weight | 3.472200 |
