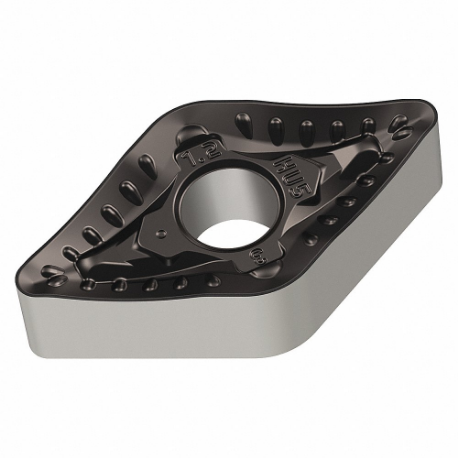

WALTER TOOLS DNMM150608-HU5 WMP20S 7583851 Diamond Turning Insert, Neutral, 1/4 Inch Thick, 1/32 Inch Corner Radius

Item: CU9NAP
Model: DNMM150608-HU5 WMP20S
19 In Stock

Ships within 2 days via

320 sfm to 560 sfm
0.010" to 0.018"
£41.47
5.00% off
£39.41/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ansi Code DNMM442-HU5
Chip-breaker Yes
Chip-breaker Code HU5
Clearance Angle 0°
Coating Process CVD
Corner Radius 1/32"
Cutting Direction Neutral
Cutting Edge Length 15.5 mm
Finish - Machining Ticn+Al2O3+(Ticn)
Included Angle 55°
Inscribed Circle 1/2"
Insert Code DNMM442
Insert Style DNMM
Iso Number DNMM150608-HU5
Manufacturer Grade WMP20S
Material - Machining Carbide
Measurement System Fractional Inch
Rake Negative
Shape Diamond
System Of Measurement Imperial
Thickness 1/4"
Through Hole Inside Dia. 13/64"
Cutting Speed 320 SFPM to 560 SFPM
Depth Of Cut 0.039" to 0.197"
Dia. Of Inscribed Circle 1/2"
Feed Rate 0.01" to 0.018"
Insert Thickness 1/4"
Major Clearance Angle 0°
No. Of Cutting Edges 2
Radius 0.031"

Product Details

Turning Insert

Shipping Information

height 2.54
length 2.54
width 2.54
country of origin DE
weight 0.139500
