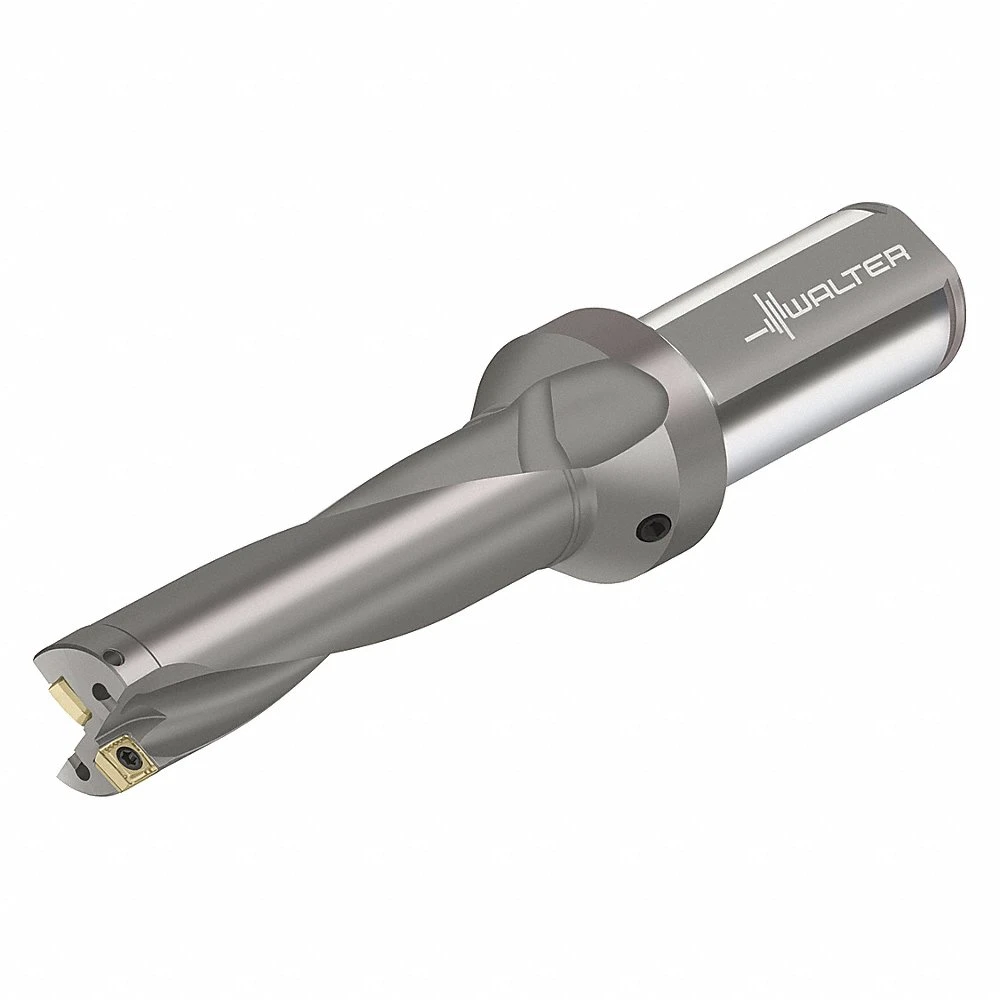

WALTER TOOLS D4120-04-18.00F25-P42 6929355 Indexable Drill Bit For General Drilling
Item: CU8HHZ
Model: D4120-04-18.00F25-P42
18 In Stock
Ships within 2 days via
2.847"
5.00% off
£1105.04/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ansi Code | D4120-04-18.00F25-P42 |
|---|---|
| Ansi Number | D4120-04-18.00F25-P42 |
| Depth X Dia. Ratio | 4xd |
| Flute Length | 92.2 mm |
| Iso Number | D4120-04-18.00F25-P42 |
| Max. Drilling Depth | 72 mm |
| Overall Length | 153 mm |
| Shank Dia. | 25 mm |
| Shank Length | 56 mm |
|---|---|
| Toolholder Style | D4120 |
| Connection Dia. | 0.984" |
| Cutting Edge Dia. | 0.709" |
| Cutting Edge Length | 2.847" |
| Flange Dia. | 1.378" |
| Max. Projection Length | 3.819" |
| No. Of Indexable Inserts | 1 |
Product Details
Indexable Drill
Shipping Information
| height | 2.54 |
|---|---|
| length | 15.3 |
| width | 2.54 |
| country of origin | DE |
|---|---|
| weight | 0.451400 |
Related Products
| Style | Model | Ansi Number | Iso Number | Shank Dia. | Toolholder Style | Overall Length | Flute Length | Shank Length | Depth X Dia. Ratio | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | D3120-02-16.00F25-P21 | D3120-02-16.00F25-P21 | D3120-02-16.00F25-P21 | 25 mm | D3120 | 113 mm | 49 mm | 56 mm | 2xd | 918.30 | |
| B | B4213.N8.065.Z1.195R-5 | B4213.N8.065.Z1.195R-5 | B4213.N8.065.Z1.195R-5 | 80 mm | B4213 | - | 225 mm | - | 3xd | - |
RFQ
|
| C | D3120-04-36.00F32-P24 | D3120-04-36.00F32-P24 | D3120-04-36.00F32-P24 | 32 mm | D3120 | 236 mm | 168 mm | 60 mm | 4xd | 1,399.46 | |
| A | D3120-02-24.00F25-P22 | D3120-02-24.00F25-P22 | D3120-02-24.00F25-P22 | 25 mm | D3120 | 129 mm | 65 mm | 56 mm | 2xd | 1,015.17 | |
| C | D3120-04-26.00F32-P23 | D3120-04-26.00F32-P23 | D3120-04-26.00F32-P23 | 32 mm | D3120 | 196 mm | 128 mm | 60 mm | 4xd | 1,231.71 | |
| D | B3212.DF.13,0.Z01.26R | B3212.DF.13, 0.Z01.26R | B3212.DF.13,0.Z01.26R | 16 mm | B3212 | 88 mm | 35 mm | 48 mm | 2xd | 918.30 | |
| E | D4120-04-17.00F25-P42 | D4120-04-17.00F25-P42 | D4120-04-17.00F25-P42 | 25 mm | D4120 | 149 mm | 88.4 mm | 56 mm | 4xd | 1,140.39 |
