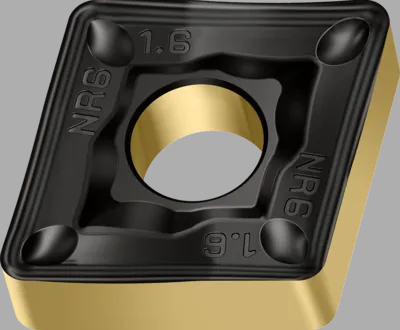

| Ansi Code | CNMM644-NR6 WPP10 |
|---|---|
| Chip-breaker | Yes |
| Chip-breaker Code | NR6 |
| Clearance Angle | 0° |
| Corner Radius | 1/16" |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Cutting Edge Length | 19.34 mm |
| Finish - Machining | Ticn+Al2O3+Tin |
| Included Angle | 80° |
| Inscribed Circle | 3/4" |
| Insert Code | CNMM644 |
| Insert Holding Type | Straight Hole |
| Insert Style | CNMM |
| Iso Number | CNMM190616-NR6 WPP10 |
| Manufacturer Grade | Wpp10 |
| Material | Carbide |
| Material - Machining | Carbide |
|---|---|
| Measurement System | Fractional Inch |
| Number Of Cutting Edges | 2 |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Rake | Negative |
| Shape | Rhombic |
| System Of Measurement | Imperial |
| Thickness | 1/4" |
| Depth Of Cut | 0.079" to 0.394" |
| Dia. Of Inscribed Circle | 3/4" |
| Feed Rate | 0.018" to 0.035" |
| Insert Thickness | 1/4" |
| Major Clearance Angle | 0° |
| No. Of Cutting Edges | 2 |
| Radius | 0.063" |
Turning Insert
| country of origin | DE |
|---|
| weight | 0.256500 |
|---|
| Style | Model | Insert Code | Corner Radius | Clearance Angle | Cutting Direction | Insert Style | Thickness | Inscribed Circle | Chip-breaker Code | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | CCGT060202-X5 WTP35 | CCGT.5 | 0.008" | 7° | Neutral | CCGT | - | - | X5 | 34.46 | |
| A | CCGT060202-X5 WAK15 | CCGT.5 | 0.008" | 7° | Neutral | CCGT | - | - | X5 | 34.09 | |
| B | CCGT060202-X15 WTP35 | CCGT.5 | 0.008" | 7° | Neutral | CCGT | - | - | X15 | 34.46 | |
| B | CCGT060202-X15 WXM15 | CCGT.5 | 0.008" | - | Neutral | CCGT | - | - | X15 | 34.09 | |
| A | CCGT060204-X5 WTP35 | CCGT1 | 1/64" | 7° | Neutral | CCGT | - | - | X5 | 34.59 | |
| B | CCGT060204-X15 WXM15 | CCGT1 | 1/64" | - | Neutral | CCGT | - | - | X15 | 33.69 | |
| A | CCGT060204-X5 WXM15 | CCGT1 | 1/64" | 7° | Neutral | CCGT | - | - | X5 | 34.09 |
