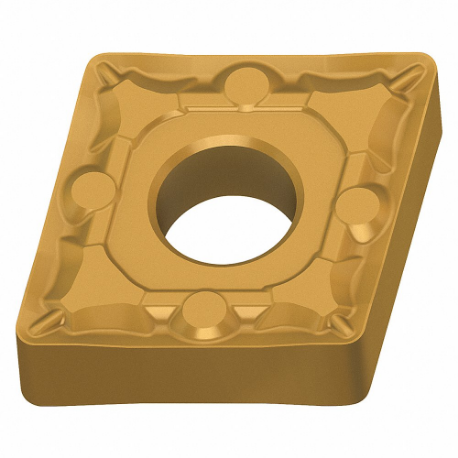

| Ansi Code | CNMG432-FV5 WPV20 |
|---|---|
| Chip-breaker | Yes |
| Chip-breaker Code | FV5 |
| Clearance Angle | 0° |
| Corner Radius | 1/32" |
| Cutting Application | Turning |
| Cutting Depth | 0.4 mm to 2 mm |
| Cutting Direction | Neutral |
| Cutting Edge Length | 12.9 mm |
| Finish - Machining | Ticn+Al2O3+Tin |
| Included Angle | 80° |
| Inscribed Circle | 1/2" |
| Insert Code | CNMG432 |
| Insert Holding Type | Straight Hole |
| Insert Style | CNMG |
| Iso Number | CNMG120408-FV5 WPV20 |
| Manufacturer Grade | Wpv20 |
| Material | Carbide |
|---|---|
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Number Of Cutting Edges | 4 |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Rake | Negative |
| Shape | Rhombic |
| System Of Measurement | Imperial |
| Thickness | 3/16" |
| Cutting Speed | 560 SFPM to 920 SFPM |
| Dia. Of Inscribed Circle | 1/2" |
| Feed Rate | 0.003" to 0.01" |
| Insert Thickness | 0.188" |
| Major Clearance Angle | 0° |
| No. Of Cutting Edges | 4 |
| Radius | 0.031" |
| Height | 2.54 |
|---|---|
| Length | 2.54 |
| Width | 2.54 |
| Country Of Origin | DE |
|---|---|
| Weight | 0.049500 |
| Style | Model | Insert Code | Corner Radius | Clearance Angle | Cutting Direction | Insert Style | Thickness | Inscribed Circle | Chip-breaker Code | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | CCGT060202-X5 WTP35 | CCGT.5 | 0.008" | 7° | Neutral | CCGT | - | - | X5 | 34.46 | |
| A | CCGT060202-X5 WAK15 | CCGT.5 | 0.008" | 7° | Neutral | CCGT | - | - | X5 | 34.09 | |
| B | CCGT060202-X15 WTP35 | CCGT.5 | 0.008" | 7° | Neutral | CCGT | - | - | X15 | 34.46 | |
| B | CCGT060202-X15 WXM15 | CCGT.5 | 0.008" | - | Neutral | CCGT | - | - | X15 | 34.09 | |
| A | CCGT060204-X5 WTP35 | CCGT1 | 1/64" | 7° | Neutral | CCGT | - | - | X5 | 34.59 | |
| B | CCGT060204-X15 WXM15 | CCGT1 | 1/64" | - | Neutral | CCGT | - | - | X15 | 33.69 | |
| A | CCGT060204-X5 WXM15 | CCGT1 | 1/64" | 7° | Neutral | CCGT | - | - | X5 | 34.09 |
