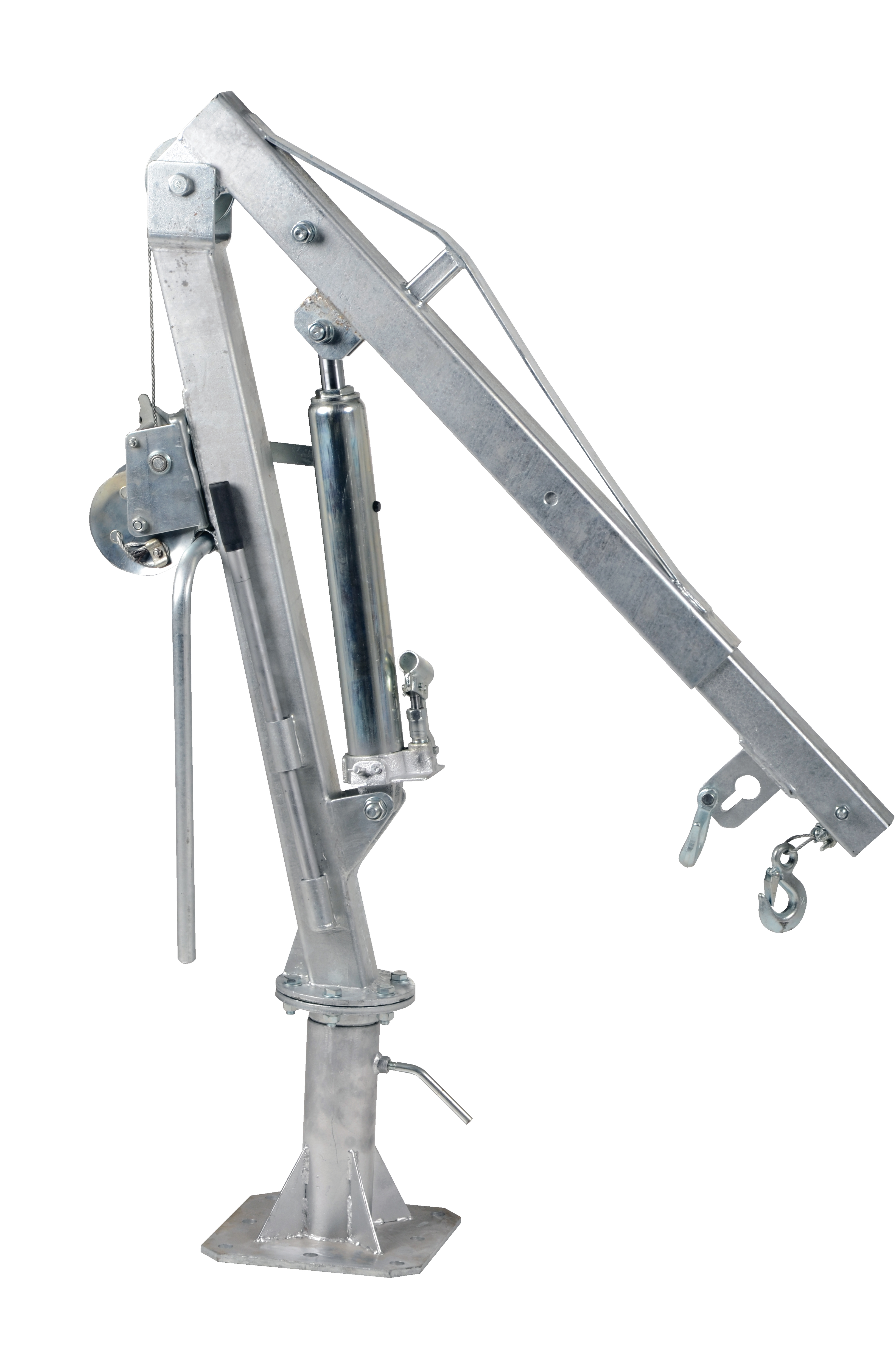

| Item | Jib Crane |
| Base Height | 11 1/2" |
| Base Length | 11" |
| Base Width | 11" |
| Body Finish | Galvanized |
| Body Material | Steel |
| Boom Length Adjustability | Expandable |
| Cable Dia. | 1/4" |
| Cable Retracts/extension Per Crank | 1 1/2" |
| Cable Winch Capacity | 500 lbs. |
| Color | Gray |
| Compatible Base Manufacturer Part Number | Not Applicable |
| Control Type | Manual Handle |
| Depth | 11" |
| Extended Capacity | 500 lbs. |
| Extended Length | 52" |
| Extended Max. Hook Height | 99" |
| Extended Min. Hook Height | 0.0" |
| Extended Usable Reach | 52" |
| Finish | Galvanized |
| Height | 59 1/2" |
| Height Under Boom | 48" |
| Includes | Chain Slot Lock, Grab Hook, Sling Hook With Latch |
| Length | 11" |
| Mast Dia. | 3" |
| Mast Weight | Not Applicable |
| Material | Steel |
| Maximum Adjustable Boom Length | 52" |
| Minimum Adjustable Boom Length | 30 1/2" |
| Mobility | Stationary |
| Mounting Plate Length | 11" |
| Mounting Plate Width | 11" |
| Mounting Type | Base Mounted |
| Number Of Cranks To Retract/extend Cable | 72 |
| Operation Mode | Manual |
| Overall Cable Length | 32 ft. |
| Overall Fixed Boom Length | Not Applicable |
| Overall Height | 59 1/2" |
| Piston Stroke | 16 3/8" |
| Piston Stroke Per Pump | 0.062" |
| Power Source | Manual |
| Retracted Capacity | 1000 lbs. |
| Retracted Length | 30 1/2" |
| Retracted Max. Hook Height | 84" |
| Retracted Min. Hook Height | 12 1/2" |
| Retracted Usable Reach | 30 1/2" |
| Rotation | 360° |
| Usable Cable Length | 24 ft. |
| Width | 32.9" |
| Included Base Type | Pedestal |
| Included Components | 3/16" x 32 ft Steel Cable, Chain Slot Lock, Lifting Hook, Pedestal Mount Base, Safety Latch Hook |
| Mast Diameter | 3" |
| Maximum Lifting Height | 7.2 ft. |
| Minimum Lifting Height | 0" |
| Overall Depth | 11" |
| Overall Width | 32.9" |
| Ship weight (kg) | 60.3 |
| Ship height (cm) | 43.18 |
| Ship length (cm) | 165.1 |
| Ship width (cm) | 30.48 |
| HS code | 8426910000 |
| Country of Origin | CN |
| Product | Model | Base Height | Base Length | Base Width | Capacity | Color | Depth | Extended Capacity | Extended Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
WTJ-4 | 12 1/4" | 11" | 11" | - | Yellow | 10.625" | 1000 lbs. | 44" | £697.22 | RFQ
|
 |
WTJ-4-G | 11 1/2" | 11" | 11" | - | Gray | 11" | 1000 lbs. | 52" | £1,126.66 | |
 |
WTJ-2 | 11 3/4" | 10.63" | 10.63" | 500 lbs. | Yellow | 10.625" | - | 54" | £640.25 | RFQ
|
 |
WTJ-2-DC | 11 1/2" | 11" | 11" | - | Yellow | 11" | 500 lbs. | 54" | £1,292.83 | RFQ
|
 |
WTJ-2-G-DC | 11 1/2" | 11" | 11" | - | Gray | 11" | 500 lbs. | 52" | £1,572.53 | |
 |
WTJ-2-SS | 11 1/2" | 11" | 11" | - | Silver | 11" | 500 lbs. | 52" | £3,592.20 | |
 |
WTJ-4-DC | 12 1/4" | 11" | 11" | 1000 lbs. | Yellow | 20" | 1000 lbs. | 44" | £1,518.92 |
