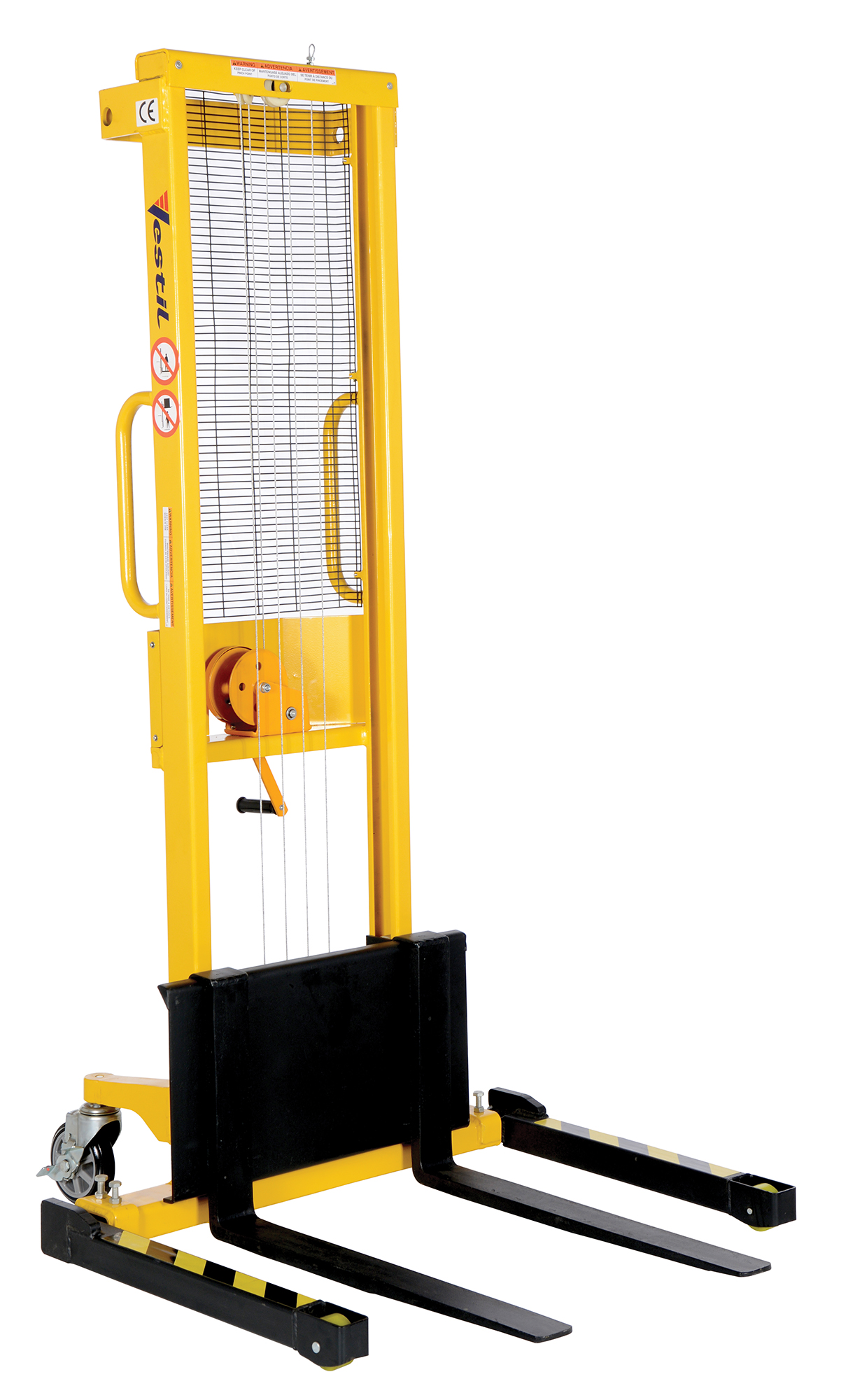

VESTIL VWS-770-AA Stacker With Adjustable Manual Hand Winch, 770 lb., Black/Yellow, Steel

Item: AG8CCP Model: VWS-770-AA
See variants (1)
Call for Availability

Get it by May 16, Thursday

£1,895.74 /unit (Inc. VAT)
Trade Prices Available
REQUEST A QUOTE

Payment Methods

Delivery Partners

How NET30 Works

Step 1 Add the items into your cart or submit a Purchase order

Step 2 Checkout, select NET30 payment (provide company registration and VAT number)

Step 3 Delivery via TNT or Royal Mail and receive invoice for payment in 30-days

Step 4 Make payment via BACS to our factoring partner,

Product Specifications:

ItemStacker
Adjustable ForksYes
Adjustable LegsYes
Capacity770 lbs.
ColorBlack, Yellow
Fork Length30"
Fork Width3.13"
Frame MaterialSteel
Front Caster Dia.4"
Front Caster MaterialPoly on Poly
Front Wheel Dia.4"
Height78.19"
Horizontal Load Center16"
IncludesOperation Hand Winch
Leg TypeStraddle
Leg Width2.38"
Length47"
Lift per Handle Revolution3/4"
Lifting Height Max.59"
Load Capacity770 lbs.
Lowered Height1 9/16"
MaterialSteel
Max. Fork Outside Dia.26 3/4"
Max. Inside Dia.47-1/4"
Max. Leg Inside Dia.47 1/4"
Max. Outside Dia.26-3/4"
Max. Travel Distance57.4375"
Max. Width Between Forks26.75"
Max. Width Between legs54"
Min. Fork Outside Dia.6 1/4"
Min. Inside Dia.35-1/2"
Min. Leg Inside Dia.35 1/2"
Min. Lift Height1.56"
Min. Outside Dia.6-1/4"
Min. Width Between Forks6.25"
Min. Width Between legs42.25"
Number of Casters4
OperationHand Winch
Overall Depth47"
Power SourceManual
Raised Height59"
Rear Caster Dia.5.9"
Rear Caster MaterialPoly on Poly
Width42.25"

Shipping Info:

Ship weight (kg) 162.45
Ship height (cm)198.12
Ship length (cm)116.84
Ship width (cm)106.68
HS code8428900290
Country of OriginCN

Working Mechanism:

  • Adjust the legs to provide the desired wheelbase and lock the caster.
  • Manoeuver from the operator's position near the intended load.
  • Return the lifter to its storage location.
  • Then engage the brakes, fold the winch handle, fully lower the forks and set the handle latch pin to lock the winch handle.

Compatible Accessories:

Standards and Approvals:

  • OSHA

Frequently Asked Questions:

Q. What does the suffix AA stand for?

A. The AA suffix stands for adjustable forks that are suitable with pallets and skids.

Q. What are the points to consider while using the stacker?

A.

  • Before engaging the load, make sure that the forks fit within the fork pockets.
  • Lower the forks completely to let the forks glide into the skid's fork pockets.
  • Confirm that the skid plus the net weight of the load does not exceed the stacker capacity.

Q. What is the platform made of?

A. The platform is constructed of chromed steel having a 9-gauge thickness.

Q. What is the distance from the wheel base to the end of the fork?

A. The distance from the wheel base to the end of the fork is 12 inches.

Documentation:

Datasheet

Product Variants

ProductModelWidthLeg WidthLengthMax. Travel DistanceMin. Lift HeightMin. Width Between ForksMin. Width Between legsOverall DepthPrice
VESTIL VWS-770-FF Stacker With Fixed Manual Hand Winch, 770 lb., Black/Yellow, Steel | AG8CCR
 VWS-770-FF21.69"4"46.19"55.4"3.6"20.68"21.18"46.1875"£1,837.55
