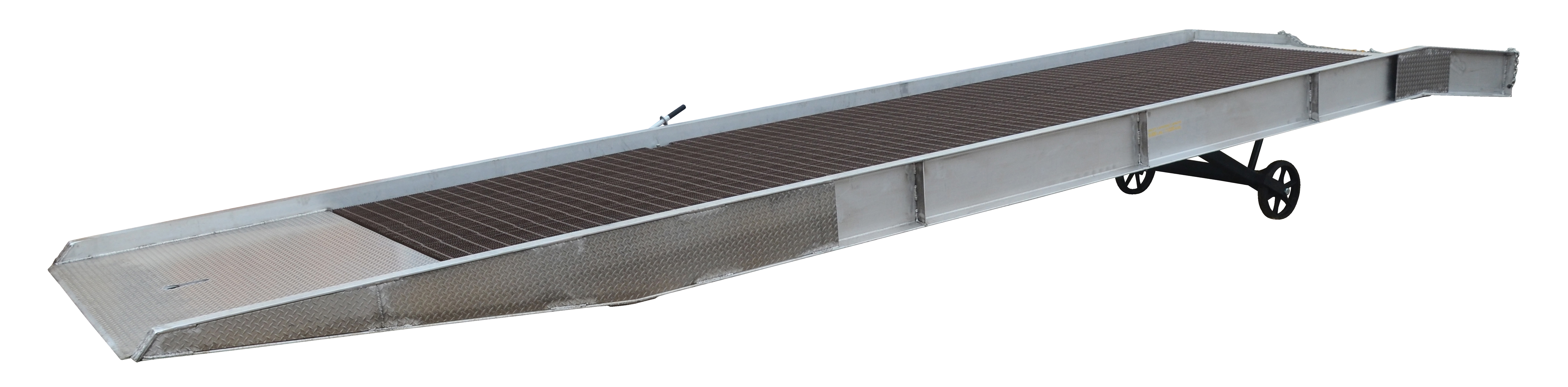

Item | Mini Ramp |
Capacity | 16000 lbs. |
Color | Black, Silver |
Curb Height (In.) | 4" |
Deck Type | Steel Bar Grating |
Depth | 432" |
Distance Between Curbs | 66" |
Height | 45" |
Height Adjustment Method | Hand Crank |
Hydraulic Lift Power | Hand Pump |
Length | 432" |
Lowered Height | 45" |
Material | Aluminum, Steel |
Max. Height | 62" |
Measuring Units | EACH |
Min. Height | 45" |
Overall Length | 36 ft. |
Raised Height | 62" |
Ramp Frame Material | Aluminum |
Ramp Grate Material | Steel |
Safety Chains | Yes |
Tire Size | 18" |
Tire Thickness | 5" |
Tow Bar | Yes |
UPC | 691215049009 |
Usable Lip Support Edge | 13.5" |
Usable Width | 66" |
Wheel Dia. | 18" |
Wheel Material | Mold on Rubber |
Wheel Width | 5" |
Width | 74" |
Ship weight (kg) | 1831.95 |
Ship height (cm) | 114.3 |
Ship length (cm) | 1097.28 |
Ship width (cm) | 187.96 |
HS code | 8428900290 |
Country of Origin | US |
Product | Model | Capacity | Depth | Distance Between Curbs | Overall Length | Width | Price | |
---|---|---|---|---|---|---|---|---|
SY-167230 | 16000 lbs. | 360" | 66" | 30 ft. | 74" | £21,901.94 | ||
SY-168430 | 16000 lbs. | 360" | 78" | 30 ft. | 86" | £23,326.70 | ||
SY-168436-L | 16000 lbs. | 432" | 78" | 36 ft. | 86" | £27,450.07 | ||
SY-169330 | 16000 lbs. | 360" | 87" | 30 ft. | 95" | £26,446.44 | ||
SY-169336-L | 16000 lbs. | 432" | 87" | 36 ft. | 95" | £36,985.82 | ||
SY-207230 | 20000 lbs. | 360" | 66" | 30 ft. | 74" | £23,724.68 | ||
SY-207236-L | 20000 lbs. | 432" | 66" | 36 ft. | 74" | £26,845.66 |
