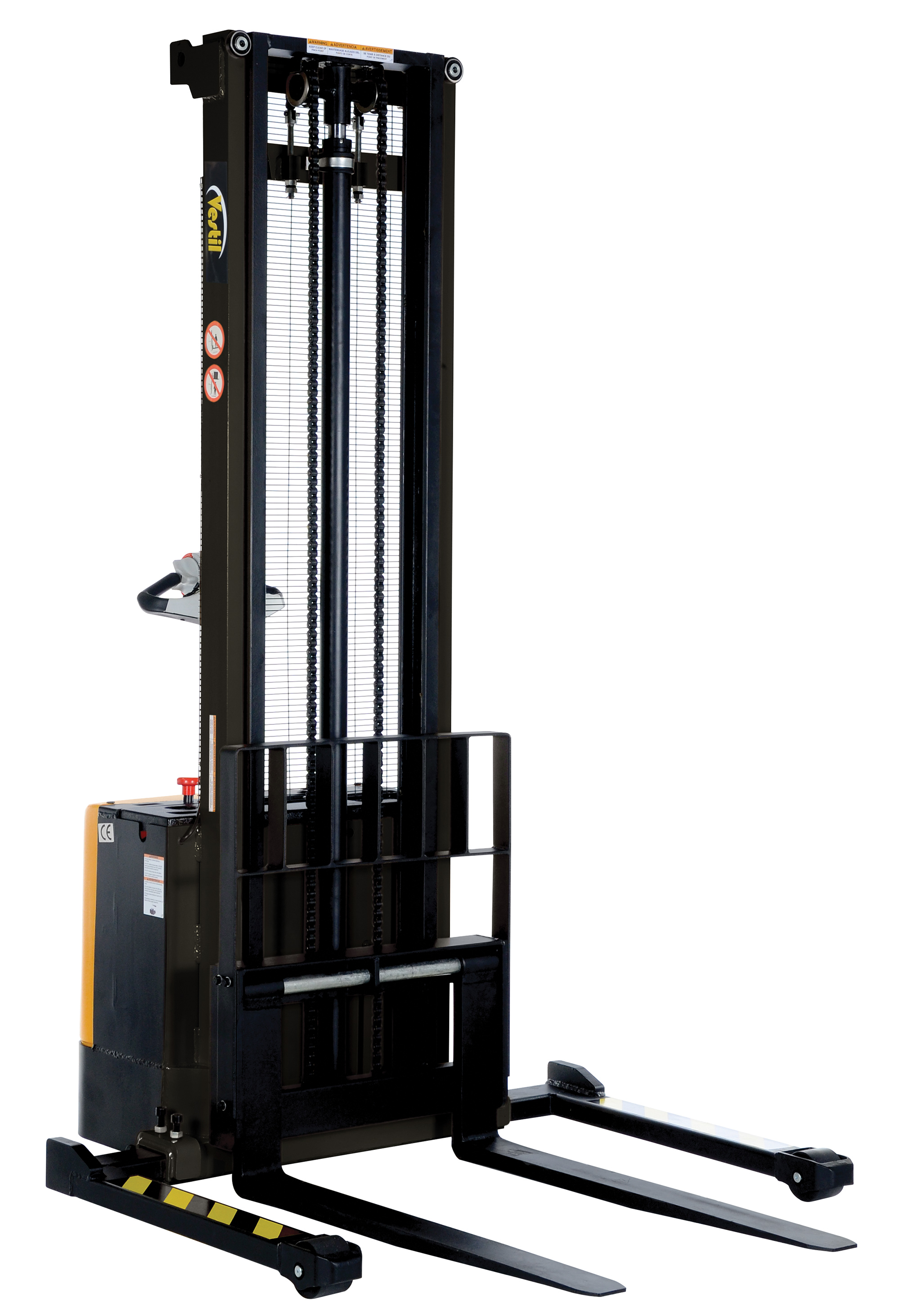

Item | Stacker |
Adjustable Forks | Yes |
Adjustable Legs | Yes |
Battery | (2)12V DC |
Battery Size | 11 |
Battery Voltage | 12V |
Capacity | 2000 lbs. |
Caster Material | Poly on Steel |
Charger | 24V DC |
Charger Voltage | 24V DC |
Color | Black, Yellow |
Drive Caster Dia. | 9 7/8" |
Drive Caster Width | 3 1/8" |
Fork Length | 42" |
Fork Width | 4" |
Fork Width Range | 8 3/8" to 26 3/4" |
Frame Material | Steel |
Front Caster Dia. | 4" |
Front Caster Material | Poly on Steel |
Front Caster Width | 2.9" |
Height | 171.81" |
HP | 2 hp |
Includes | Battery Charger |
Leg Width | 4" |
Leg Width Range | 49 1/4" to 57 7/8" |
Length | 68.88" |
Lifting Height Max. | 150" |
Load Capacity | 2000 lbs. |
Lowered Height | 2 1/8" |
Material | Steel |
Max. Travel Distance | 147.875" |
Max. Width Between Forks | 26.75" |
Max. Width Between legs | 57.88" |
Measuring Units | EACH |
Min. Lift Height | 2.13" |
Min. Width Between Forks | 8.38" |
Min. Width Between legs | 49.25" |
Motor Type | DC 24V |
Motor Voltage | 24V DC |
Number of Batteries | 2 |
Number of Casters | 5 |
Number of Drive Caster | 1 |
Number of Front Caster | 2 |
Number of Stabilizer Caster | 2 |
Operation at Full Charge | 3 to 4 hrs. |
Operation at Full Charge when Used Intermittently | 8 hrs. |
Phase | Not Applicable |
Power Source | Battery Operated |
Raised Height | 150" |
Rear Caster Dia. | 3" |
Rear Caster Material | Poly on Steel |
Stabilizer Caster Dia. | 3" |
Stabilizer Caster Width | 1 7/16" |
Uniform Capacity at 0" to 62" | 2000 lbs. |
Uniform Capacity at 118" to 137" | 1000 lbs. |
Uniform Capacity at 137" to 150" | 750 lbs. |
Uniform Capacity at 62" to 118" | 1500 lbs. |
Voltage | 24V |
Wheel Material | Poly-on-Steel |
Width | 57.88" |
Ship weight (kg) | 580.5 |
Ship height (cm) | 436.4 |
Ship length (cm) | 174.94 |
Ship width (cm) | 147 |
HS code | 8428900290 |
Country of Origin | CN |
Product | Model | Length | Drive Caster Dia. | Drive Caster Width | Lifting Height Max. | Max. Travel Distance | Max. Width Between legs | Min. Lift Height | Min. Width Between Forks | Price | |
---|---|---|---|---|---|---|---|---|---|---|---|
S-118-AA | 69" | 10" | 3" | 118" | 115.875" | 50" | 2.13" | 8" | £14,492.98 | RFQ
| |
S-118-FF | 67.31" | 10" | 3 1/8" | 118" | 114.625" | - | 3.38" | 26.75" | £13,547.74 | RFQ
| |
S-62-AA | 69" | 10" | 3 3/8" | 62" | 59.75" | 58" | 2.25" | 8" | £13,509.68 | RFQ
| |
S-62-FA | 67.31" | 10" | 3 3/8" | 62" | 59.5" | 50" | 2.5" | 26.75" | £12,098.58 | RFQ
| |
S-62-FF | 67.31" | 10" | 3 1/8" | 62" | 40.12" | - | 3.38" | 26.75" | £11,446.70 | RFQ
|
