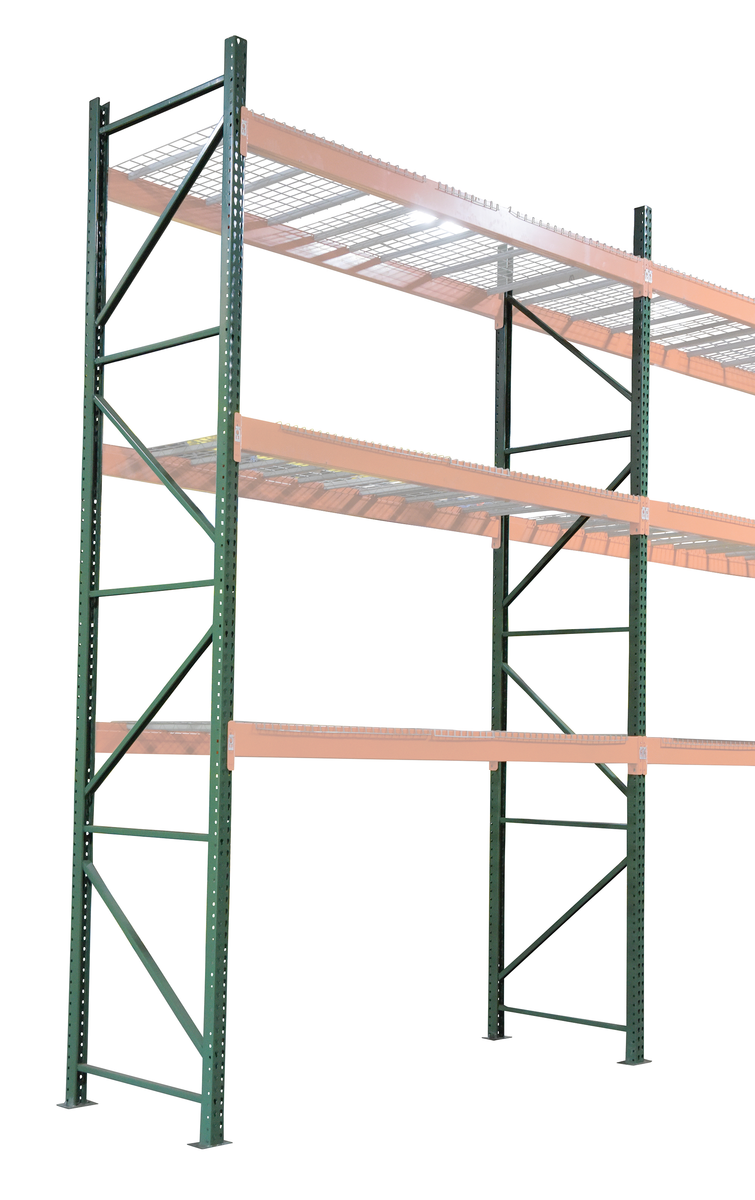

VESTIL PRTD-10-42-24 Steel Pallet Racking Frame, 10 ft x 42 Inch, 24000 lb Capacity, Green

Item: AG7XPM
Model: PRTD-10-42-24
In Stock

We deliver to your doorstep under DAP terms. Customs clearance is for your account

Height
Capacity
£0/unit
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Assembled Depth 7"
Assembled Height 120"
Assembled Width 42"
Assembly Assembled
Capacity 24000 lbs.
Color Green
Color Family Green
Compatible Products BEAM-S-850, BEAM-S-870, BEAM-S-960, BEAM-S-970, BEAM-S-1050, BEAM-S-1070, BEAM-S-1250, BEAM-S-1260, FSR-6, FSR-12, PSB-42, SSB-42
Components Frame
Features Pallet Racking Is Scratch And Rust Resistance
Hole Pattern Teardrop
Length 7"
Material Steel
Rust Resistant Yes
Standard Floor Thickness 8"
Teardrop Hole Height 1 1/8"
Teardrop Hole Width 3/4"
Width 42"

Product Details

Frame

Shipping Information

height 35.56
length 2.54
width 121.92
hs code 7326908588
country of origin CN
weight 76.950000

Uses

Working Mechanism

Features

Compatible Accessories

Vestil Pallet Rack Beams: They are used to join the uprights of the rack to form a bay or section of pallet racking. In order to properly position the uprights, this pallet racking frame might require the installation of two beams.

Standards and Approvals

  • OSHA

Installation

FAQ′s

Q. How many uprights are needed for two 'runs' on pallet racking?

A. You will need 3 Vestil PRTD frames for two continuous 'runs' on the pallet racking.

Q. How to install Vestil PRTD-10-42-24 24 pallet rack frame?

A.

  • Place the pallet rack on a flat & even surface. When deciding where to install, keep in mind the need for aisle space to accommodate lifting equipment.
  • Place an upright frame in the desired location and mark the floor with bolt holes in the footpads.
  • Anchor bolts should be 1/2 inch in diameter to match the bolt holes in the footpads of the upright frame pieces.
  • Drill anchor bolt holes and install anchoring devices.
  • Slide a lock washer followed by a flat washer onto each bolt, before bolting the upright frame to the ground.
  • The bolts should then be inserted through the bolt holes in the footpads and into the anchoring device.

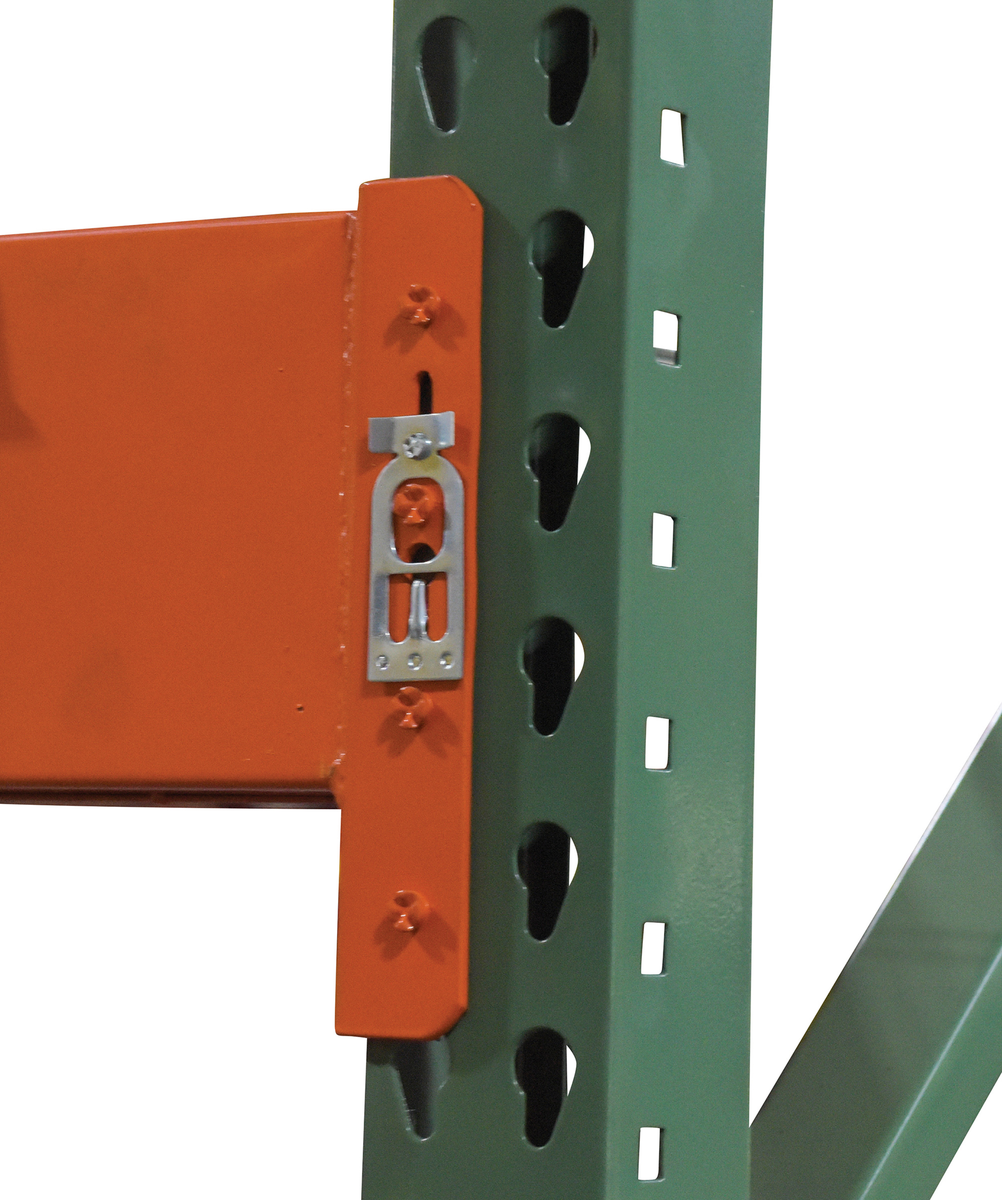

  • Insert the beam locking tabs (at the same height on both ends, so that the beam is level) into the teardrop openings in the uprights to install the beams.
