VESTIL

See our 858 reviews on trustpilot

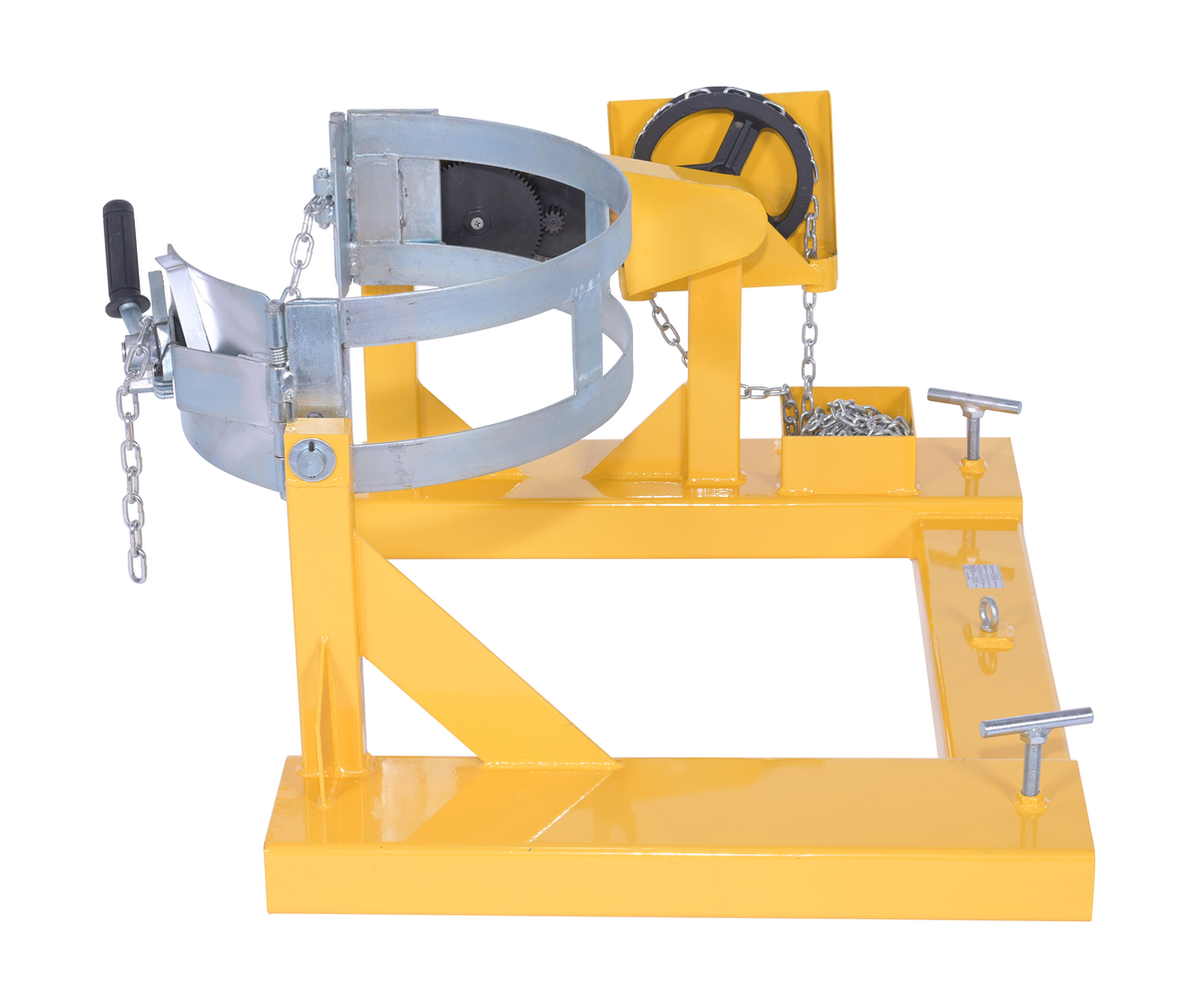

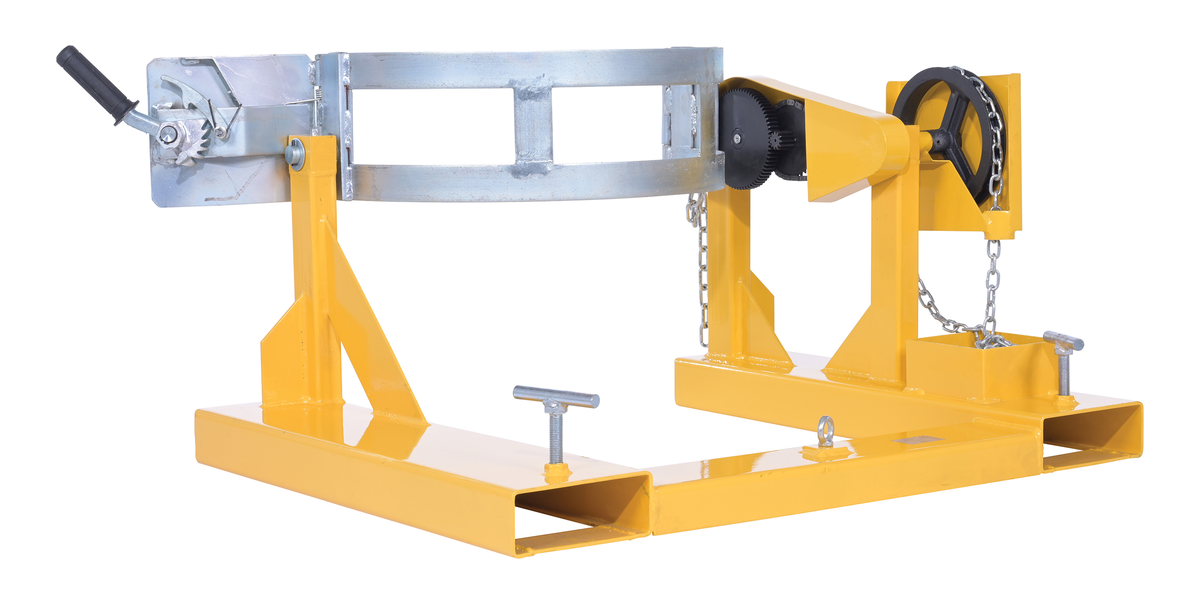

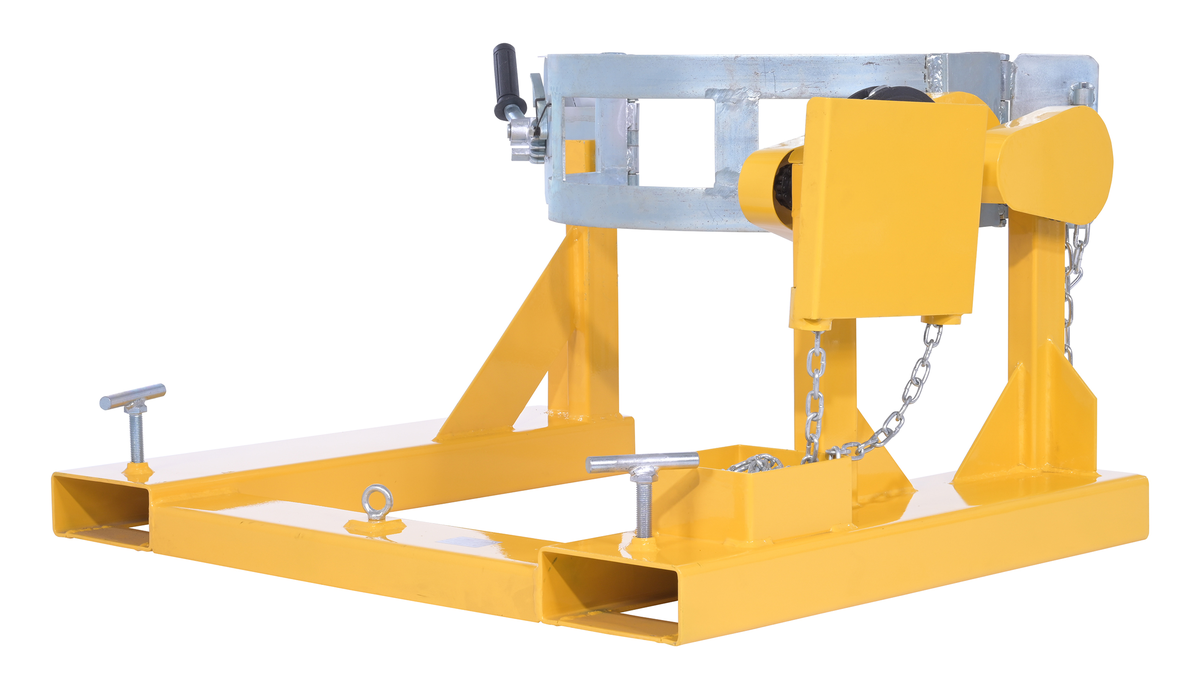

VESTIL DCR-205-15 Steel Fork Truck Drum Carrier/Rotator For Steel Drums 55 Gallon 1500 lb Capacity, Yellow

Item: AG7QJP
Model: DCR-205-15
In Stock

Get it by Thursday, Apr 16

Capacity
£1035.4/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Assembled Depth 38 5/8"
Assembled Height 25 15/16"
Assembled Width 38 3/4"
Assembly Assembled
Capacity 1500 lbs.
Chain Length 56"
Color Yellow
Color Family Yellow
Drum Cradle Finish Zinc Plated
Drum Material Steel
Drum Restraint Method Chain
Drum Size 55 gal.
Features Fork Truck Drum Carrier/Rotator Is For Handling Steel Drums Efficiently
Fork Pocket Center 31 3/8"
Fork Pocket Height 2 5/8"
Fork Pocket Size 7 1/2"
Fork Pocket Width 7"
Height 21 3/8"
Includes Includes 15 Ft. Rotation Chain, 56 Ft. Safety Chain, And 33 In. Drum Restraint Chain
Length 30"
Material Steel
Numbers Of Crank Turns Per 90 Deg. Rotation 10
Power Source Manual
Rotation 360°
Rotation Chain 15 ft.
Width 38 3/8"

Product Details

Drum Carrier/Rotator

Shipping Information

height 66.04
length 121.92
width 101.6
hs code 8428900290
country of origin CN
weight 99.900000

Uses

Working Mechanism

  • Insert fork tines of a fork truck into the fork pockets of the unit and then tighten the tine locks by turning them clockwise.
  • Attach the carriage strap / safety chain to the fork truck without any slack for preventing the unit from sliding off the forks.
  • Open the drum cradle & securely lock the drum into the cradle between the upper & lower drum rings.
  • Remove & place the chain from the storage compartment inside the forklift cabin for easy access by the lift operator.
  • Raise the forks & the attached drum a few inches from the ground for transporting it to the dumping location. Users should pull the lower segment of the chain towards themselves when rotating the drum forward and pull the upper segment of the chain towards themselves when rotating the drum backwards.
  • Rotate the drum back to the upright position after it is empty. Move the drum to an offloading location and then set it on the ground. Open the drum cradle and remove the emptied drum. Store the unit in a dry, indoor location.

Features

Compatible Accessories

  • Vestil DCR-R-815-HC Hand Crank: These hand cranks fit onto this fork truck drum carrier / rotator for replacing the pull chain used to rotate the drums.

Standards and Approvals

  • OSHA

Installation

FAQ′s

Q. What is the load capacity of this Vestil DCR-205-15 fork truck drum carrier / rotator?

A. This fork truck drum carrier / rotator has a uniform capacity of 1500 lb.

Q. Can all types of drums be transported by this fork truck drum carrier / rotator?

A. Vestil DCR-205-15 is compatible with steel drums having a size of 55 gallons.

Q. What is this Vestil DRUM-LRT-EC made of?

A. This portable drum lifter / rotator / transporter has steel construction for long-term operability & strength. The unit's drum cradle is zinc plated for withstanding chemical exposures.

Q. How many turns of the crank are required for rotating this fork truck drum carrier / rotator?

A. Users need to turn the crank of this Vestil DCR-205-15 unit 10 times for a 90-degree rotation of the drum.
