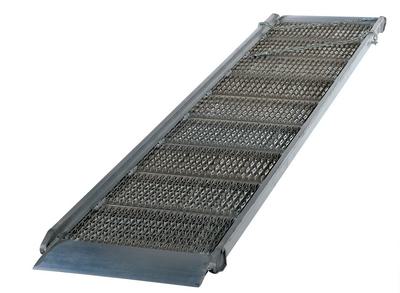

VESTIL AWR-G-38-9A Aluminium Grip-Strut Walk Ramps, 108-1/2 x 39-3/8 Inch, 2800 lb Capacity, Silver
Item: AG7MEW
Model: AWR-G-38-9A
In Stock
Get it by Thursday, Apr 16
108" x 238"
£1268.56/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
- Specifications
- Product Details
- Shipping Information
- Uses
- Working Mechanism
- Features
- Compatible Accessories
- Standards and Approvals
- Installation
- FAQ′s
- See Variants
Specifications
| Assembled Depth | 108 1/2" |
|---|---|
| Assembled Height | 3 3/4" |
| Assembled Width | 39 3/8" |
| Assembly | Assembled |
| Capacity With 2 Wheel Cart | 1600 lbs. |
| Capacity With 4 Wheel Cart | 2500 lbs. |
| Color | Silver |
| Color Family | Silver |
| Curb Height (in.) | 2" |
| Deck Type | Grip Strut |
| Depth | 108 1/2" |
| Distance Between Curbs | 39 3/8" |
| Features | 100% Welded Aluminum Construction Is Light Weight And Will Not Rust |
| Height Range | 6" to 33" |
|---|---|
| Includes | Safety Retaining Chains |
| Length | 108" |
| Material | Aluminum |
| Max. Height | 33" |
| Min. Height | 6" |
| Ramp Frame Material | Aluminum |
| Ramp Grate Material | Aluminum |
| Safety Curb | 2" |
| Usable Length | 108" |
| Usable Ramp Length | 108 1/2" |
| Usable Ramp Width | 36" |
Product Details
Walk Ramp
Shipping Information
| height | 7.62 |
|---|---|
| length | 205.74 |
| width | 96.52 |
| hs code | 7610900080 |
|---|---|
| country of origin | US |
| weight | 32.850000 |
Uses
Working Mechanism
Features
Compatible Accessories
Standards and Approvals
Installation
FAQ′s
Related Products
| Style | Model | Overall Length | Overall Width | Distance Between Curbs | Usable Ramp Width | Capacity With 2 Wheel Cart | Capacity With 4 Wheel Cart | Depth | Usable Ramp Length | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | AWR-G-28-10A | - | - | 29 3/8" | 26" | 1500 lbs. | 2200 lbs. | 120 1/4" | 120 1/4" | 947.97 | |
| B | AWR-G-28-12A | - | - | 29 3/8" | 26" | 1400 lbs. | 1900 lbs. | 143 3/4" | 143 3/4" | 1,088.82 | |
| C | AWR-G-28-14A | - | - | 29 3/8" | 26" | 1200 lbs. | 1600 lbs. | 167 1/4" | 167 1/4" | 1,238.76 | |
| D | AWR-G-28-16A | - | - | 29 3/8" | 26" | 1000 lbs. | 1000 lbs. | 190 3/4" | 190 3/4" | 1,361.85 | |
| E | AWR-G-28-6A | - | - | 29 3/8" | 26" | 2000 lbs. | 2800 lbs. | 73 1/4" | 73 1/4" | 650.11 | |
| F | AWR-G-28-7A | - | - | 29 3/8" | 26" | 1800 lbs. | 2800 lbs. | - | 85" | 714.59 | |
| G | AWR-G-28-8A | 8 ft. | 29 3/8" | 29 3/8" | 26" | 1650 lbs. | 2500 lbs. | 96 3/4" | 96 3/4" | 787.07 |
