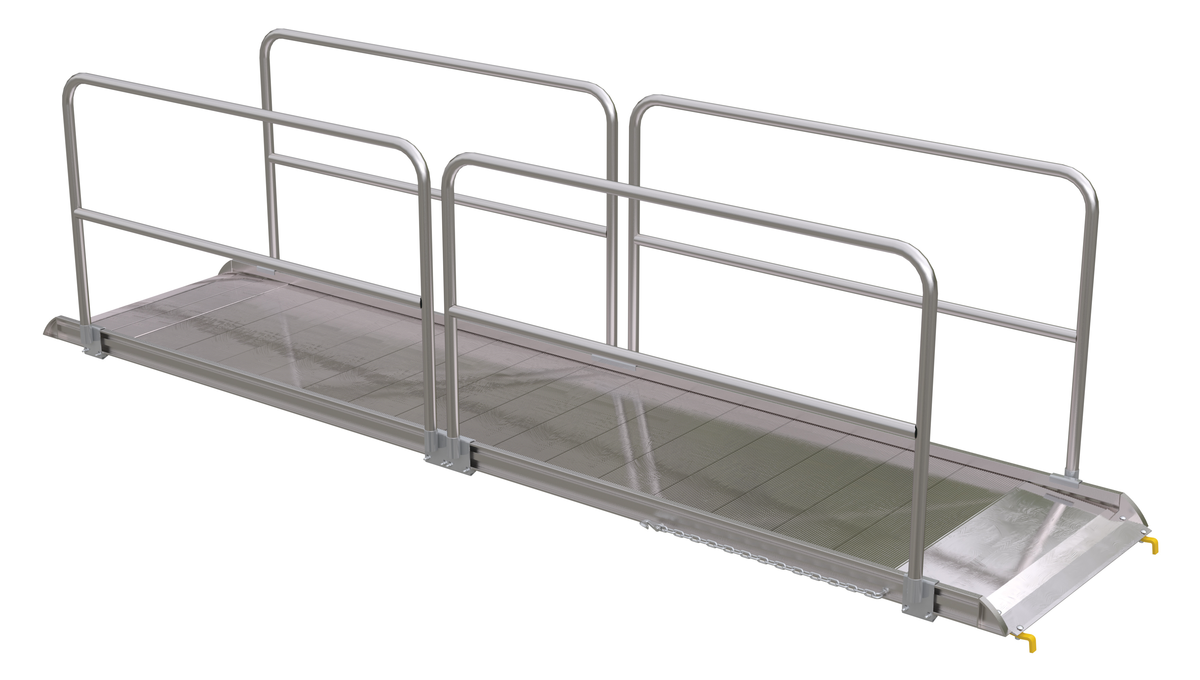

VESTIL AWR-38-12B-HR Aluminium Wheel Walk Ramp, Steel Hook Style with Handrails, 146-5/16 x 38 Inch, 1900 lb capacity, Silver
Item: CE3AGW
Model: AWR-38-12B-HR
In Stock
Get it by Thursday, Apr 16
146.3125"
38"
£2460.9/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
- Specifications
- Product Details
- Shipping Information
- Uses
- Working Mechanism
- Features
- Compatible Accessories
- Standards and Approvals
- Installation
- FAQ′s
- See Variants
Specifications
| Assembled Depth | 146 5/16" |
|---|---|
| Assembled Height | 45 5/16" |
| Assembled Width | 38" |
| Assembly | Assembled |
| Capacity With 2 Wheel Cart | 1400 lbs. |
| Capacity With 4 Wheel Cart | 1900 lbs. |
| Color | Silver |
| Color Family | Silver |
| Curb Height (in.) | 1 1/2" |
| Depth | 146.333" |
| Distance Between Curbs | 38" |
| Features | 100% Welded Aluminum Construction Is Light Weight And Will Not Rust |
| Handrail Color | Silver |
| Handrail Height | 40 1/4" |
| Handrails Included | Yes |
| Height | 45.333" |
| Height Range | 6" to 48" |
| Includes | 4 Bolt On Handrails |
| Installation Type | Bolt On |
|---|---|
| Length | 12 ft. |
| Material | Aluminum |
| Max. Height | 48" |
| Midrail | 18.438" |
| Midrail Height | 18.444" |
| Min. Height | 6" |
| Number Of Handrails | 4 |
| Railing Height | 40 1/4" |
| Ramp Frame Material | Aluminum |
| Ramp Grate Material | Aluminum |
| Safety Curb | 1 1/2" |
| Usable Length | 145.438" |
| Usable Rail Length | 122.312" |
| Usable Ramp Length | 145.444" |
| Usable Ramp Width | 36" |
| Width | 38" |
Product Details
Shipping Information
| Height | 121.92 |
|---|---|
| Width | 96.52 |
| Country Of Origin | US |
|---|---|
| Weight | 101.700000 |
Uses
Working Mechanism
Features
Compatible Accessories
Standards and Approvals
Installation
FAQ′s
Related Products
| Style | Model | Overall Length | Depth | Distance Between Curbs | Usable Ramp Width | Usable Ramp Length | Usable Length | Capacity With 2 Wheel Cart | Capacity With 4 Wheel Cart | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | AWR-28-10A-HR | - | 120" | 28" | 26" | 120" | 120" | 1500 lbs. | 2200 lbs. | 1,383.67 | |
| B | AWR-28-10B-HR | - | 123" | 28" | 26" | 121.571" | 121.562" | 1500 lbs. | 2200 lbs. | 1,338.99 | |
| C | AWR-28-12A-HR | - | 144" | 28" | 26" | 144" | 144" | 1400 lbs. | 1900 lbs. | 1,871.11 | |
| D | AWR-28-12B-HR | - | 147" | 28" | 26" | 145.444" | 145.438" | 1400 lbs. | 1900 lbs. | 1,853.19 | |
| E | AWR-28-14A-HR | - | 168" | 28" | 26" | 168" | 168" | 1200 lbs. | 1600 lbs. | 2,035.91 | |
| F | AWR-28-14B-HR | - | 170 4/5" | 28" | 26" | 169 1/4" | 169 1/4" | 1200 lbs. | 1600 lbs. | 1,968.38 | |
| G | AWR-28-16A-HR | - | 192" | 28" | 26" | 192" | 192" | 1000 lbs. | 1000 lbs. | 2,219.54 |
