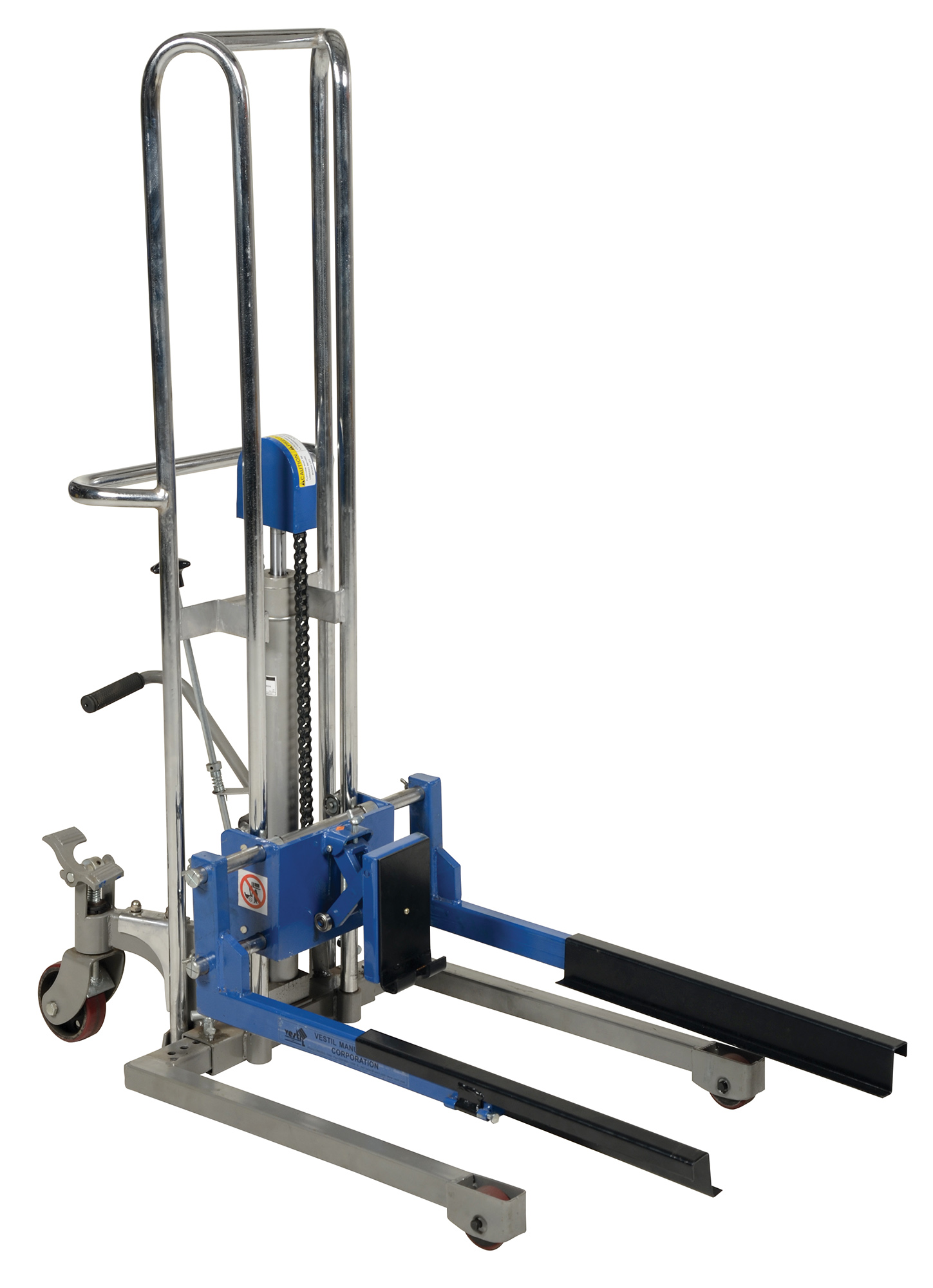

VESTIL ABS-130 Adjustable Box Stacker, 380 Lb. Load Capacity

Item: AG7LBF Model: ABS-130
In Stock

Get it by May 6, Monday

£1,655.45 /unit (Inc. VAT)
Trade Prices Available
ADD TO CART
REQUEST A QUOTE

Payment Methods

Delivery Partners

How NET30 Works

Step 1 Add the items into your cart or submit a Purchase order

Step 2 Checkout, select NET30 payment (provide company registration and VAT number)

Step 3 Delivery via TNT or Royal Mail and receive invoice for payment in 30-days

Step 4 Make payment via BACS to our factoring partner,

Product Specifications:

ItemStacker
Adjustable ForksYes
Capacity380 lbs.
Caster MaterialPoly on Steel
ColorBlue, Silver
Fork Length19.5"
Fork Width2.5"
Frame MaterialSteel
Front Caster Dia.3"
Front Caster MaterialPoly on Steel
Front Caster Width1 1/2"
Height59.5"
Leg TypeStraddle
Leg Width2.63"
Length40.5"
Lifting Height Max.42.25"
Load Capacity380 lbs.
Lowered Height2 3/4"
MaterialSteel
Max. Fork Width18 1/2"
Max. Leg Inside Dia.21 1/8"
Max. Leg Outside Dia.24 3/8"
Max. Legs Width Inside Dia.21 1/8"
Max. Travel Distance39.5"
Max. Width Between Forks18.5"
Max. Width Between legs18.5"
Measuring UnitsEACH
Min. Fork Width11 1/2"
Min. Leg Inside Dia.15 3/8"
Min. Leg Width Inside Dia.15 3/8"
Min. Lift Height2.75"
Min. Width Between Forks11.5"
Min. Width Between legs11.5"
Number of Casters4
OperationFoot Pump
Overall Depth40.5"
Power SourceManual
Raised Height42 1/2"
Rear Caster Dia.5"
Rear Caster MaterialPoly on Steel
Rear Caster Width1"
Width24.5"

Shipping Info:

Ship weight (kg) 94.5
Ship height (cm)152.4
Ship length (cm)102.87
Ship width (cm)62.23
HS code8427900000
Country of OriginCN

Working Mechanism:

  • This box stacker features various components, including a base frame, pumping unit and lifting arms.
  • The lifting arms are raised by pumping the pump using a foot mount assembly.
  • The lifting arms are lowered by a handle located on the rear of the box stacker unit.
  • It can be manoeuvred through the working space by pushing the unit using the attached wheels.

Standards and Approvals:

  • OSHA

Frequently Asked Questions:

Q. How many strokes / pumps are required to fully raise the box stacker to lift?

A. When fully loaded, it takes approximately 31 strokes to raise the box stacker lifting arms to the max / top.

Q. What is the maximum height supported by Vestil box stackers?

A. The maximum height achievable is 42.5 inches and the rated capacity is 380 lb.

Q. How to manoeuvre Vestil box stackers?

A. These box stackers have a swivel caster on the rear for manoeuvring through tight spaces. It also features a braking assembly for halting the box stacker in place for loading / unloading.

Documentation:

Datasheet
