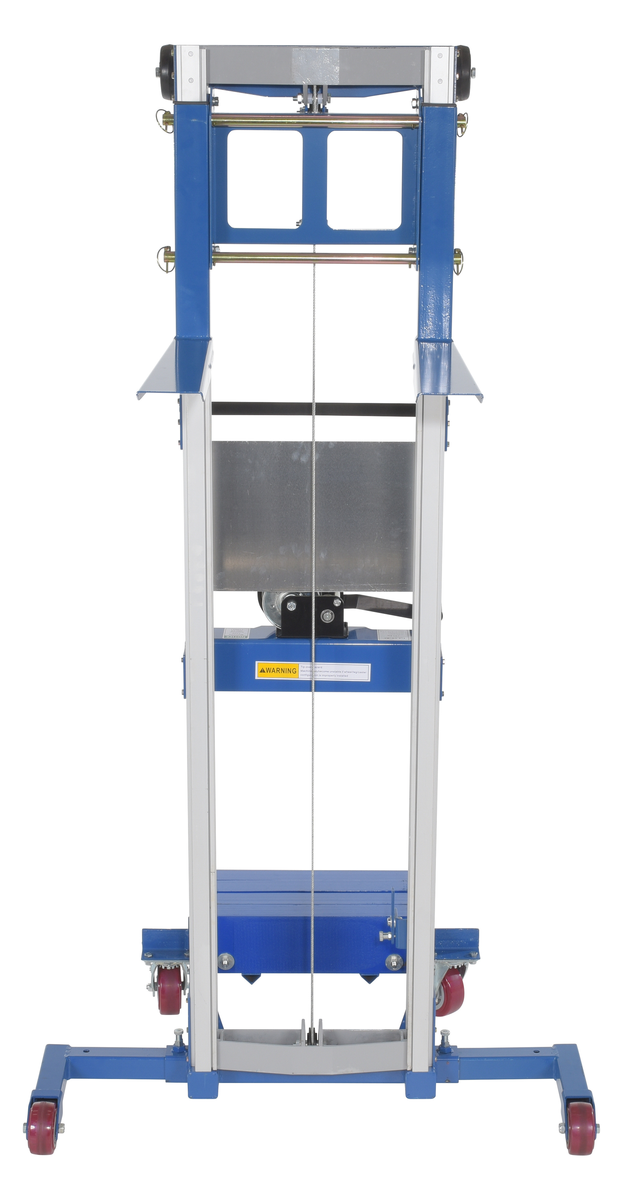

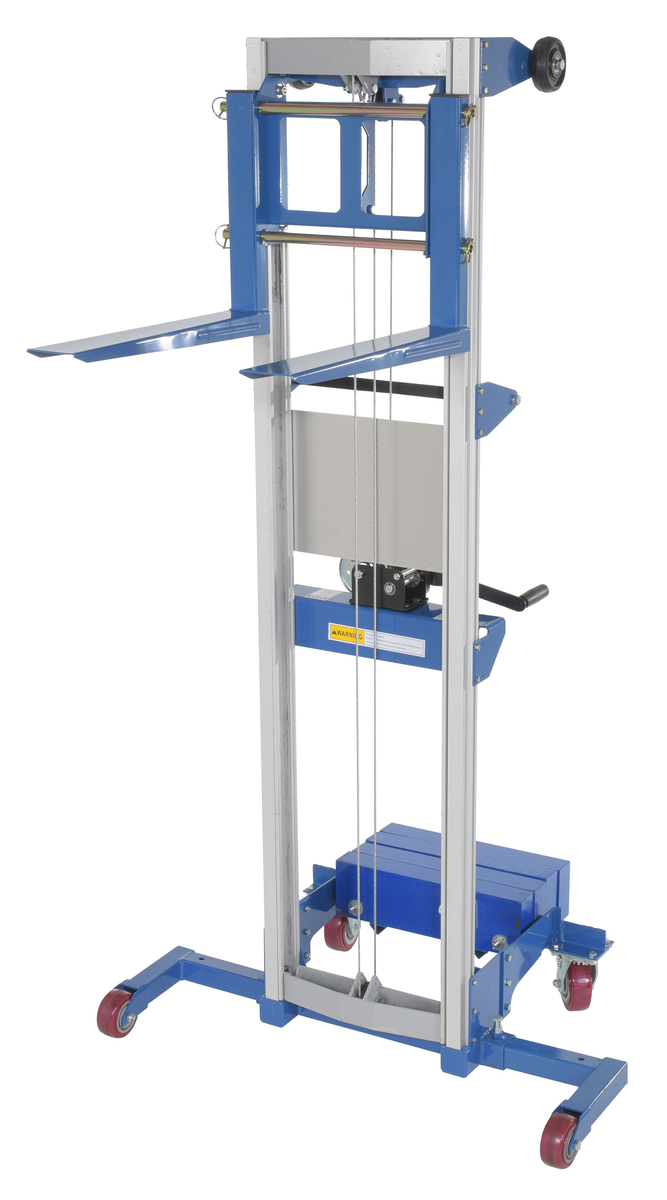

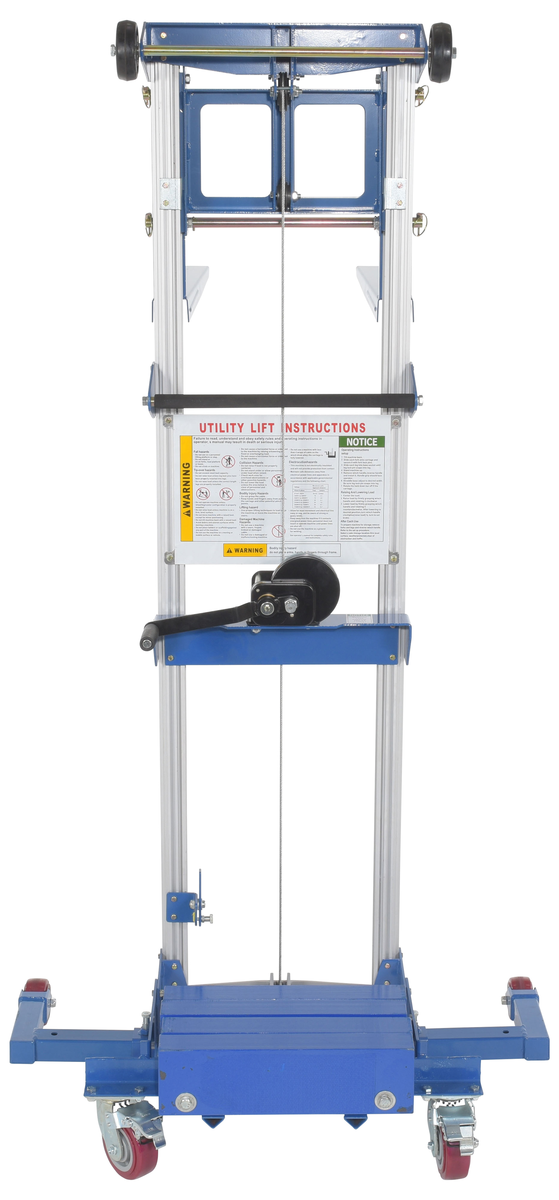

VESTIL A-LIFT-CB-EHP Aluminium/Steel Manual Hand Winch Lift Truck With Counter Balance, 350 lb Capacity, Silver/Blue
Item: AG7LTB
Model: A-LIFT-CB-EHP
In Stock
Get it by Thursday, Apr 16
£2170.76/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
- Specifications
- Product Details
- Shipping Information
- Uses
- Working Mechanism
- Features
- Compatible Accessories
- Standards and Approvals
- Installation
- FAQ′s
- See Variants
Specifications
| Application | Industrial, Commercial |
|---|---|
| Assembled Depth | 46" |
| Assembled Height | 79 1/8" |
| Assembled Width | 43 1/4" |
| Assembly | Assembled |
| Assembly Required | No |
| Batteries Included | No |
| Capacity | 350 lbs. |
| Certification Indicator | No |
| Color | Silver |
| Color Family | Silver |
| Contains Hazardous Material Or Is Aerosol | No |
| Depth | 46" |
| Features | Light Weight Portable Lifts Are Great For Hundreds Of Applications |
| Fork Height | 1 3/4" |
| Fork Length | 22 7/16" , 22.437" |
| Fork Lowered Height | 2" |
| Fork Outside Dia. | 21 1/2" |
| Fork Raise Per Hand Crank Rotation | 1" |
| Fork Saddle Width | 28 1/4" |
| Fork Thickness | 1 3/4" |
| Fork Width | 4" |
| Frame Material | Steel |
| Front Caster Dia. | 4" |
|---|---|
| Front Wheel Dia. | 4" |
| Front Wheel Width | 2" |
| Fully Welded Frame | Yes |
| Handle Length | 18 5/8" , 18.63" |
| Handle Material | Steel |
| Height | 79 1/8" |
| Length | 46" |
| Material | Aluminum, Steel |
| Max. Adjustable Fork Width | 43 1/4" |
| Max. Fork Height | 143 11/16" , 143.69" |
| Max. Fork Width | 43 1/4" |
| Max. Lift Height | 122" |
| Origin Criterion | No |
| Power Source | Hand |
| Raised Height With Forks Down | 122" |
| Raised Height With Forks Up | 143.688" |
| Rear Caster Dia. | 5" |
| Rear Wheel Width | 2" |
| Weight Capacity | 350 lbs. |
| Wheel Material | Poly On Poly |
| Width | 43 1/4" |
Product Details
Shipping Information
| Height | 45.72 |
|---|---|
| Length | 233.68 |
| Width | 73.66 |
| HS Code | 8427900000 |
|---|---|
| Country Of Origin | CN |
| Weight | 204.300000 |
Uses
Working Mechanism
Features
Compatible Accessories
Standards and Approvals
Installation
FAQ′s
Related Products
| Style | Model | Fork Length | Fork Width | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|
| A | A-LIFT-CB | 22.437" | 4" | 1,641.83 | |
| B | A-LIFT-CB-HP | 22.437" | 4" | 1,854.61 | |
| C | A-LIFT-R | 22 7/16" | 4" | 1,434.91 | |
| D | A-LIFT-R-HP | 22 7/16" | 4" | 2,353.68 | |
| E | A-LIFT-S | 22 7/16" | 4" | 1,535.38 | |
| F | A-LIFT-S-EHP | - | 4" | 1,387.00 | |
| G | A-LIFT-S-HP | 22 7/16" | 4" | 1,405.15 |
