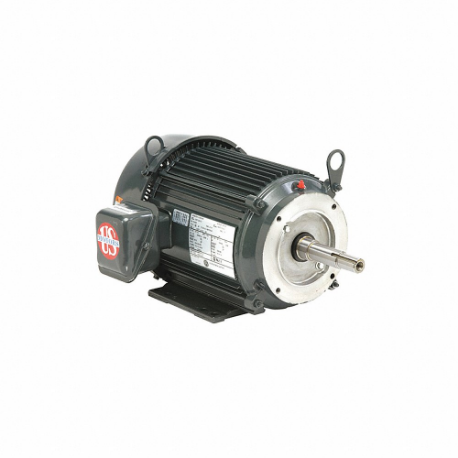

| Item | Close-Coupled Pump Motor |
| Additional Details | For The Specific Requirements Of Centrifugal Pumps Where The Pump Impeller Is Mounted Directly On The Motor Shaft, U.S. Motors Close Coupled Pump Motors Are Available With JM, JP, Or Westcoast Shaft Extensions. |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Cc Number | CC030A |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Finish | Unfinished |
| Frame | 143JM |
| Frame Material | Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 3.1-3/1.5A |
| Hp | 1 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Motor Application | Close Coupled Pump |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Shaft Design | JM Threaded |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Horizontal/Foot |
| Nameplate Rpm | 1800 RPM |
| Nema Design | B |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Overall Length | 15 1/4" |
| Phase | 3 |
| Product Type | AC Motors |
| Regreasable Bearings | Permanently Lubricated Bearings |
| Service Factor | 1.25 |
| Shaft Dia. | 7/8" |
| Shaft Length | 4 1/4" |
| Thermal Protection | None |
| Torque | 3 lbs.-ft. |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Ins. Class | Class F |
| Length Less Shaft | 11" |
| Motor Bearings | Ball |
| Motor Frame Material | Steel |
| Standards | CSA (191252), UL (E51488) |
| Weight | 30 lbs. |
| Ship weight (kg) | 13.5 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
