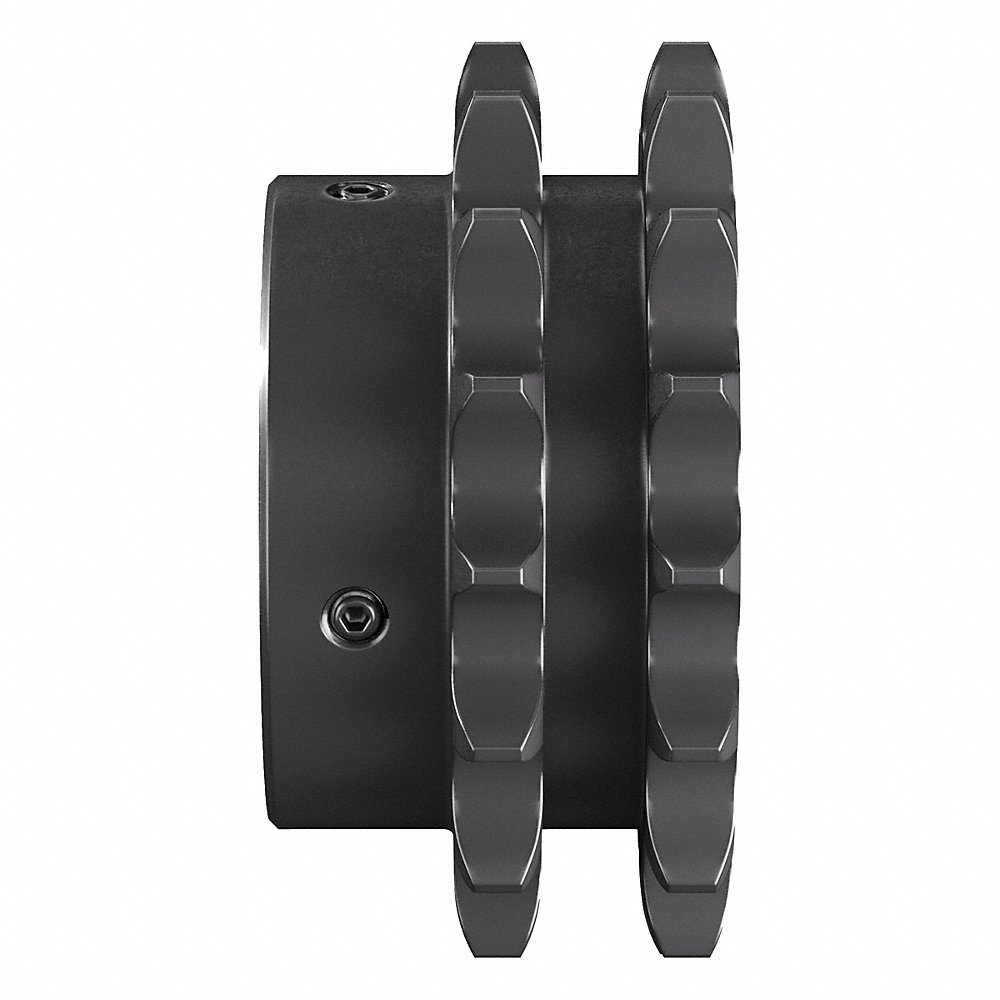

TRITAN D50BS16H X 1 1/4 Roller Chain Sprocket, 1 1/4 Inch Bore Dia, 16 Teeth, Steel
Item: CU6YQQ
Model: D50BS16H X 1 1/4
23 In Stock
Ships within 2 days via
1 1/4"
2
3.52"
5.00% off
£120.26/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Bore Dia. | 1 1/4" |
|---|---|
| Bore Type | Fixed |
| Chain Number | 50 |
| Finish | Black Oxide |
| For Chain Number | 50-2 |
| For Chain Pitch | 5/8" |
| For Number Of Strands | 2 |
| Hub Dia. | 2 1/2" |
| Hub Diameter | 2 1/2" |
| Hub Projection | 0.705" |
| Hub Type | One Side |
| Includes | Set Screws |
| Item - Roller Chain Sprockets | Roller Chain Sprocket |
| Keyway | Yes |
| Keyway Width | 1/4" |
|---|---|
| Length Through Bore | 1 3/4" |
| Material | Steel |
| Maximum Bore Dia. | 1 1/4" |
| Number Of Teeth | 16 |
| Outside Dia. | 3 13/25" |
| Outside Diameter | 3.52" |
| Pitch Dia. | 3.204" |
| Set Screw Location | Setscrews Are Placed Over The Keyway And at 90° To The Keyway |
| Set Screw Size | 5/16" |
| Teeth Heat Treatment | Hardened Teeth |
| Tooth Width | 0.332" |
| Width Across Tooth Sets | 1.045" |
| standard | ANSI B29.1, BIS |
Product Details
Shipping Information
| Height | 2.54 |
|---|---|
| Length | 8.94 |
| Width | 8.94 |
| Country Of Origin | CN |
|---|---|
| Weight | 1.179000 |
Related Products
| Style | Model | Number Of Teeth | Outside Dia. | Bore Dia. | For Chain Number | For Chain Pitch | Pitch Dia. | Maximum Bore Dia. | Keyway | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | D80BS12H X 1 1/2 | 12 | 4.33" | 1 1/2" | 80-2 | 1" | 3.864" | 1 1/2" | Yes | 186.40 | |
| B | D60BS13H X 1 1/2 | 13 | 3.49" | 1 1/2" | 60-2 | 3/4" | 3.134" | 1 1/2" | Yes | 106.65 | |
| C | D80BS13H X 1 1/2 | 13 | 4.66" | 1 1/2" | 80-2 | 1" | 4.179" | 1 1/2" | Yes | 190.41 | |
| D | D60BS14H X 1 1/2 | 14 | 3.74" | 1 1/2" | - | 3/4" | 3.371" | 1 1/2" | Yes | 119.14 | |
| E | 60BS16H X 1 1/2 | 16 | 4.22" | 1 1/2" | 60.0 | 3/4" | 3.845" | 1 1/2" | Yes | 66.93 | |
| E | 50BS17H X 1 1/2 | 17 | 3 18/25" | 1 1/2" | 50.0 | 5/8" | 3.401" | 1 1/2" | Yes | 40.64 | |
| E | 80BS17H X 1 1/2 | 17 | 5.95" | 1 1/2" | 80.0 | 1" | - | 1 1/2" | Yes | 159.60 |
