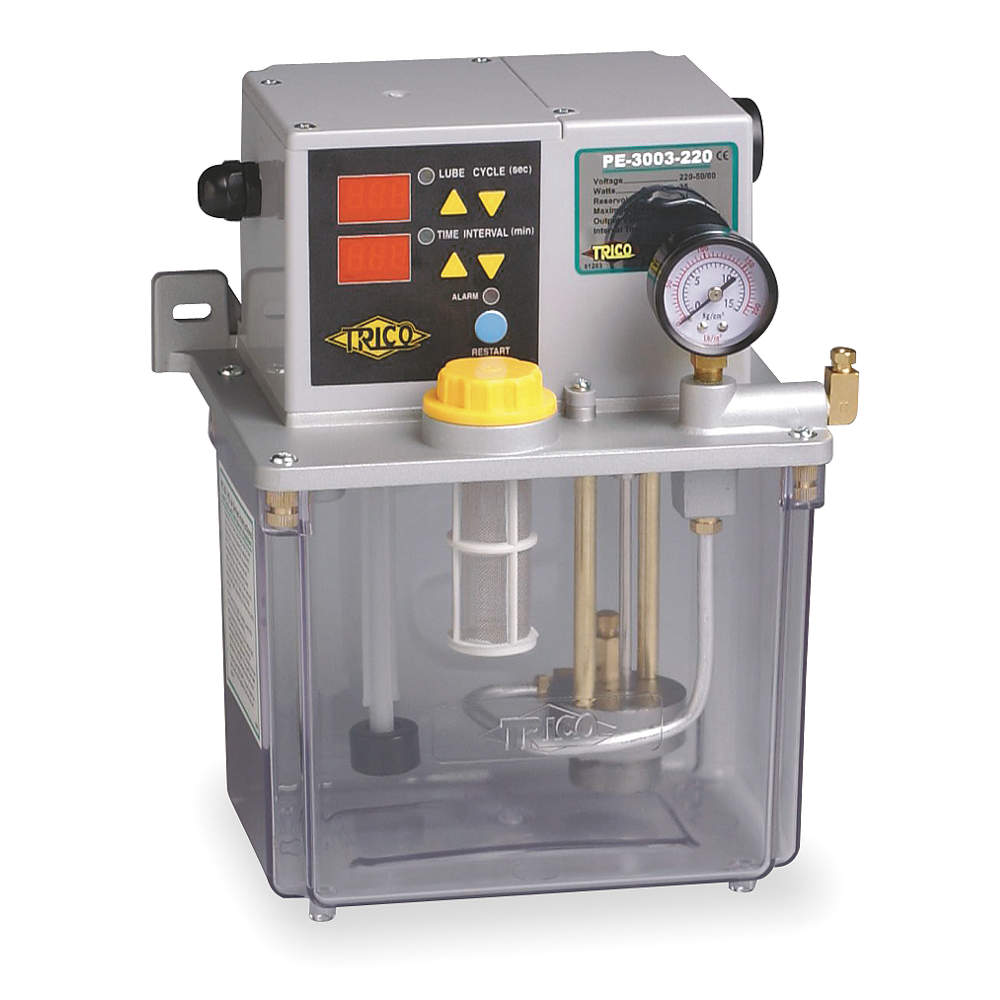

TRICO PE-3003 Automatic Lubrication Pump, 3.33 CC/Cycle Output, 3 Litre Capacity, Plastic

Working Mechanism:

• Trico PE-3003 automatic lubrication pump operates by drawing oil from its reservoir and pressurising it using an internal mechanism.
• When activated, the pump releases the pressurised oil through a process connection, typically connected to machinery requiring lubrication.
• The oil is dispensed in controlled amounts, ensuring proper lubrication of moving parts.
• This system operates seamlessly, delivering precise volumes of oil at specified intervals, thereby reducing manual intervention and optimising machinery performance and longevity.

Compatible Accessories:

Trico DSM-3/0 Meter Units: They allow precise lubricant control at each lubrication point. When no lubricant is being supplied, a spring-loaded check valve prevents air from entering the system.

Standards and Approvals:

• ISO 9001:2015
• ISO/IEC 17025:2017
• ASTM

Frequently Asked Questions:

Q. What are the safety instructions one must be aware of before operating Trico PE-3003 automatic lubrication pump?

A.

• Metal or plastic tubing should be used for piping.
• To facilitate the initial bleeding of air and checking of oil delivery to each point, leave a final fitting (near the meter unit) slightly loose.
• Use only clean oil from a clean container. Do not mix or change the viscosity of the oil.
• Disconnect and flush lines if contaminants enter the system. Refill the system with clean lubricant after emptying the reservoir and cleaning the filter elements.

Q. What safety features does Trico PE-3003 pump offer for system protection?

A. Trico PE-3003 pump includes a pressure switch that shuts down the pump if system pressure drops below a set level, protecting against line or component failure.

Q. How to prevent malfunction in this automatic lubrication pump?

A.

• Mount the reservoir in a visible and easily accessible location for monitoring and servicing. Ensure electrical connections are done by a qualified electrician following local codes and safety regulations.
• Clean filter elements and refill the system with clean lubricant periodically to prevent contamination issues that can lead to malfunctions.
• Wire the pump per the schematic provided in the instruction sheet to ensure proper electrical connections and avoid wiring issues that could disrupt pump operation.
• Adjust cycle and interval times correctly using the arrow keys next to the lube cycle or time interval display. Ensure the settings align with the lubrication requirements of your system for optimal performance.
• Clean the reservoir and filter elements as recommended based on oil cleanliness levels. Regular maintenance of these components is crucial to prevent system issues.

Q. What is the operating temperature of this lubrication pump?

A. This automatic lubrication pump has operating temperatures ranging from 32 to 120 degrees F.
