STARRETT C434-12-16R 51549 Combination Square Set, Rugged Tempered Steel Blade
Item: AE6NAD
Model: C434-12-16R
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
₹759.870000
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Item | Combination Square |
|---|---|
| Accuracy | -0.0025" to +0.0025" |
| Blade Finish | Satin |
| Blade Length | 12" |
| Blade Material | Steel |
| Blade Thickness | 0.08" |
| Blade Width | 3/4" |
| Color | Black |
| Finish | Smooth |
| Graduation Mark Style | Etched |
| Graduation Marks (front) | 1/100" (Aircraft. Quick Reading), 1/64" (Quick Reading) |
|---|---|
| Head Length | 3" |
| Head Material | Steel |
| Head Type | Center, Protractor, Square |
| Head Vial Included | Yes |
| Head Width | 9/16" |
| Includes | Reversible Lock Bolt, Scriber, Spirit Level |
| Number Of Pieces | 4 |
| System Of Measurement | Imperial |
Product Details

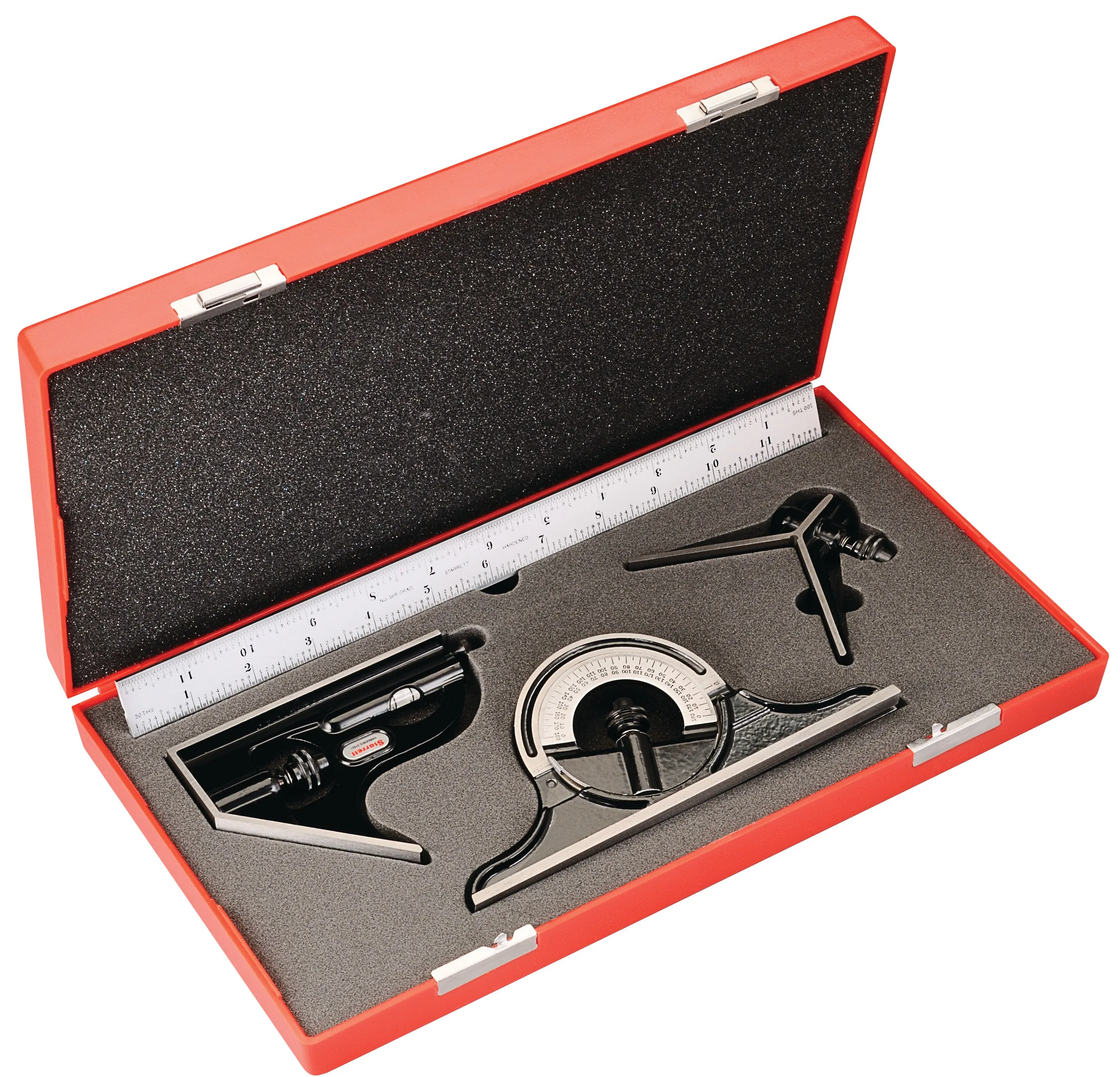

- Starrett C434-12-16R is a 4-piece combination square set comprising a 12-inch-long tempered steel blade with satin chrome finish, a steel square head, a centre head and a protractor head with smooth finish.

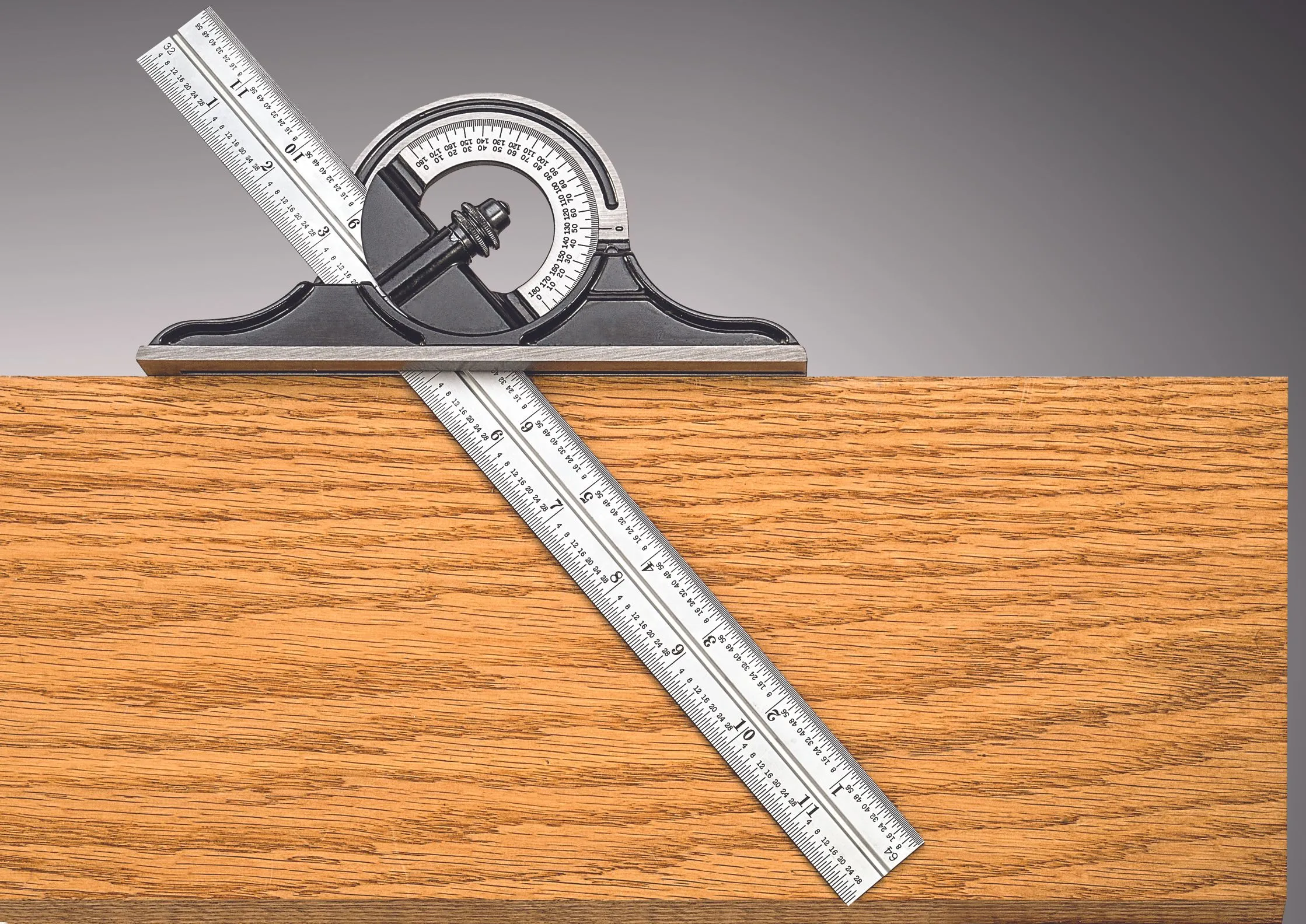

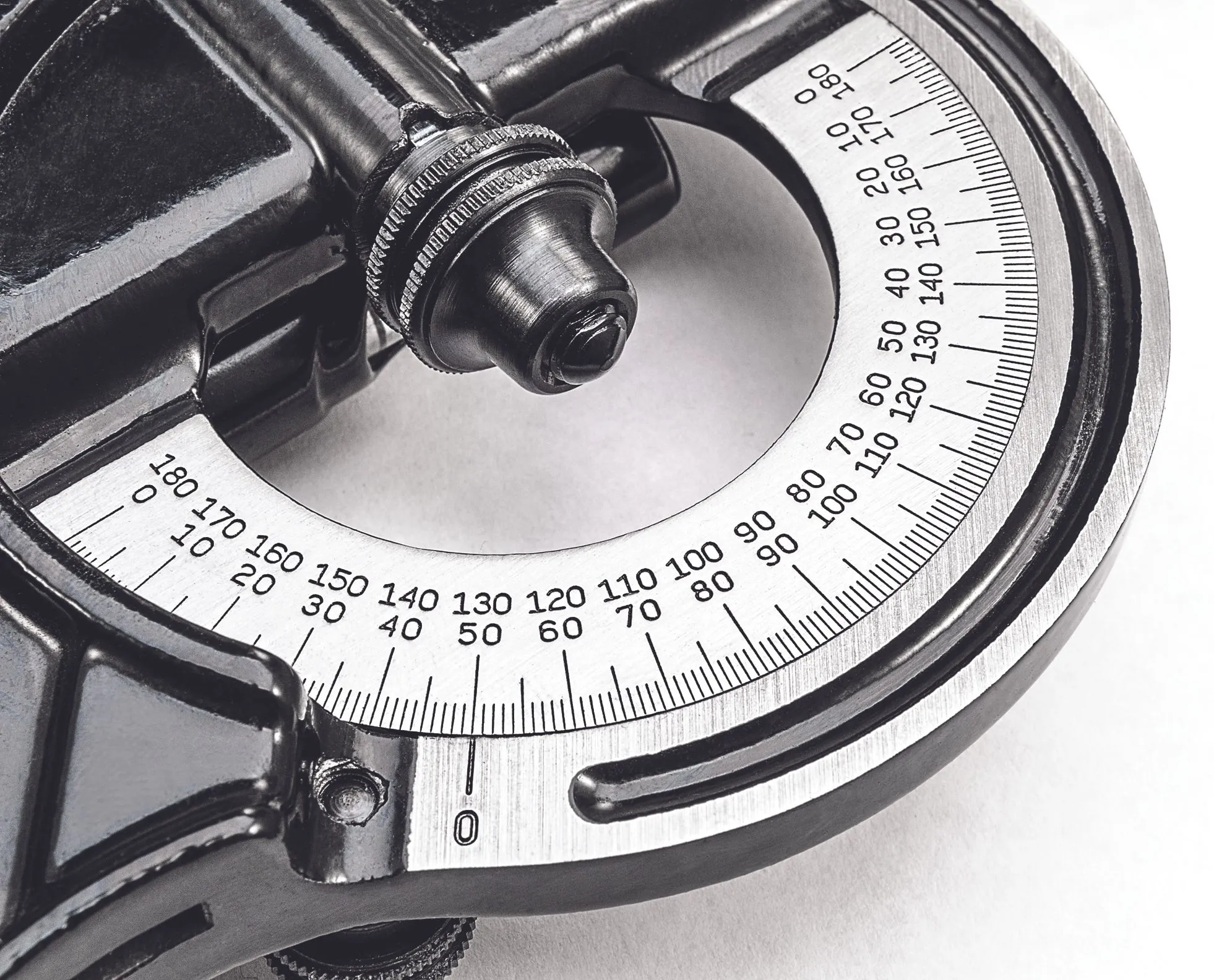

- The centre head is used to accurately locate centre of a cylindrical or square workpiece and the protractor head has revolving turrets with direct-reading double-180-degree protractor scale, ideal for measuring angles accurately.

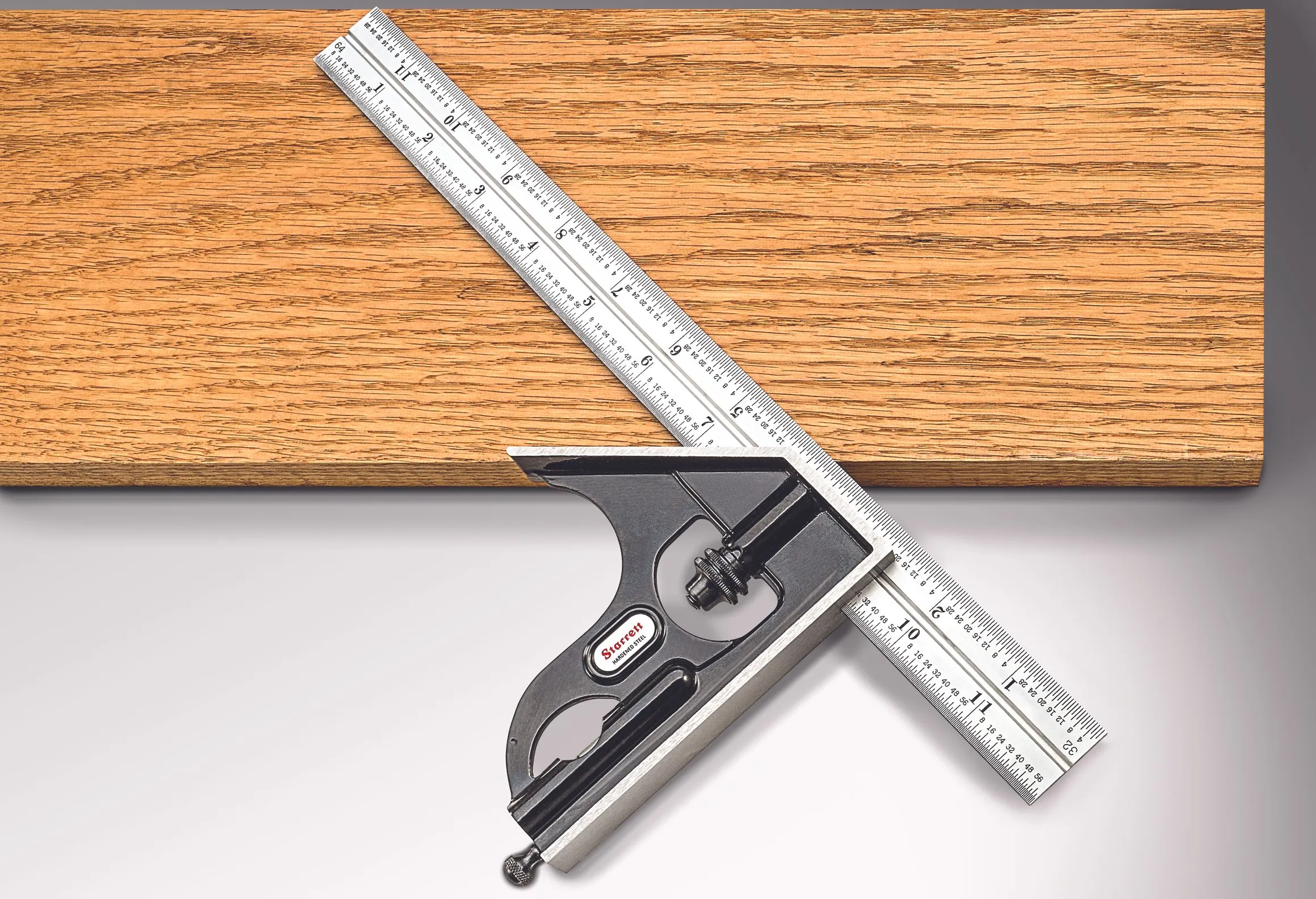

- The square head has a precision ground 90-degree square face and 45-degree miter face, and is used to scribe right angles and parallel lines.
- This combination square set by Starrett features a scriber, a spirit level and a reversible lock bolt that enables the blade to be turned over without removing the lock bolt or nut and ensures proper alignment of the blade with the heads.
Shipping Information
| height | 3.56 |
|---|---|
| length | 31.24 |
| width | 15.75 |
| hs code | 9017800000 |
|---|---|
| country of origin | US |
| weight | 1.035000 |
