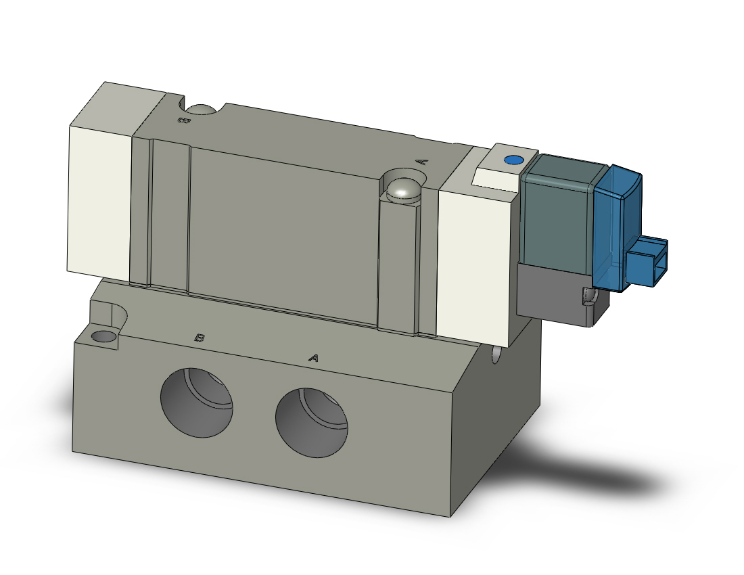

SMC VALVES SY7140-5LOZ-02T Valve, 1/4 Inch Base Mount

Item: AL3VTB
Model: SY7140-5LOZ-02T
24 In Stock

Ships within 2 days via

£116.87/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Actuation Piloted Solenoid
Body Material Aluminum
Bracket Type Without Bracket
Flow Direction 4-Way
Manual Operation Type Non-Locking Push
Max. Operating Pressure 101 psi
No. Of Port 5
No. Of Positions 2
Number Of Solenoids Single
Operating Medium Air
Operating Temp. Range 14°F to 122°F
Overall Height 58.5 mm
Overall Length 110 mm
Overall Width 46 mm
Piping Type Base Mounted Subplate Included
Port Size 0.25
Port Sizes 1/4" NPTF
Seal Material Rubber
Series SY Series
Solenoid Electrical Entry L Plug
Solenoid Power Consumption 0.35 W
Thread Standard NPTF
Valve Function Spool
Valve Series SY7000 Series
Voltage Suppressor With Light, Surge Voltage Suppressor

Product Details

Shipping Information

Height 5.08
Length 7.62
Width 5.08
Weight 0.900000
