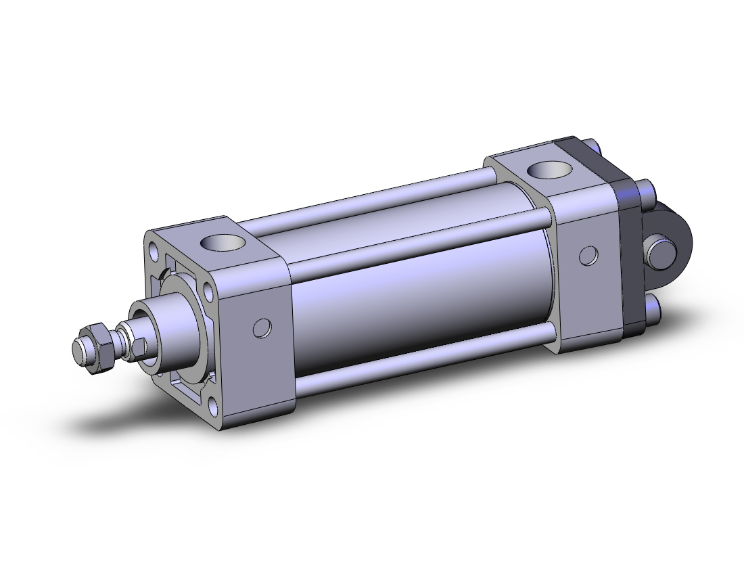

SMC VALVES NCA1X200-0300 Tie Rod Cylinder, 2 Inch Size, Double Acting
Item: AL4MAL
Model: NCA1X200-0300
In Stock
Get it by Thursday, Apr 16
£213.47/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Alignment Coupler Floating Joint | NJ-07 |
|---|---|
| Bore Dia. | 2" |
| Clevis Mount (detachable) - Mp2 | NCA1-D200 |
| Clevis Mount (fixed) - Mp1 | NCA1-X200 |
| Cushion Type | Cushion Both Ends |
| Cylinder Type | NFPA |
| Eye Mount - Mp4 (plain) | NCA1-C200 |
| Flange Mount - Mf1/mf2 | NCA1-F200 |
| Foot Mounts Ms1 | NCA1-L200 |
| Foot Mounts Ms2 | NCA1-S200 |
| Max. Operating Pressure | 250 psi |
| Min. Operating Pressure | 8 psi |
| No. Of Switches | 2 |
| Operating Pressure Range | 8 psi to 250 psi |
| Overall Height | 2.5" |
| Overall Width | 2 1/2" |
| Piston Action | Double Acting |
|---|---|
| Port Gender | Female |
| Port Size | 0.375 NPT |
| Port Thread Standard | NPT |
| Pull Force At 100 Psi | 31 lbf. |
| Push Force At 100 Psi | 314 lbs. |
| Rod - Thread Size | 7/16-20 Male Thread |
| Rod Clevis | NY-150 |
| Rod Gender | Male |
| Rod Size | 0.625" |
| Rod Thread Standard | UNF |
| Rod Type | Single Rod |
| Safety Options | Sleeve Lock |
| Series | NCA1 Series |
| Stroke | 3" |
Product Details
Tie Rod Cylinder
Shipping Information
| height | 7.62 |
|---|---|
| length | 30.48 |
| width | 7.62 |
|---|---|
| weight | 3.150000 |
