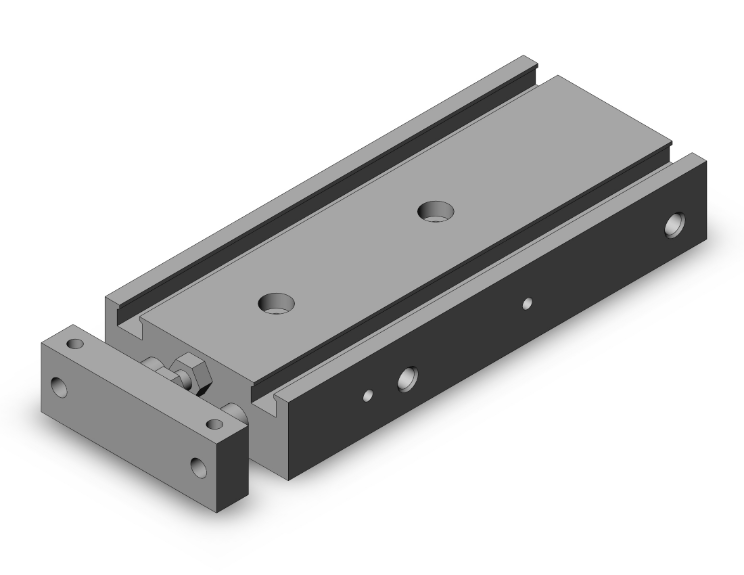

SMC VALVES CXSM10-50 Guided Cylinder, 10 mm Size, Slide Bearing

Item: AL7LTH
Model: CXSM10-50
20 In Stock

Ships within 2 days via

£144.11/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Bearings Slide
Bore Dia. 10 mm
Cushion Type Rubber Bumper
Guided Cylinder Type Dual Rod Slide Unit
Operating Pressure Range 0.1 MPa to 0.7 MPa
Operating Temp. Range -10°C to +60°C
Overall Height 17 mm
Overall Length 122 mm
Overall Width 46 mm
Piping Type Standard Piping
Piston Action Double Acting
Port Thread Standard ISO
Pull Force At 100 Psi 70N
Push Force At 100 Psi 110N
Rod Type Double Rod

Product Details

Shipping Information

Height 7.62
Length 30.48
Width 7.62
Weight 3.150000
