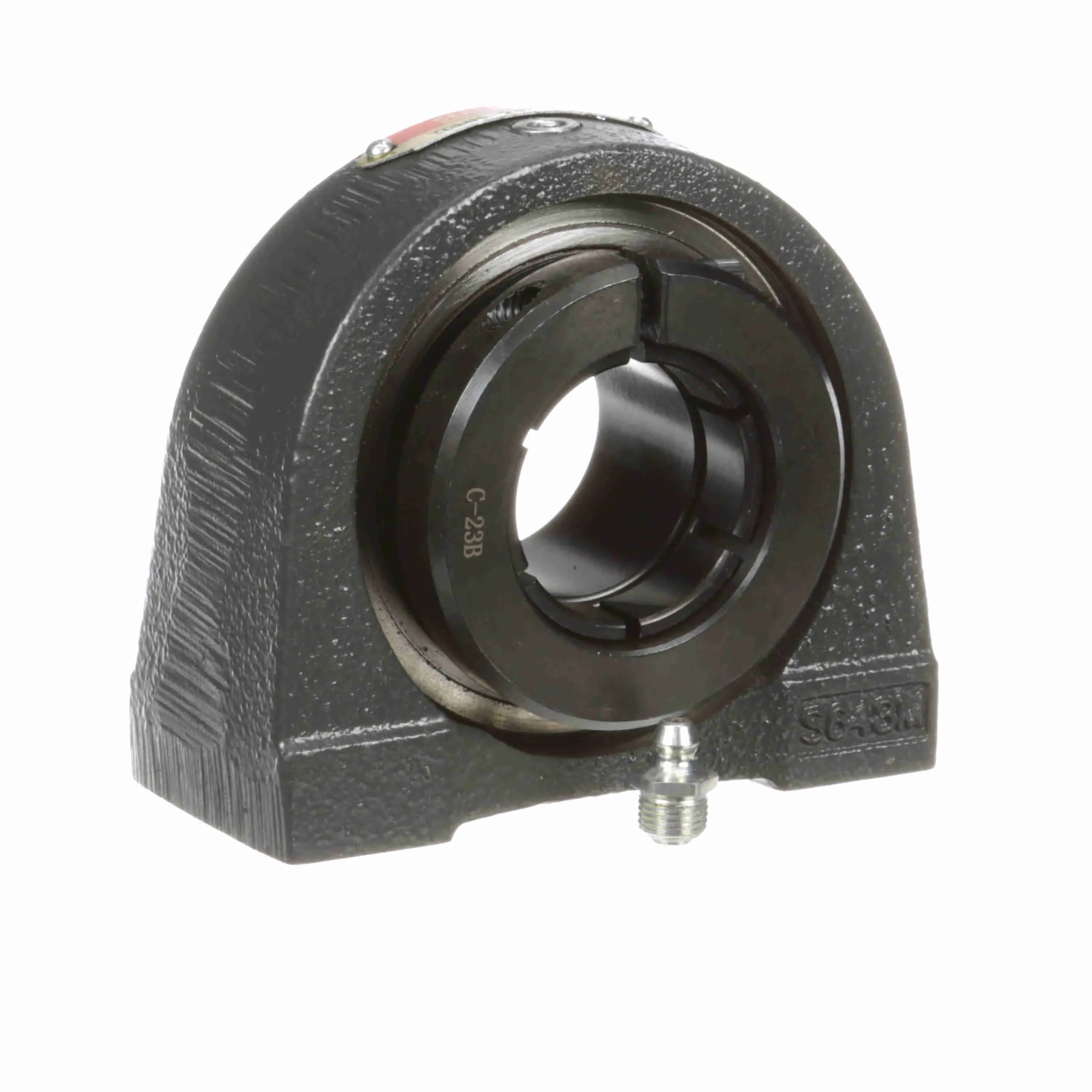

SEALMASTER TBMH-23T 716645 Tapped Base Pillow Block Unit, 2-Bolt Base, 1-7/16 Inch Bore, Cast Iron
Item: BD8QNT
Model: TBMH-23T
In Stock
Get it by Thursday, Apr 16
£219.28/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Base Length | 4 1/4" |
|---|---|
| Base To Center Height | 1 7/8" |
| Base Width | 1 3/4" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Spacing | 3 1/4" |
| Bore Dia. | 1 7/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1.063" |
| Dynamic Load Capacity | 5782 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Tapped Base |
| Housing Width | 1 22/25" |
|---|---|
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 1.862" |
| Insert | MH-23T |
| Length Through Bore | 1 11/16" |
| Locking Collar Outside Diameter | 2 9/16" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 4000 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 1 3/4" |
| Overall Length | 4.41" |
| Overall Width | 1 22/25" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact Seal |
| Shaft Locking Type | Concentric |
| Size Code | 2-17 |
| Static Load Rating | 3493 lbs. |
| Thread Depth | 3/4" |
| Thread Size | 1/2"-13 |
Product Details
Shipping Information
| Height | 13.46 |
|---|---|
| Length | 13.21 |
| Width | 5.08 |
| Country Of Origin | MX |
|---|---|
| Weight | 1.795500 |
Related Products
| Style | Model | Bore Dia. | Overall Length | Overall Width | Overall Height | Insert | Max. Speed | Base Width | Housing Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | TBMH-20T | - | - | - | - | - | - | - | - | 267.60 | |

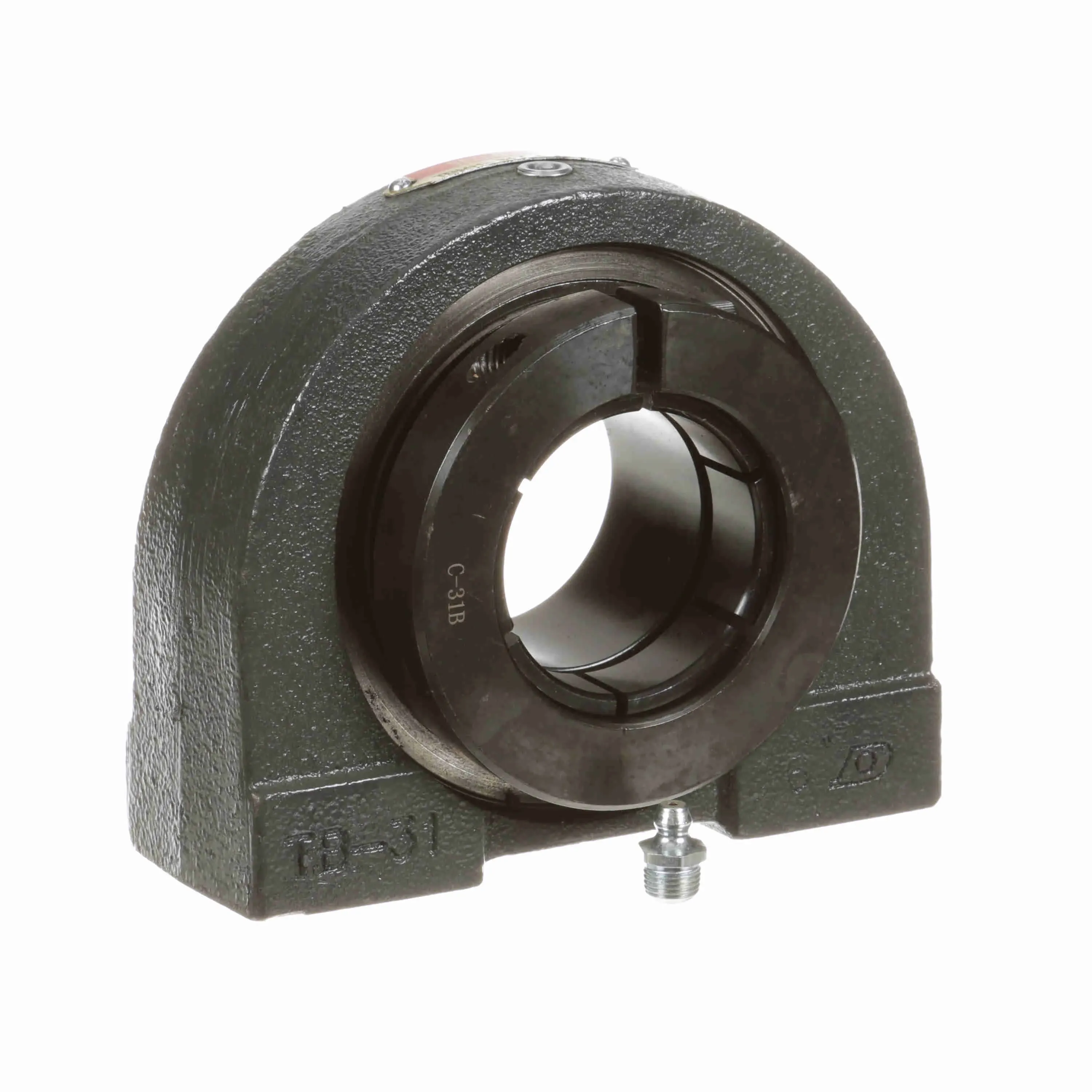

| B | TBMH-31T | 1 15/16" | 5 11/25" | 2.17" | 4.63" | MH-31T | 3000 RPM | 2" | Pillow Block, Tapped Base | 268.04 | |
| A | TBMH-16T | - | - | - | - | - | - | - | - | 194.63 | |
| A | TBMH-24T | - | - | - | - | - | - | - | - | 342.93 | |
| C | TBMH-27T | - | - | - | - | - | - | - | - | 1,124.94 | |
| A | TBMH-19T | - | - | - | - | - | - | - | - | 231.71 |
