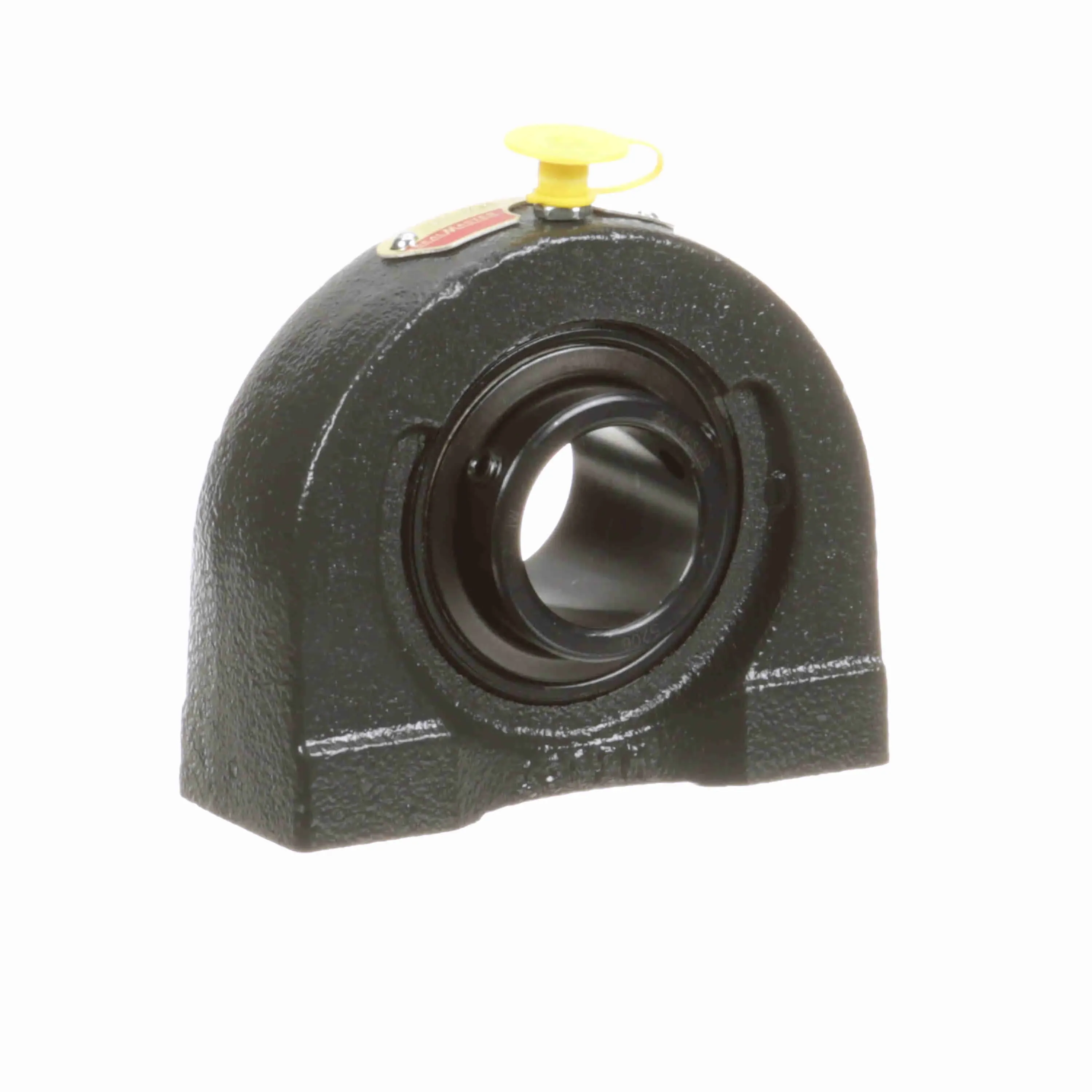

SEALMASTER TB-206 710093 Pillow Block Bearing, 2 Bolt Tap Base Pillow Block, 30mm Bore, Set Screw Mount

Item: BE3AGW
Model: TB-206
In Stock

Get it by Wednesday, Apr 15

£309.1/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ability To Relubricate Yes
Base Length 4"
Base To Center Height 1.688"
Base Width 1 1/2"
Bearing Insert Finish Black Oxide
Bearing Insert Material Steel
Bearing Insert Material Grade 52100
Bearing Insert Type Standard Duty
Bolt Spacing 3"
Bore Dia. 30 mm
Bore Shape Straight
Cage Material Polyphenylene Sulfide
Cage Type Land Riding Retainer
Centerline To Outermost Bearing Face 22/25"
Dynamic Load Capacity 4381 lbs.
End Cap No
Fixed Vs. Expansion Fixed
Grease Fitting Thread Size 1/4"-28
Housing Base Solid
Housing Coating Powder Coated
Housing Color Black
Housing Construction One Piece
Housing Material Cast Iron
Housing Style Pillow Block
Housing Type Pillow Block, Tapped Base
Housing Width 1 1/2"
Htc 8483.20.8040
Inner Race Heat Treat Method Zone Hardened
Inner Ring Outside Diameter 1.594"
Insert 5206
Length Through Bore 1 1/2"
Lubrication Type Lithium Complex NLGI 2 Grease
Max. Operating Temperature 220°F
Max. Speed 5450 RPM
Misalignment Capability -2° to +2°
Misalignment Type Static Only
Outer Ring Land Profile Standard
Overall Height 3.41"
Overall Length 4"
Overall Width 1 1/2"
Radial Clearance Standard
Rolling Element Ball Bearing
Seal Type Felt Labyrinth Seal
Setscrew Torque 65 lbs.-in. to 85 lbs.-in.
Shaft Locking Type Set Screw
Size Code 2-13
Static Load Rating 2567 lbs.
Thread Depth 0.63"
Thread Size 7/16"-14
Vibration Frequency Fundamental Train 0.0066 cPS
Vibration Frequency Inner Ring Defect 0.0905 cPS
Vibration Frequency Outer Ring Defect 0.0595 cPS
Vibration Frequency Roller Spin 0.0385 cPS

Product Details

Pillow Block Bearing

Shipping Information

height 4.29
length 11.43
width 11.58
country of origin US
weight 1.381500
