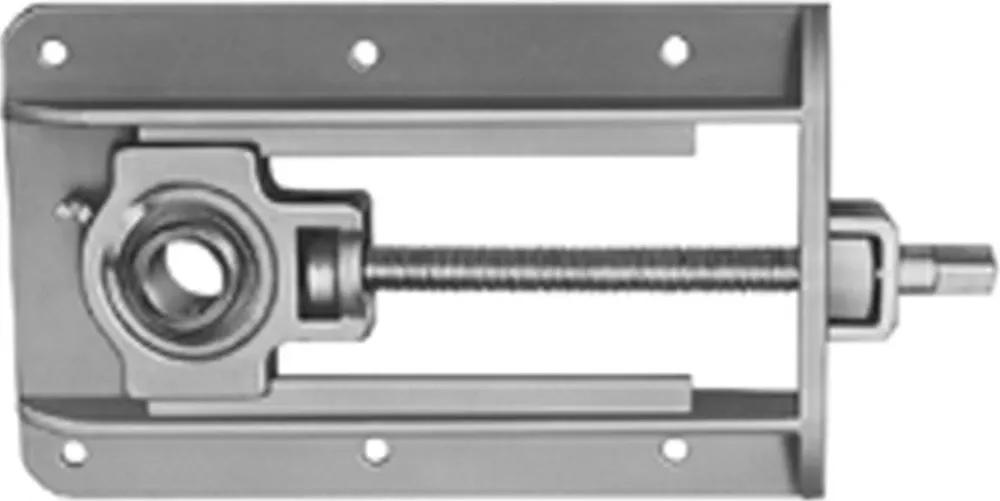

SEALMASTER STH-39-12 Take Up Bearing, 2.4375 Inch Dia, Setscrew Locking, Cast Iron Housing, Standard Felt Seal
Item: BE8QHR
Model: STH-39-12
In Stock
Get it by Wednesday, Apr 15
2 7/16"
12"
N/A
£1643.42/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Angle Of Misalignment | +/-2° |
|---|---|
| Bearing Insert Coating | Black Oxide |
| Bearing Material | Black Oxided Bearing Steel |
| Bearing Type | Ball Bearing |
| Bolt Size | 1" |
| Bore Shape | Straight |
| Centerline To Front Face | 1.5" |
| Duty Type | Standard Duty |
| Family Series | Sealmaster Bearings, STH Series |
| Finish/coating | Coated |
| Frame Base Width | 11.1875 |
| Frame Overall Height | 2.5 |
| Frame Overall Length | 22.375 |
| Frame Type | Center Pull Wide Slot |
| Housing Construction | One Piece |
| Housing Type | Wide-Slot Takeup |
| Housing Width | 2.375" |
|---|---|
| Inner Race Heat Treat Method | Zone Hardened |
| Insert Material | 52100 Bearing Steel, Black Oxided |
| Insert No. | 2 27 |
| Locking Device | Set Screw |
| Locking Type | Set Screws |
| Max. Operating Temp. | 220°F |
| Misalignment Type | Static Only |
| Operating Temp. Range | Max. 220°F |
| Overall Length | 25.5625" |
| Retainer Type | Land Riding |
| Seal Type | Felt Labyrinth |
| Series | STH Series |
| Shaft Height | 9.438" |
| Speed Max | 3000 RPM |
Product Details
Take Up Bearing
Shipping Information
| height | 6.35 |
|---|---|
| length | 56.83 |
| width | 28.4 |
|---|---|
| weight | 21.105000 |
