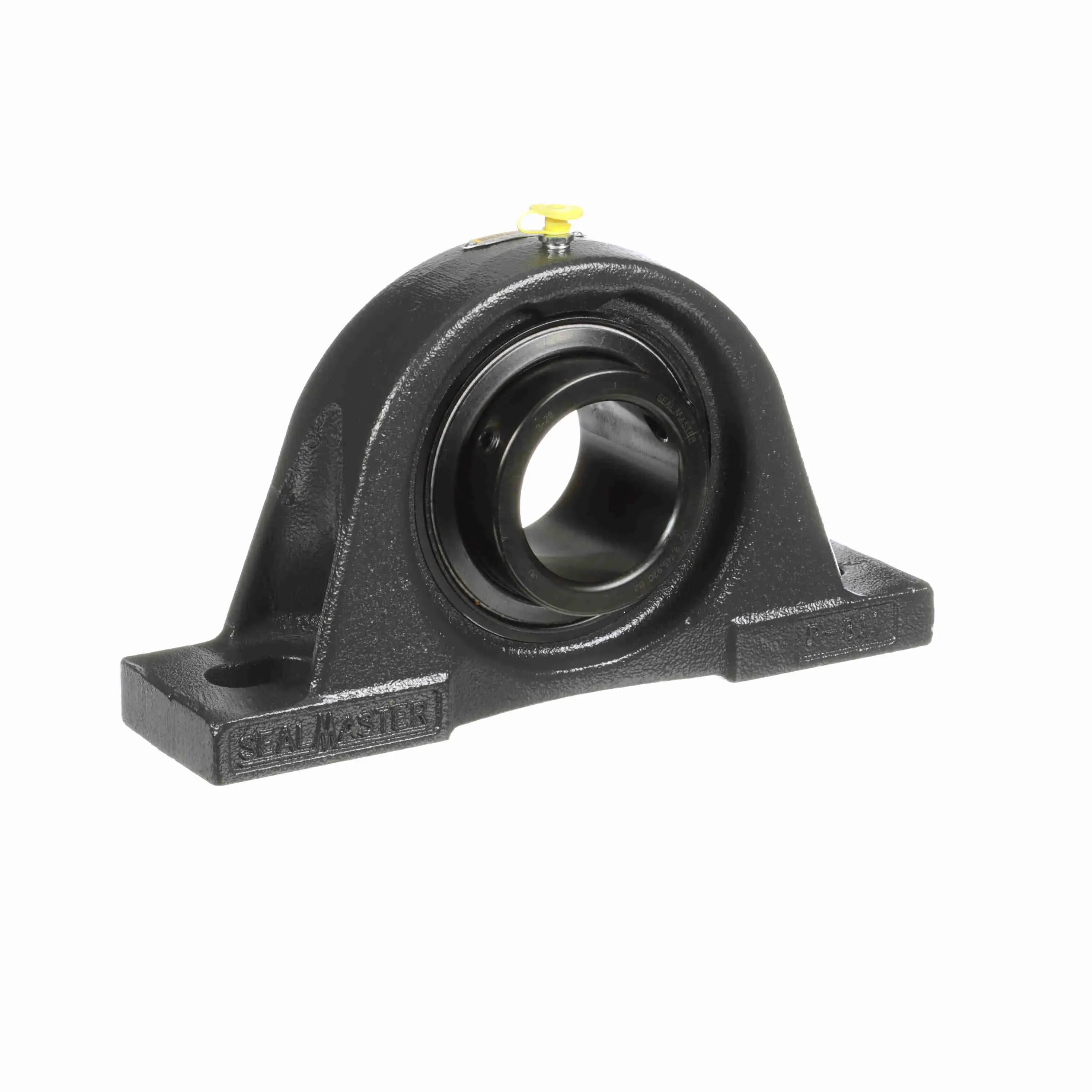

SEALMASTER SPM-40 CXU 700990 Pillow Block Bearing, 2 Bolt, 2.5 Inch Dia, Setscrew Locking, Standard Felt Seal

Item: BF4NCJ
Model: SPM-40 CXU
In Stock

Get it by Thursday, Apr 16

£1121.15/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ability To Relubricate Yes
Base Length 11 1/2"
Base To Center Height 3 1/8"
Base Width 3"
Bearing Insert Finish Black Oxide
Bearing Insert Material Steel
Bearing Insert Material Grade 52100
Bearing Insert Type Medium Duty
Bearing Type Medium Duty
Bolt Size 3/4"
Bolt Spacing Max 9.38"
Bore Dia. 2 1/2"
Bore Shape Straight
Cage Material Brass
Cage Type Land Riding Retainer
Centerline To Outermost Bearing Face 1.688"
Duty Series Medium
Dynamic Load Capacity 13971 lbs.
End Cap No
Fixed Vs. Expansion Fixed
Foot Height 22/25"
Grade Grade 52100
Grease Fitting Thread Size 1/8"
Grease Fitting Thread Type NPT
Height 3 1/4"
Housing Base Solid
Housing Coating Powder Coated
Housing Color Black
Housing Construction One Piece
Housing Material Cast Iron
Housing Style Pillow Block
Housing Type Pillow Block, Two Bolt
Htc 8483.20.8040
Inner Race Heat Treat Method Zone Hardened
Inner Ring Outside Dia. 3.438"
Inner Ring Outside Diameter 3.438"
Inner-race Heat-treat Method Zone Hardened
Insert 3-28 CXU
Length 11.44"
Length Through Bore 2.748"
Locking Device Setscrew
Lubricant Lithium Complex NLGI 2 Grease
Lubrication Type Lithium Complex NLGI 2 Grease
Max. Operating Temperature 220°F
Max. Speed 2500 RPM
Misalignment Type Static Only
Options Air Handling Housing Fit, Noise Tested
Outer Ring Land Profile Standard
Overall Height 6 1/4"
Overall Length 11 1/2"
Overall Width 3"
Product Line Sealmaster Gold Custom Select Suffix
Radial Clearance Standard
Setscrew Torque 350 lbs.-in. to 450 lbs.-in.
Shaft Locking Type Set Screw
Shaft Size 2 1/2"
Size Code 2-211
Static Load Rating 10063 lbs.
Width 7 1/2"

Product Details

Pillow Block Bearing

Shipping Information

height 19.05
length 29.06
width 8.26
country of origin US
weight 9.045000
