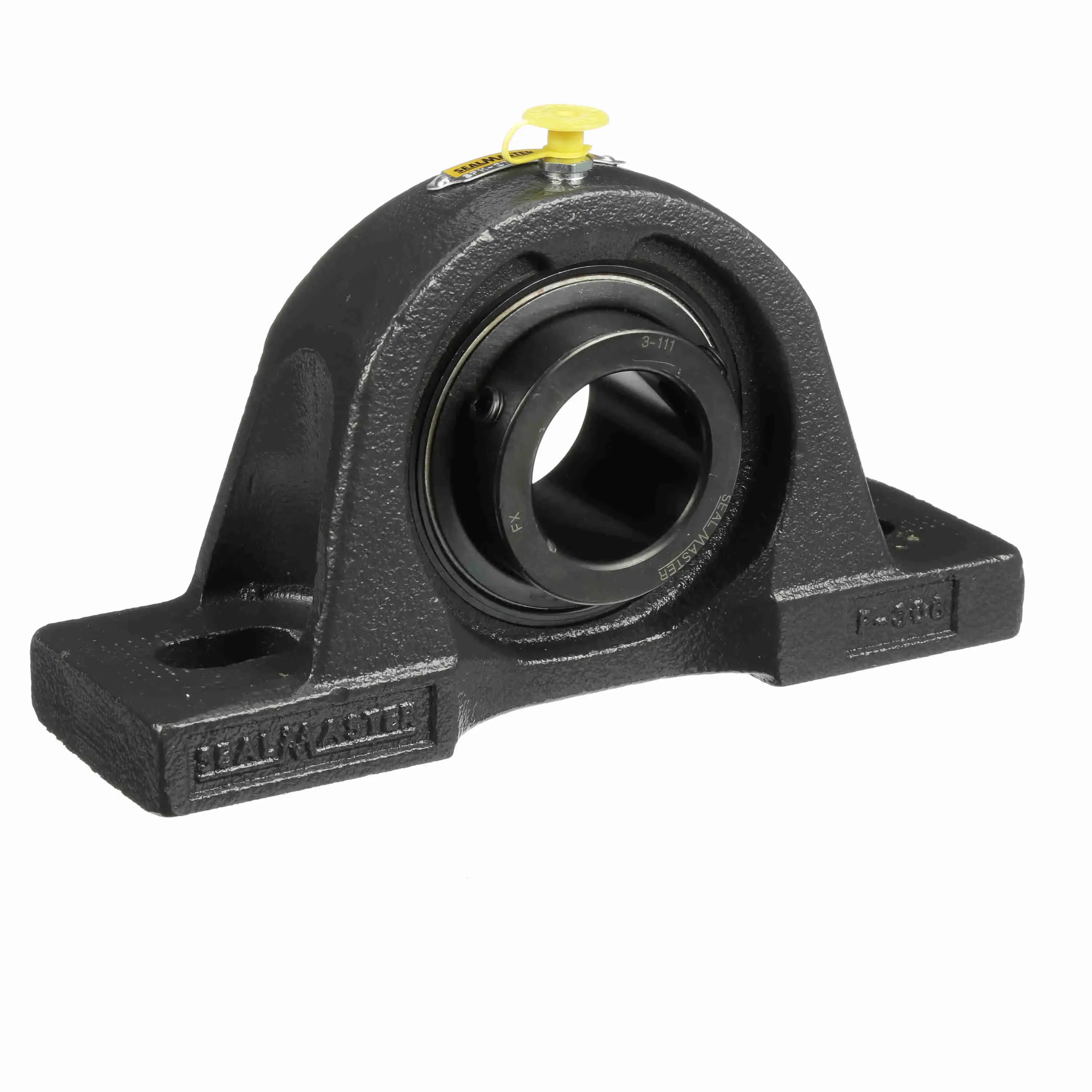

SEALMASTER SPM-27 CXU 700985 Pillow Block Bearing, 2 Bolt, 1.6875 Inch Dia, Setscrew Locking, Standard Felt Seal
Item: BD6NGL
Model: SPM-27 CXU
In Stock
Get it by Wednesday, Apr 15
£466.96/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ability To Relubricate | Yes |
|---|---|
| Base Length | 8 3/4" |
| Base To Center Height | 2.38" |
| Base Width | 2.38" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bolt Size | 5/8" |
| Bolt Spacing Max | 7.13" |
| Bolt Spacing Min | 5 22/25" |
| Bore Dia. | 1 11/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1.281" |
| Dynamic Load Capacity | 7901 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 3/4" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
|---|---|
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 2.469" |
| Insert | 3-111 CXU |
| Length Through Bore | 2.031" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 3550 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Options | Air Handling Housing Fit, Noise Tested |
| Outer Ring Land Profile | Standard |
| Overall Height | 4 14/25" |
| Overall Length | 8 3/4" |
| Overall Width | 2.38" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Setscrew Torque | 125 lbs.-in. to 165 lbs.-in. |
| Shaft Locking Type | Set Screw |
| Size Code | 2-111 |
| Static Load Rating | 5139 lbs. |
| Vibration Frequency Fundamental Train | 0.0067 cPS |
| Vibration Frequency Inner Ring Defect | 0.0994 cPS |
| Vibration Frequency Outer Ring Defect | 0.0673 cPS |
| Vibration Frequency Roller Spin | 0.0417 cPS |
Product Details
Pillow Block Bearing
Shipping Information
| height | 13 |
|---|---|
| length | 23.5 |
| width | 7.62 |
| country of origin | US |
|---|---|
| weight | 3.825000 |
Related Products
| Style | Model | Shaft Locking Type | Bore Dia. | Overall Length | Overall Width | Overall Height | Seal Type | Insert | Max. Speed | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

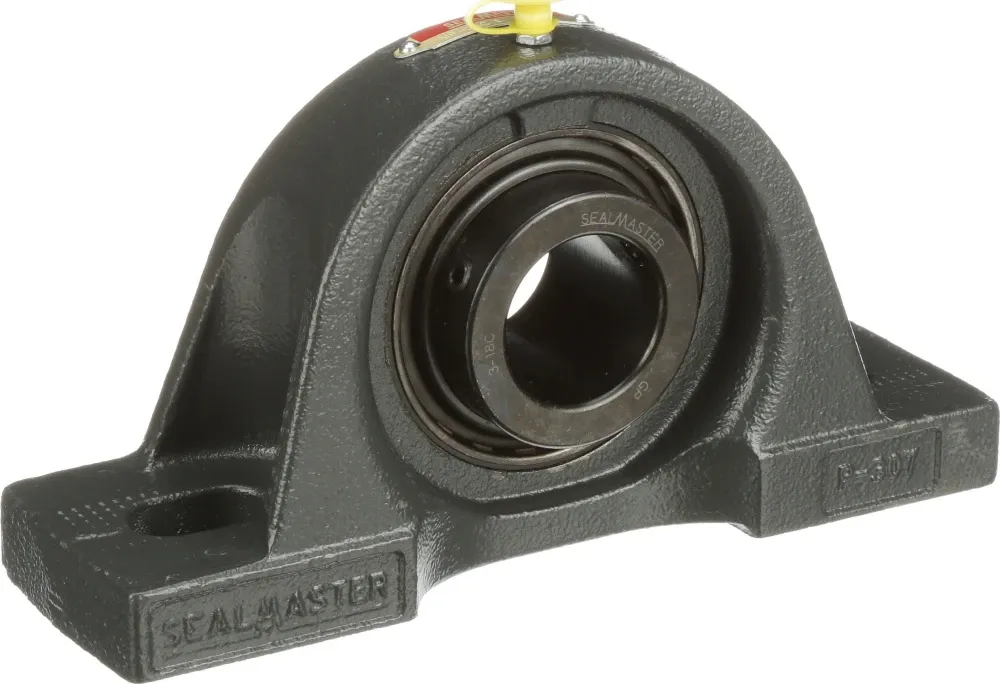

| A | SPM-23 HTA | - | - | - | - | - | Nomex Seals | - | - | 494.23 | |

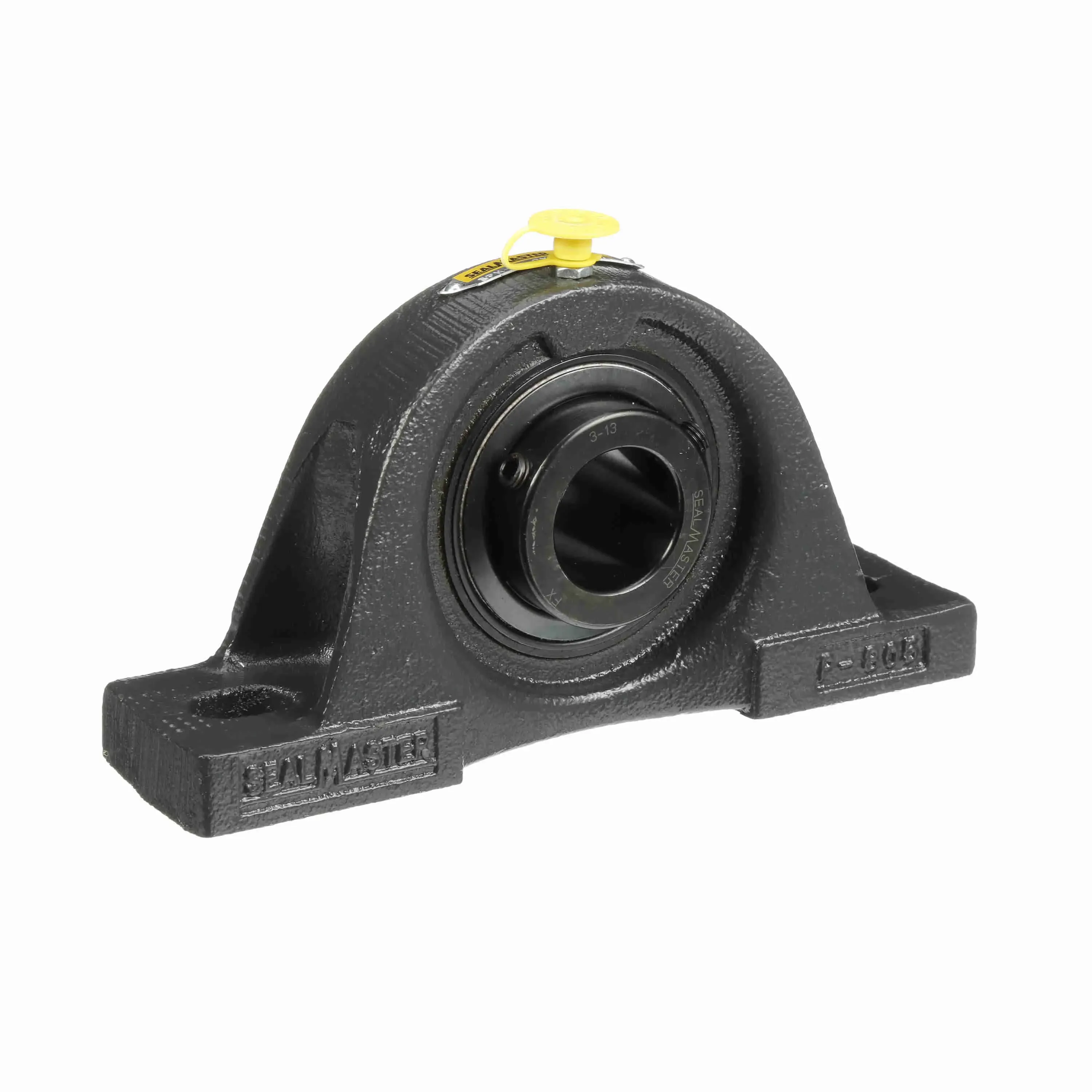

| B | SPM-19 CXU | Set Screw | 1 3/16" | 7 1/2" | 2" | 3 22/25" | Felt Labyrinth Seal | 3-13 CXU | 4650 RPM | 274.57 | |

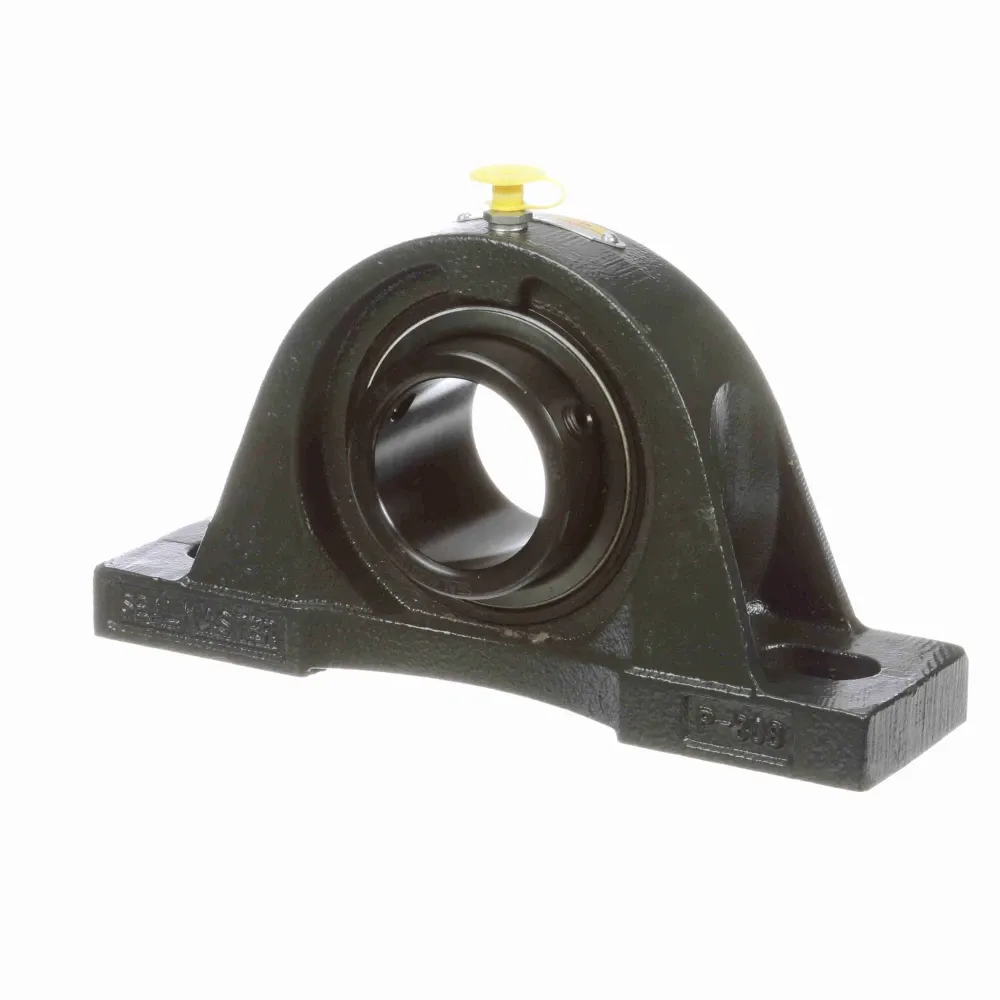

| C | SPM-30 CXU | - | - | - | - | - | - | - | - | 408.58 | |

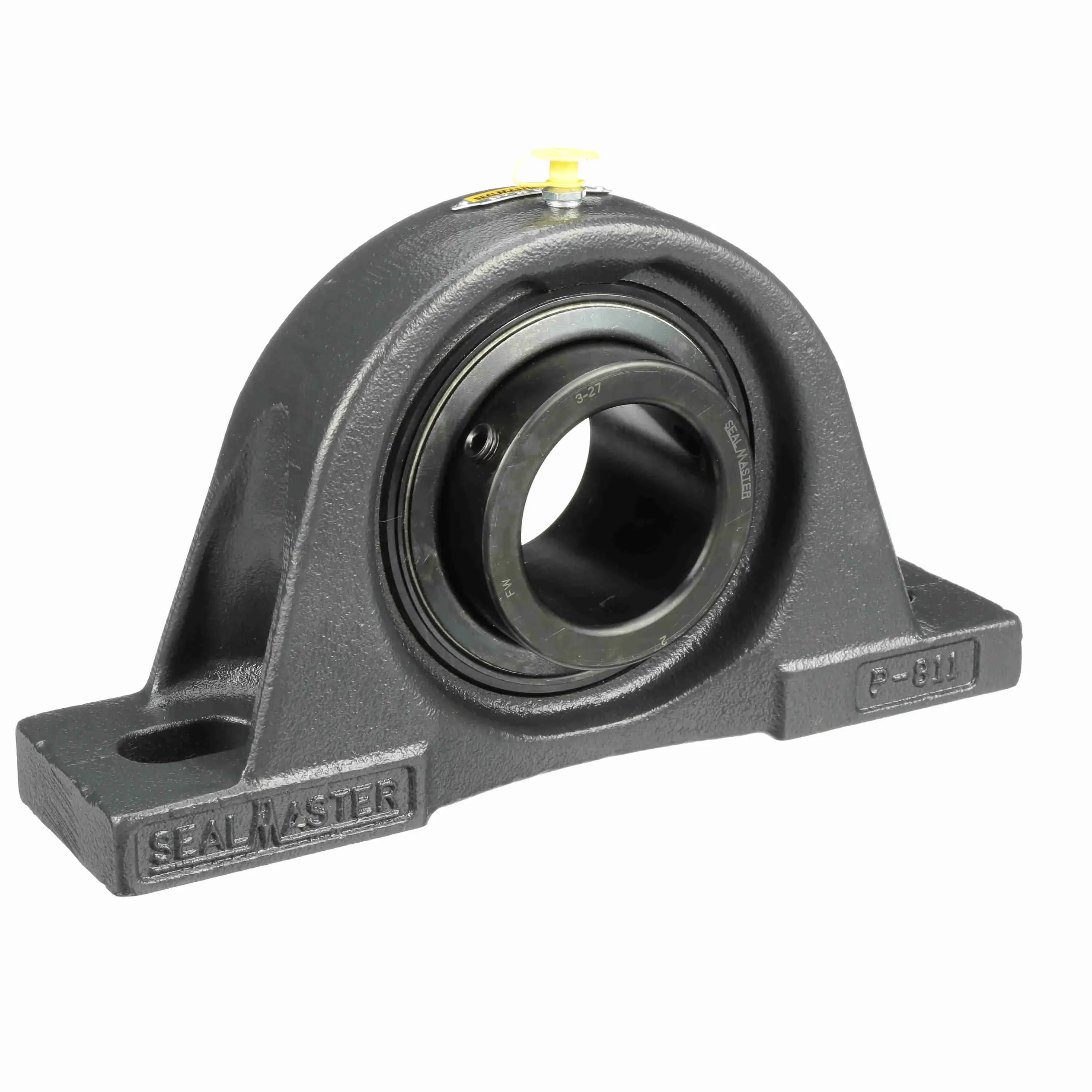

| D | SPM-28 CXU | Set Screw | 1 3/4" | 8 3/4" | 2.38" | 4 14/25" | Felt Labyrinth Seal | 3-112 CXU | 3550 RPM | 408.58 | |

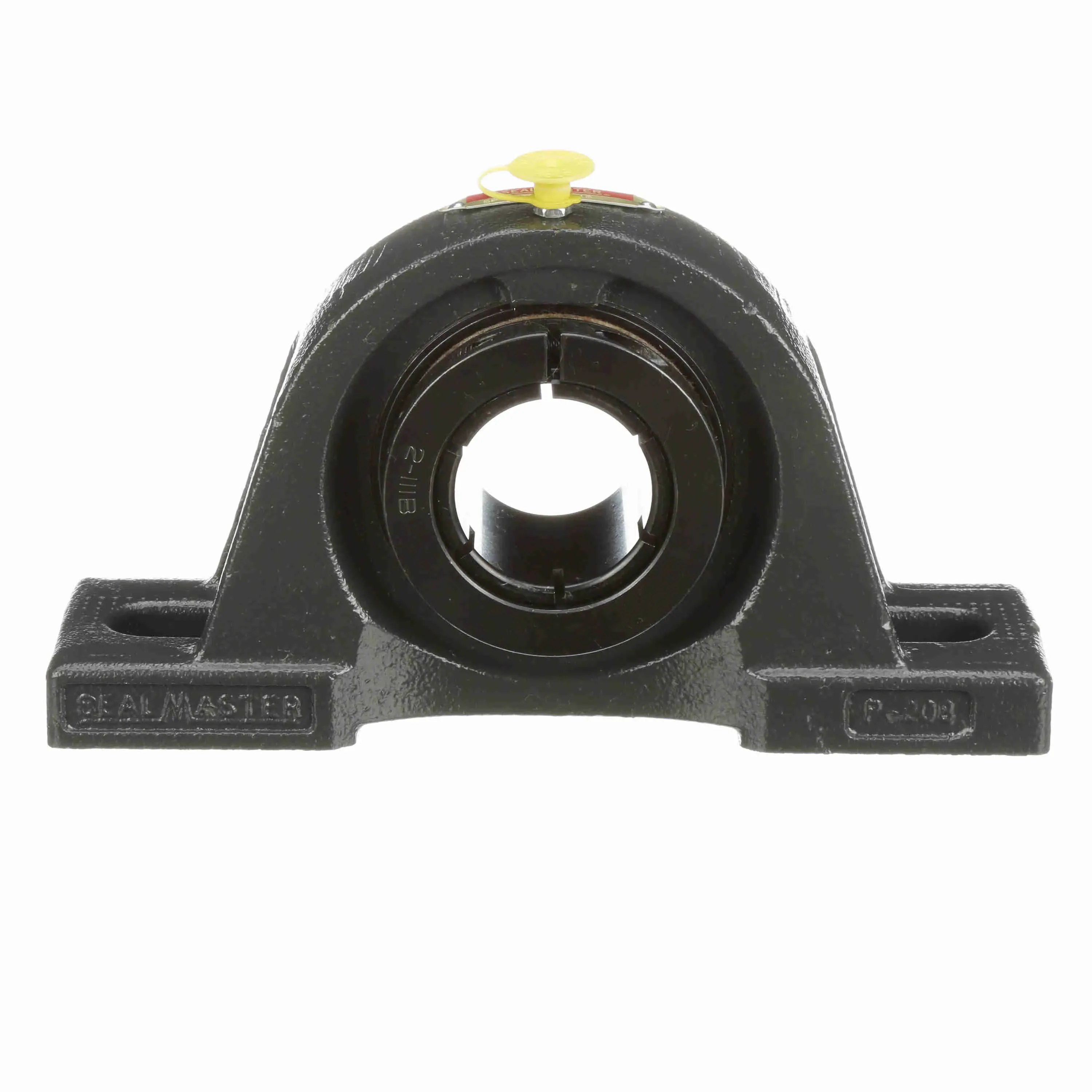

| E | SPM-31T CXU | Concentric | 1 15/16" | 10 1/2" | 2 1/2" | 5.31" | Felt Labyrinth Seal | 3-115T CXU | 4500 RPM | 444.84 | |
| E | SPM-27T CXU | Concentric | 1 11/16" | 8 3/4" | 2.38" | 4 14/25" | Felt Labyrinth Seal | 3-111T CXU | 5000 RPM | 403.94 | |

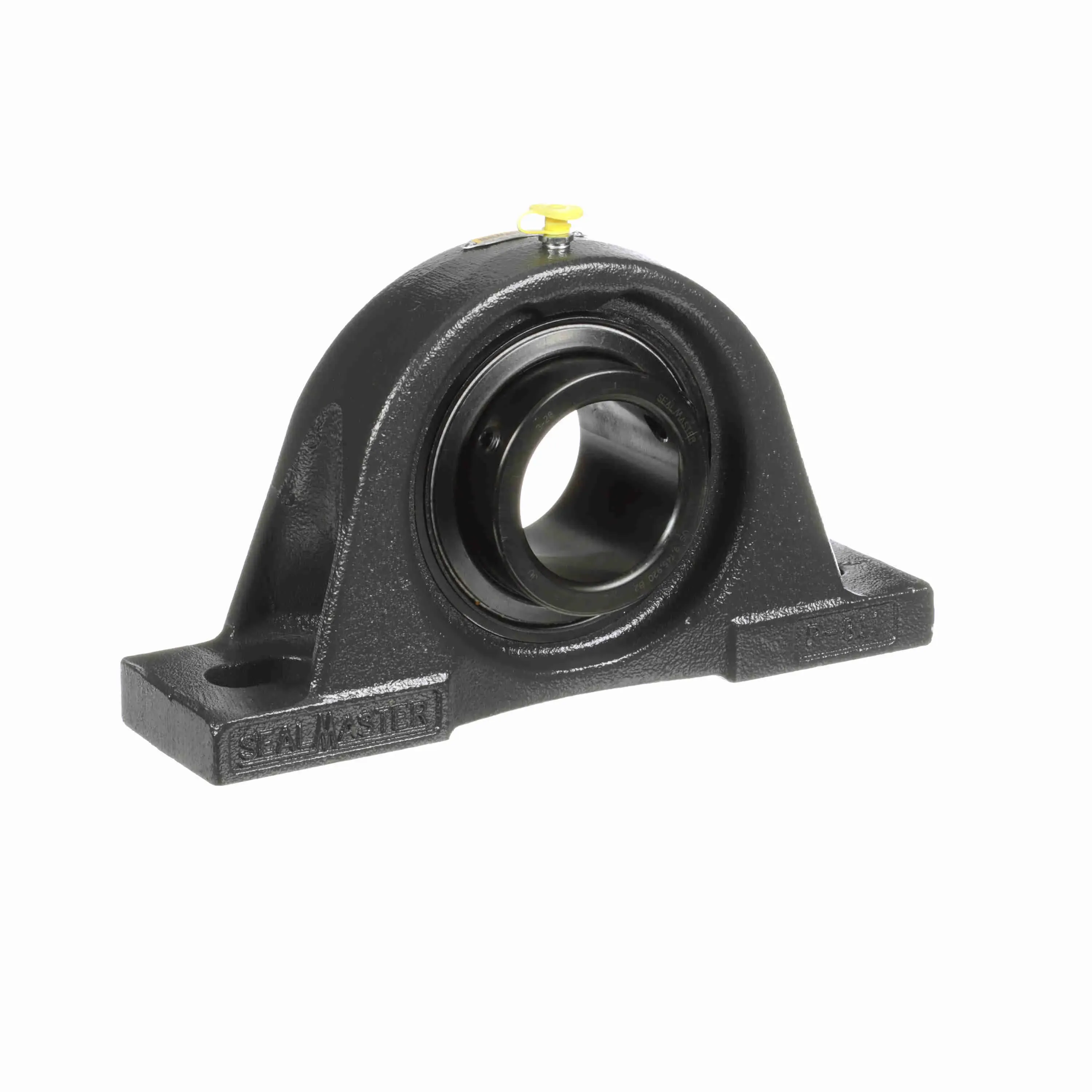

| F | SPM-40 CXU | Set Screw | 2 1/2" | 11 1/2" | 3" | 6 1/4" | - | 3-28 CXU | 2500 RPM | 934.29 |
