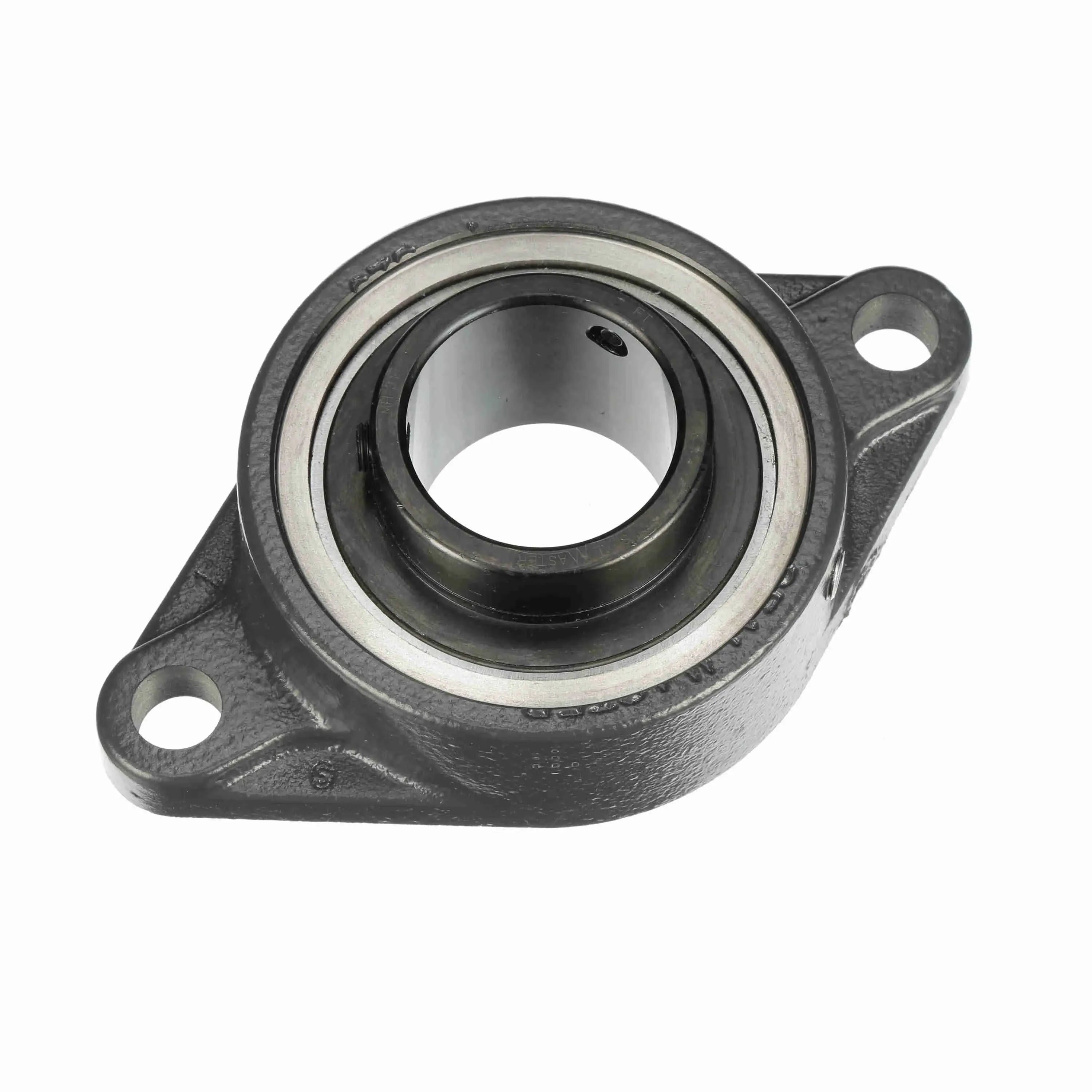

SEALMASTER SFTMH-31 711635 Mounted Cast Iron Two Bolt Flange Ball Bearing
Item: BE6GLV
Model: SFTMH-31
In Stock
Get it by Friday, Apr 17
£219.06/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bearing Insert Finish | Black Oxide |
|---|---|
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 5/8" |
| Bolt Spacing | 6 3/16" |
| Bore Dia. | 1 15/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 7889 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 14/25" |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Housing Type | Flange, Two Bolt |
| Htc | 8483.20.4040 |
|---|---|
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 2.469" |
| Insert | MH-31 |
| Length Through Bore | 2.031" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 3000 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 2.156" |
| Overall Height To End Cap | 2.98" |
| Overall Length | 7 11/25" |
| Overall Width | 4 14/25" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact Seal |
| Shaft Locking Type | Set Screw |
| Size Code | 2-115 |
| Static Load Rating | 5216 lbs. |
Product Details
Shipping Information
| Height | 5.84 |
|---|---|
| Length | 12.45 |
| Width | 19.81 |
| Country Of Origin | MX |
|---|---|
| Weight | 2.101500 |
