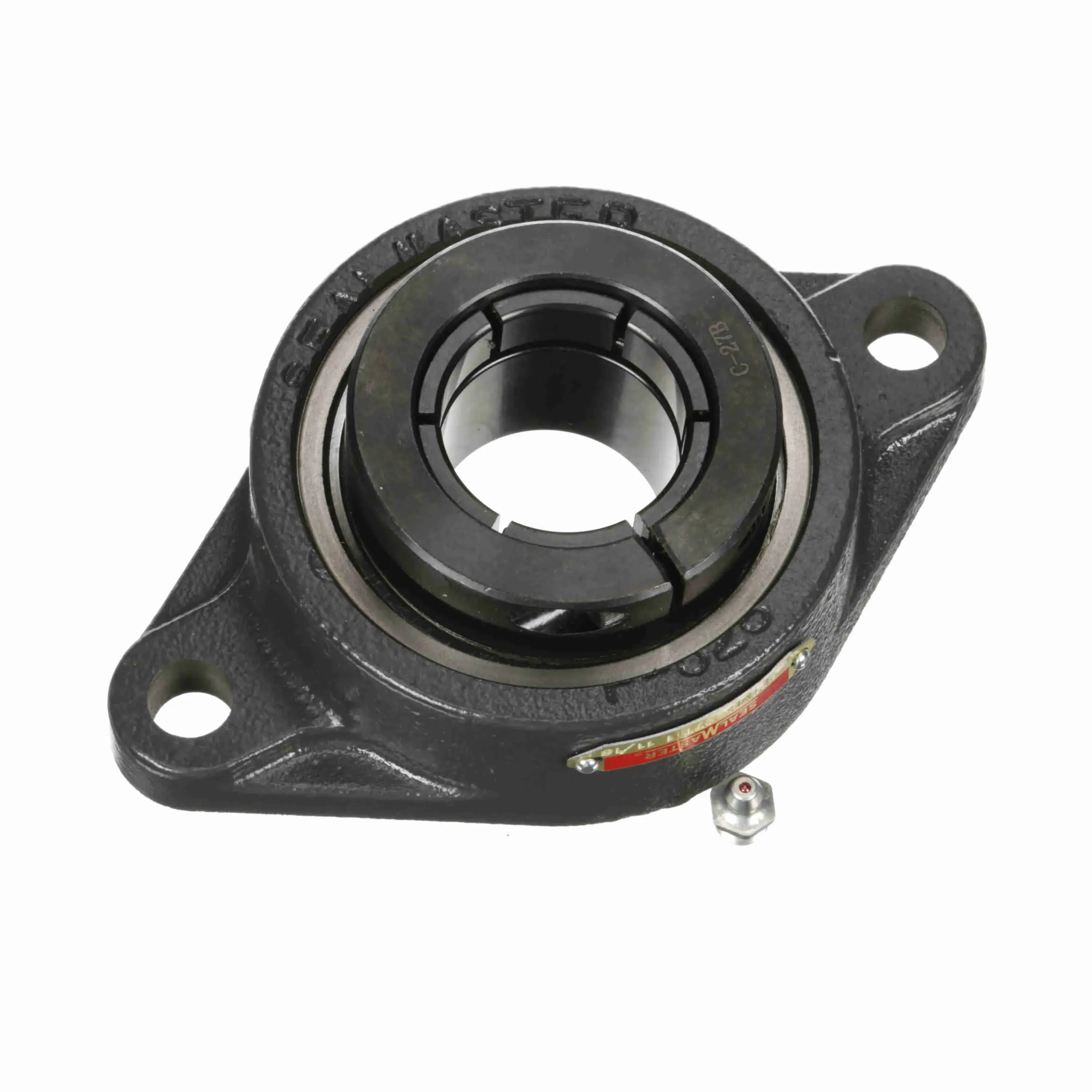

SEALMASTER SFTMH-27T 716584 Mounted Cast Iron Two Bolt Flange Ball Bearing

Item: BD8JKB
Model: SFTMH-27T
In Stock

Get it by Wednesday, Apr 15

We deliver to your doorstep under DAP terms. Customs clearance is for your account

Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Bearing Insert Finish Black Oxide
Bearing Insert Material Steel
Bearing Insert Material Grade 52100
Bearing Insert Type Standard Duty
Bolt Size 9/16"
Bolt Spacing 5.8438"
Bore Dia. 1 11/16"
Bore Shape Straight
Cage Material Polyphenylene Sulfide
Cage Type Land Riding Retainer
Dynamic Load Capacity 7901 lbs.
End Cap No
Fixed Vs. Expansion Fixed
Foot Height 14/25"
Grease Fitting Thread Size 1/4"-28
Housing Coating Powder Coated
Housing Color Black
Housing Construction One Piece
Housing Material Cast Iron
Housing Style Flange Block
Housing Type Flange, Two Bolt
Htc 8483.20.4040
Inner Race Heat Treat Method Zone Hardened
Inner Ring Outside Diameter 2.307"
Insert MH-27T
Length Through Bore 2"
Locking Collar Outside Diameter 2 15/16"
Lubrication Type Lithium Complex NLGI 2 Grease
Max. Operating Temperature 220°F
Max. Speed 3000 RPM
Misalignment Capability -2° to +2°
Misalignment Type Static Only
Outer Ring Land Profile Standard
Overall Height 2.109"
Overall Height To End Cap 3"
Overall Length 7.06"
Overall Width 4.38"
Pilot Configuration No Pilot
Radial Clearance Standard
Rolling Element Ball Bearing
Seal Type Single Lip Contact Seal
Shaft Locking Type Concentric
Size Code 2-111
Static Load Rating 5139 lbs.

Product Details

Yes

Shipping Information

height 13.46
length 20.83
width 5.84
country of origin MX
weight 2.133000
