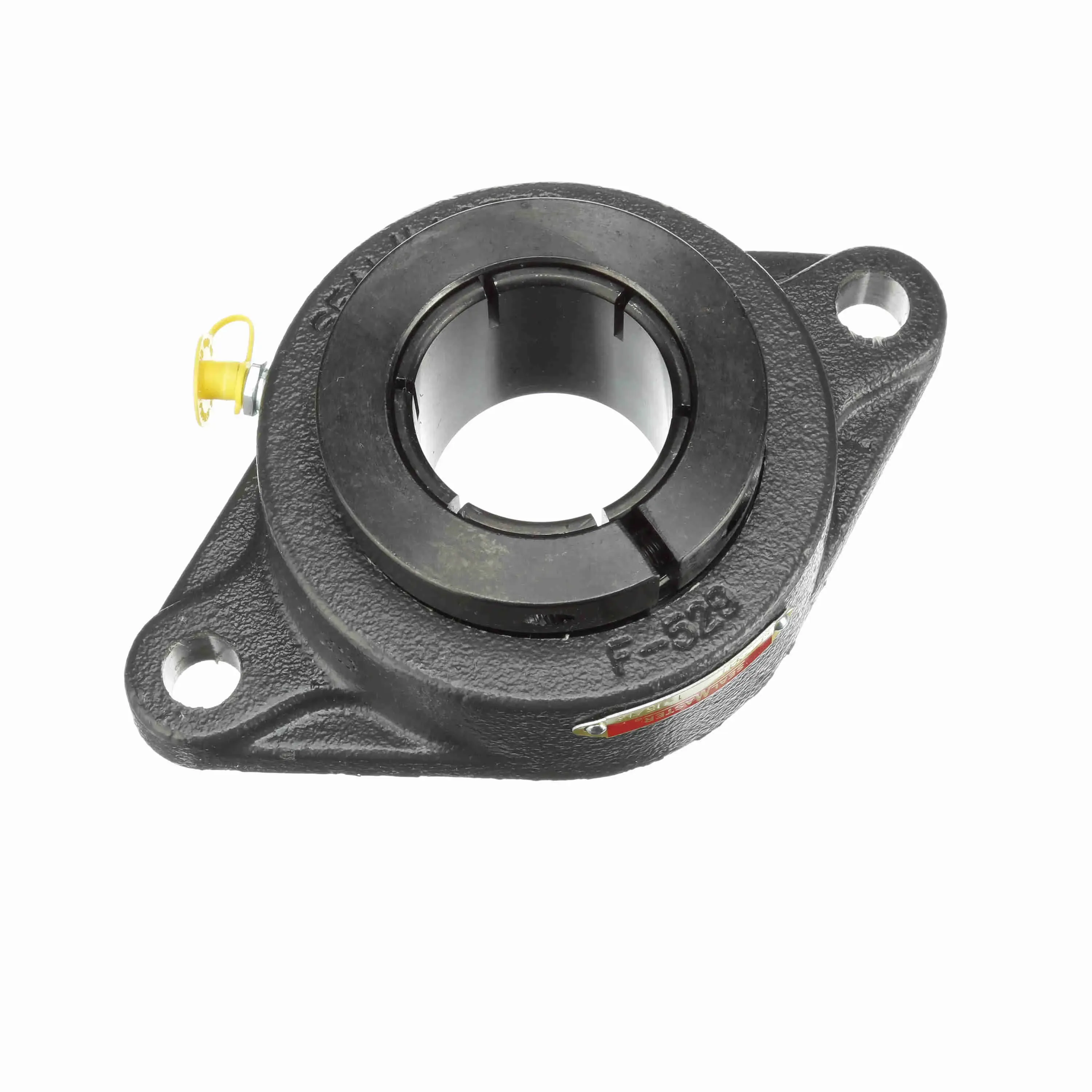

Sealmaster SFT-31T | 705489 | Mounted Cast Iron Two Bolt Flange Ball Bearing

SEALMASTER SFT-31T 705489 Mounted Cast Iron Two Bolt Flange Ball Bearing

Item: BE7MRH

Model: SFT-31T

19 In Stock

Ships within 2 days via

Specifications

Bearing Insert Finish	Black Oxide
Bearing Insert Material	Steel
Bearing Insert Material Grade	52100
Bearing Insert Type	Standard Duty
Bearing Type	Standard Duty
Bolt Size	9/16"
Bore Dia.	1 15/16"
Bore Shape	Straight
Cage Type	Land Riding Retainer
Duty Series	Standard
Dynamic Load Capacity	7889 lbs.
End Cap	No
Finish	Black Oxide
Fixed Vs. Expansion	Fixed
Foot Height	14/25"
Grade	Grade 52100
Grease Fitting Thread Size	1/8"
Grease Fitting Thread Type	NPT
Grease Type	Goldplex-HP
Height	7 1/2"
Housing Base	Solid
Housing Coating	Powder Coated
Housing Color	Black
Housing Construction	One Piece
Housing Material	Cast Iron
Housing Style	Flange Block
Htc	8483.20.4040

Inner Race Heat Treat Method	Zone Hardened
Inner Ring Outside Dia.	2.469"
Inner Ring Outside Diameter	2.469"
Inner-race Heat-treat Method	Zone Hardened
Insert	2-115T
Length	4.63"
Length Through Bore	2.17"
Locking Collar Outside Diameter	3.38"
Locking Device	Skwezloc Concentric
Lubricant	Lithium Complex NLGI 2 Grease
Lubrication Type	Lithium Complex NLGI 2 Grease
Max. Operating Temperature	220°F
Max. Speed	5000 RPM
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Overall Height	2.219"
Pilot Configuration	No Pilot
Product Type	Sealmaster Gold-Standard
Radial Clearance	Standard
Retainer Type	Metal Land Riding
Seal Flinger	Yes
Shaft Locking Type	Concentric
Shaft Size	1 15/16"
Size Code	2-115
Static Load Rating	5216 lbs.
Width	2.31"
no. links/ ft.	0

Country Of Origin	MX
Weight	2.596500
