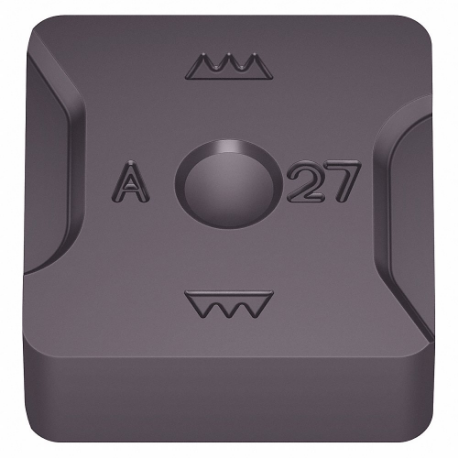

WALTER TOOLS SNEX1204PNN-A27 WAK15 Square Milling Insert, 1/2 Inch Inscribed Circle, 3/64 Inch Corner Radius, 3/16 Inch Thick

Item: CU8NBU
Model: SNEX1204PNN-A27 WAK15
13 In Stock

Ships within 2 days via

£70.28
5.00% off
£66.77/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ansi Code SNEX1204PNN-A27
Ansi Number SNEX1204PNN-A27
Chip-breaker Yes
Chip-breaker Code A27
Clearance Angle 0°
Coating Chemical vapor deposition
Coating Process CVD
Corner Radius 3/64"
Cutting Application Finishing
Cutting Edge Length 12.7 mm
Finish Titanium Aluminum Nitride, Aluminum Oxide, Titanium Nitride
Finish - Machining Ticn+Al2O3+(Tin)
Hole Type No Hole
Inscribed Circle 1/2"
Insert Size 1204
Insert Style SNEX
Iso Number SNEX1204PNN-A27
Manufacturer Grade Wak15
Material Carbide
Material - Machining Carbide
Measurement System Fractional Inch
Number Of Cutting Edges 4
Primary Material Application Cast Iron
Primary Material Application Iso Code K
Rake Negative
Shape Square
Style SNEX
System Of Measurement Imperial
Thickness 3/16"
Indexable Insert Tolerance Class Class E
Insert Thickness 0.188"
No. Of Cutting Edges 4
Radius 0.047"
Wiper Cutting Edge Length 0.406"

Product Details

Shipping Information

Height 2.54
Length 2.54
Width 2.54
Country Of Origin DE
Weight 0.099000
