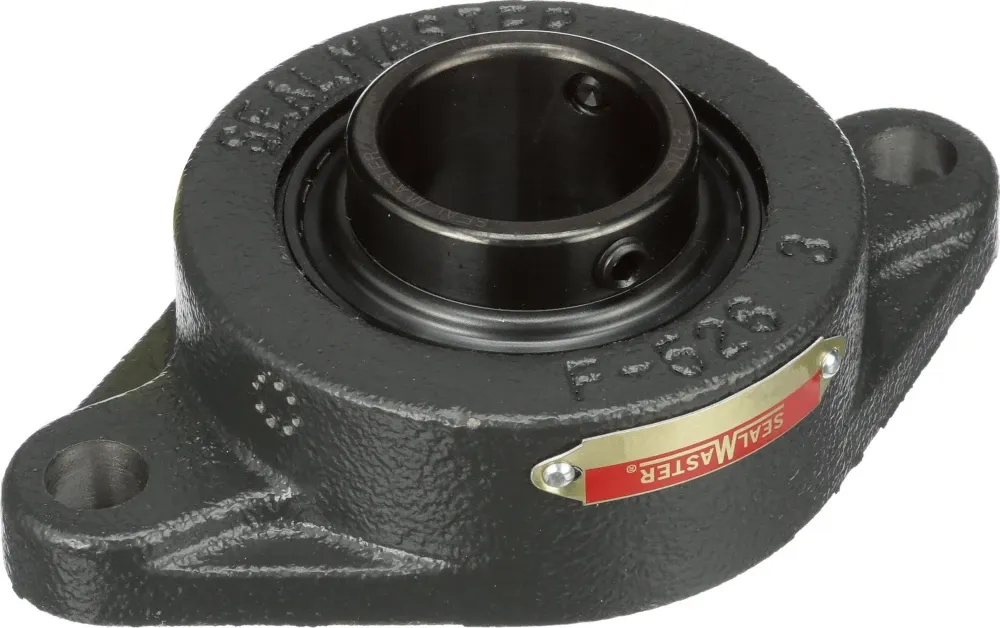

SEALMASTER SFT-23H RM Flange Bearing, 2 Bolt, 1.43 Inch Dia, Setscrew Locking, High Performance Triple Lip Seal
Item: BD8YTT
Model: SFT-23H RM
13 In Stock
Ships within 2 days via
£279.23/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ability To Relubricate | No |
|---|---|
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Type | Standard Duty |
| Bolt Size | 1/2" |
| Bolt Spacing | 5 1/8" |
| Bore Dia. | 1 7/16" |
| Bore Shape | Straight |
| Cage Material | PPS |
| Cage Type | Land Riding Retainer |
| Duty Series | Standard |
| Dynamic Load Capacity | 5782 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 14/25" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/4"-28 |
| Height | 5" |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Material Finish | Powder Coated |
| Housing Type | Flange, Two Bolt |
| Inner Ring Outside Dia. | 1.859" |
| Inner-race Heat-treat Method | Zone Hardened |
| Insert | 2-17H RM |
| Length | 5" |
| Length Through Bore | 1.688" |
|---|---|
| Locking Device | Setscrew |
| Locking Type | Setscrew |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 2000 RPM |
| Misalignment Capability | ±2° Misalignment Static Only |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Tapered Lands |
| Overall Height | 1 3/4" |
| Overall Length | 6.13" |
| Overall Width | 3 3/4" |
| Pilot Configuration | No Pilot |
| Product Type | Sealmaster-High Performance Reduced Maintenance |
| Radial Clearance | Standard |
| Rolling Element | Ball |
| Seal Type | High Performance Triple Lip Seal |
| Setscrew Torque | 125 lbs.-in. to 165 lbs.-in. |
| Shaft Size | 1 7/16" |
| Size Code | 2-17 |
| Static Radial Load Capacity | 3493 lbs. |
| Vibration Frequency Fundamental Train | 0.007 Hz |
| Vibration Frequency Inner Ring Defect | 0.091 Hz |
| Vibration Frequency Outer Ring Defect | 0.06 Hz |
| Vibration Frequency Roller Spin | 0.039 Hz |
| Width | 2" |
Product Details
Flange Bearing
Shipping Information
| height | 4.44 |
|---|---|
| length | 15.57 |
| width | 9.52 |
|---|---|
| weight | 1.440000 |
