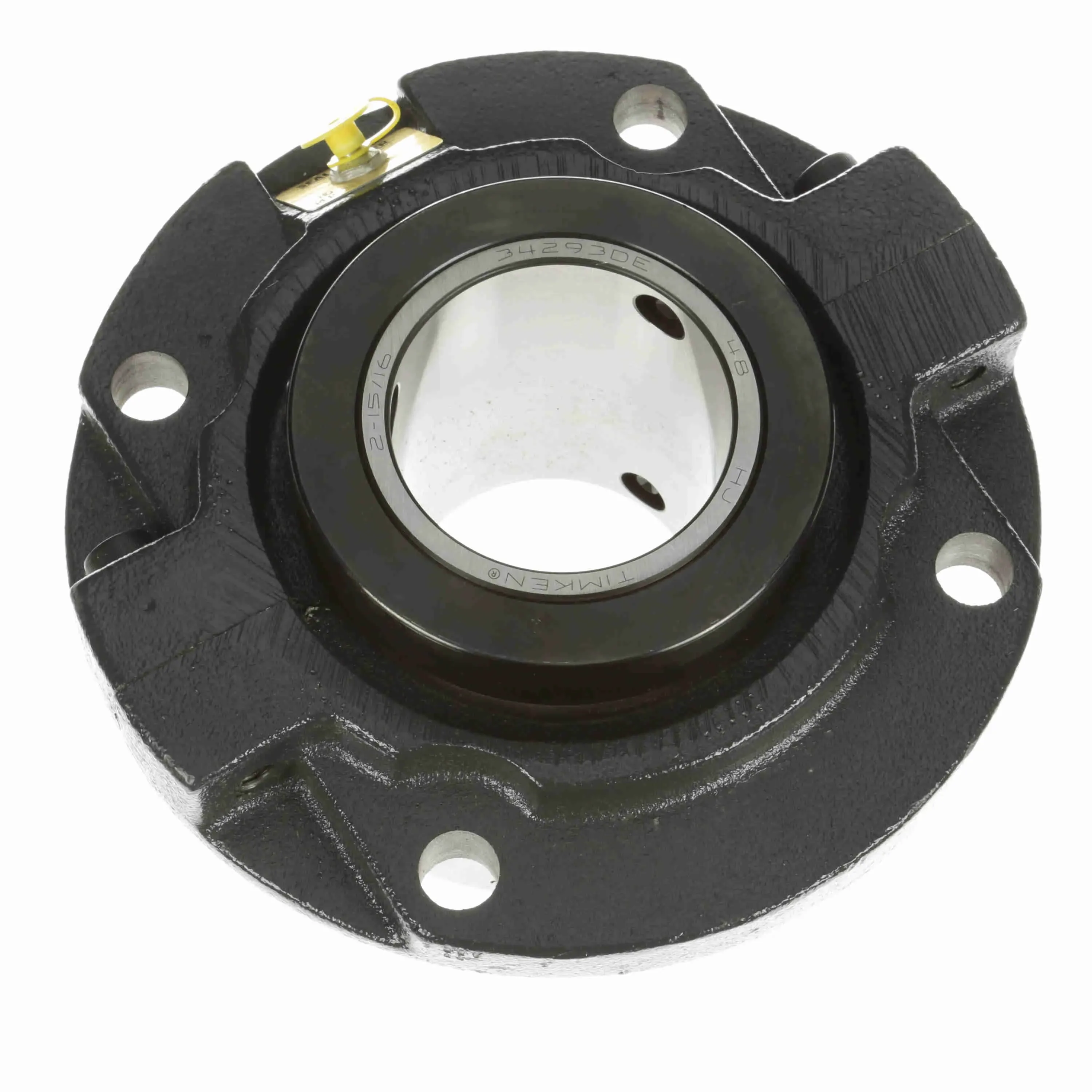

| Item | Bearing |
| Bolt Circle Dia. | 7 1/2" |
| Bore Dia. | 3" |
| Bore Type | Cylindrical |
| Closure Type | Double Sealed |
| Dynamic Load Capacity | 9630 lbf. |
| Flange Thickness | 3/4" |
| Housing Material | Cast Iron |
| Housing Material Finish | Powder Coated |
| Housing Type | Circular |
| Included Bearing | RFP-300 |
| Includes | Set Screw |
| Inner Ring Width | 4.718" |
| Insert Material | Alloy Steel |
| Insert Type | Tapered Roller |
| Load Direction | Radial, Thrust |
| Lubricant Material Class | NLGI#2 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Max. Angular Misalignment | 3° |
| Max. Speed | 1750 RPM |
| Max. Temp. | 220°F |
| Min. Temp. | -20°F |
| Mount Hole Center-to-center Height | 7 1/2" |
| Mount Hole Center-to-center Length | 7 1/2" |
| Mounting Bolt Size | 5/8" |
| Mounting Hardware Included | Yes |
| Number Of Mounting Holes | 4 |
| Overall Height | 8 3/4" |
| Overall Length | 8 3/4" |
| Overall Width | 2" |
| Rolling Element Rows | 2 |
| Seal Material | Felt |
| Seal Type | Labyrinth |
| Self Lubricating Bearing | No |
| Shaft Locking Type | Set Screws |
| Static Radial Load Capacity | 4260 lbf. |
| Bearing Insert Material | Alloy Steel |
| Bearing Insert Type | Tapered Roller |
| Bolt Circle Diameter | 7.5" |
| Bore Diameter | 3" |
| Closure | Double Sealed |
| Expansion Type | Fixed |
| Includes Mounting Hardware | Yes |
| Maximum Speed | 1750 RPM |
| Ship weight (kg) | 12.02 |
| Ship height (cm) | 22.56 |
| Ship length (cm) | 22.56 |
| Ship width (cm) | 21.92 |
| Country of Origin | US |
