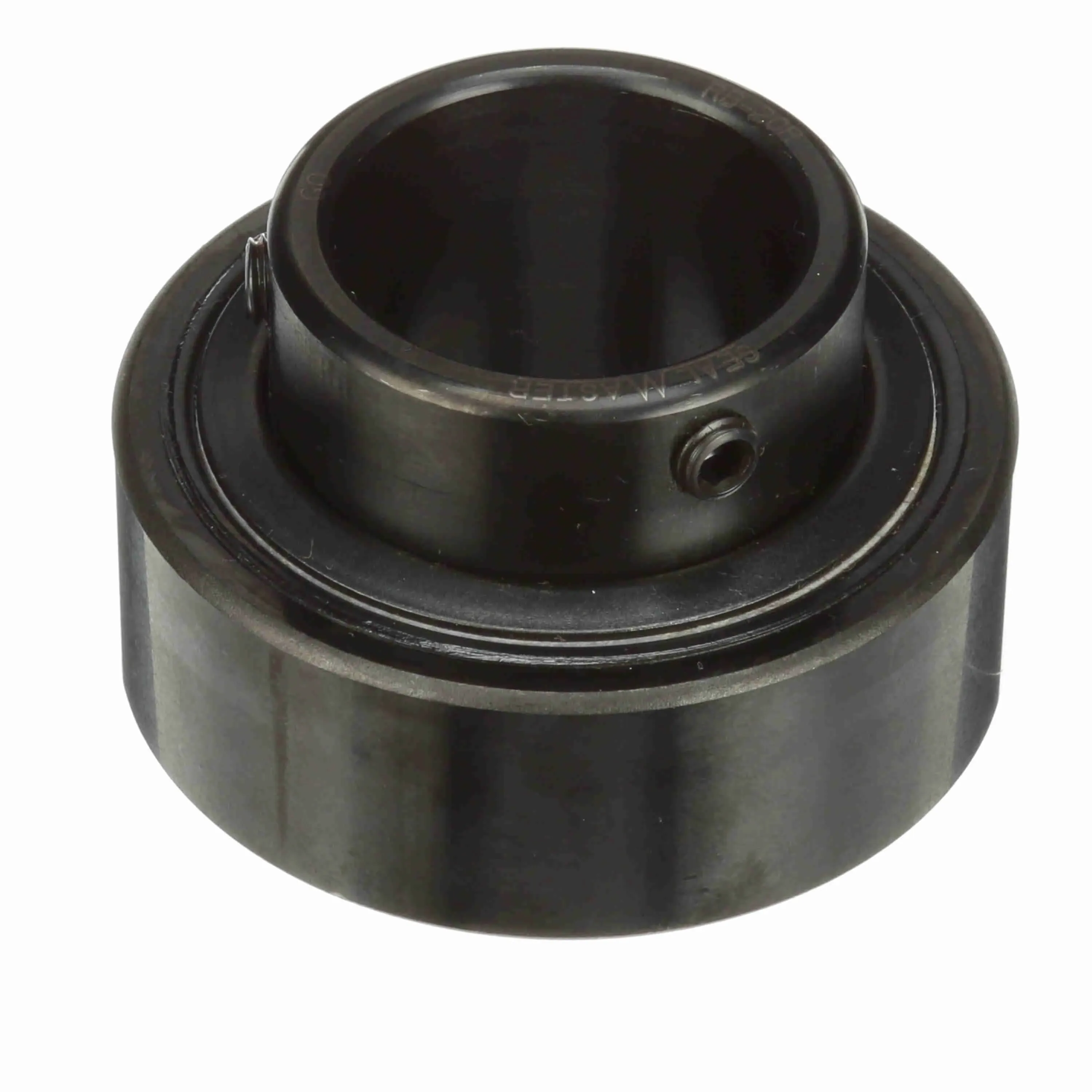

SEALMASTER RB-20R 701149 Insert Bearing, 1.25 Inch Dia, Setscrew Locking, Black Oxide, Standard Felt Seal
Item: BE3LPR
Model: RB-20R
In Stock
Get it by Friday, Apr 17
£105.9/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ability To Relubricate | No |
|---|---|
| Bearing Insert Finish | Black Oxide |
| Bore Dia. | 1 1/4" |
| Bore Shape | Straight |
| Cage Material | Molded Nylon |
| Centerline To Front Face | 1.063" |
| Duty/series | Standard Series |
| Dynamic Radial Load Capacity | 4381 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | No |
| Housing Type | Insert Only |
| Htc | 8482.10.5052 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Length | 1 5/8" |
| Inner Race Profile | Wide Inner Ring |
| Inner Ring Outside Diameter | 1.281" |
| Insert Material | Steel |
| Insert Material Finish | Black Oxide |
| Insert Material Grade | 52100 |
| Internal Clearance | Standard |
| Locking Type | Set Screw |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
|---|---|
| Max. Operating Temperature | 220°F |
| Max. Speed | 5450 RPM |
| Measure Units | Inch |
| Misalignment Type | Static Only |
| Outer Race Od | 2.441" |
| Outer Race Profile | Cylindrical |
| Outer Race Width | 7/8" |
| Outer Ring Land Profile | Standard |
| Overall Width | 1 5/8" |
| Platform | Gold Line Ball Bearing |
| Precision Rating | Abec 1 |
| Radial Static Load Capacity | 2567 lbs. |
| Radius | 1/25" |
| Replaceable Insert | No |
| Retainer Type | Land Riding Retainer |
| Rolling Element | Ball Bearing |
| Series | Rb Series |
| Set Screw Thread Size | 1/4"-28 |
| Type Of Seal | Felt Labyrinth Seal |
Product Details
Shipping Information
| Height | 3.96 |
|---|---|
| Length | 6.98 |
| Width | 6.98 |
| Country Of Origin | MX |
|---|---|
| Weight | 0.360000 |
Related Products
| Style | Model | Bore Dia. | Overall Width | Max. Speed | Dynamic Radial Load Capacity | Housing Type | Lubrication Type | Insert Material Grade | Finish | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | RB-16 | 1" | 1 3/8" | 6350 RPM | 2801 lbs. | Insert Only | Lithium Complex NLGI 2 Grease | 52100 | - | 69.96 | |
| B | RB-8 | 1/2" | 1.281" | 7300 RPM | 2611 lbs. | Insert Only | Lithium Complex NLGI 2 Grease | 52100 | - | 72.39 | |
| C | RB-15 | 15/16" | 1 3/8" | 6350 RPM | 2801 lbs. | Insert Only | Lithium Complex NLGI 2 Grease | 52100 | - | 74.07 | |
| D | RB-19 | 1 3/16" | 1 5/8" | 5450 RPM | 4381 lbs. | Insert Only | Lithium Complex NLGI 2 Grease | 52100 | - | 83.35 | |
| E | RB-16C | 1" | 1 3/8" | 6350 RPM | 2801 lbs. | Insert Only | Lithium Complex NLGI 2 Grease | 52100 | - | 69.96 | |
| B | RB-12 | 3/4" | 1.281" | 7300 RPM | 2611 lbs. | Insert Only | Lithium Complex NLGI 2 Grease | 52100 | - | 68.27 | |
| F | RB-18C | - | - | - | - | - | - | - | - | 92.68 |
