| Ability To Relubricate | Yes |
| Base Height | 0.19" |
| Base Length | 9 1/2" |
| Base To Center Height | 2 11/16" |
| Base Width | 2 3/4" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bearing Material Grade | Grade 52100 |
| Bolt Size | 5/8" |
| Bolt Spacing Max | 7.63" |
| Bolt Spacing Min | 6 22/25" |
| Bore Dia. | 2 7/16" |
| Bore Diameter | 2 7/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1.563" |
| Closure | Double Sealed |
| Dynamic Load Capacity | 11789 lbs. |
| Dynamic Radial Load Capacity | 11789 lbf. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 0.81" |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |

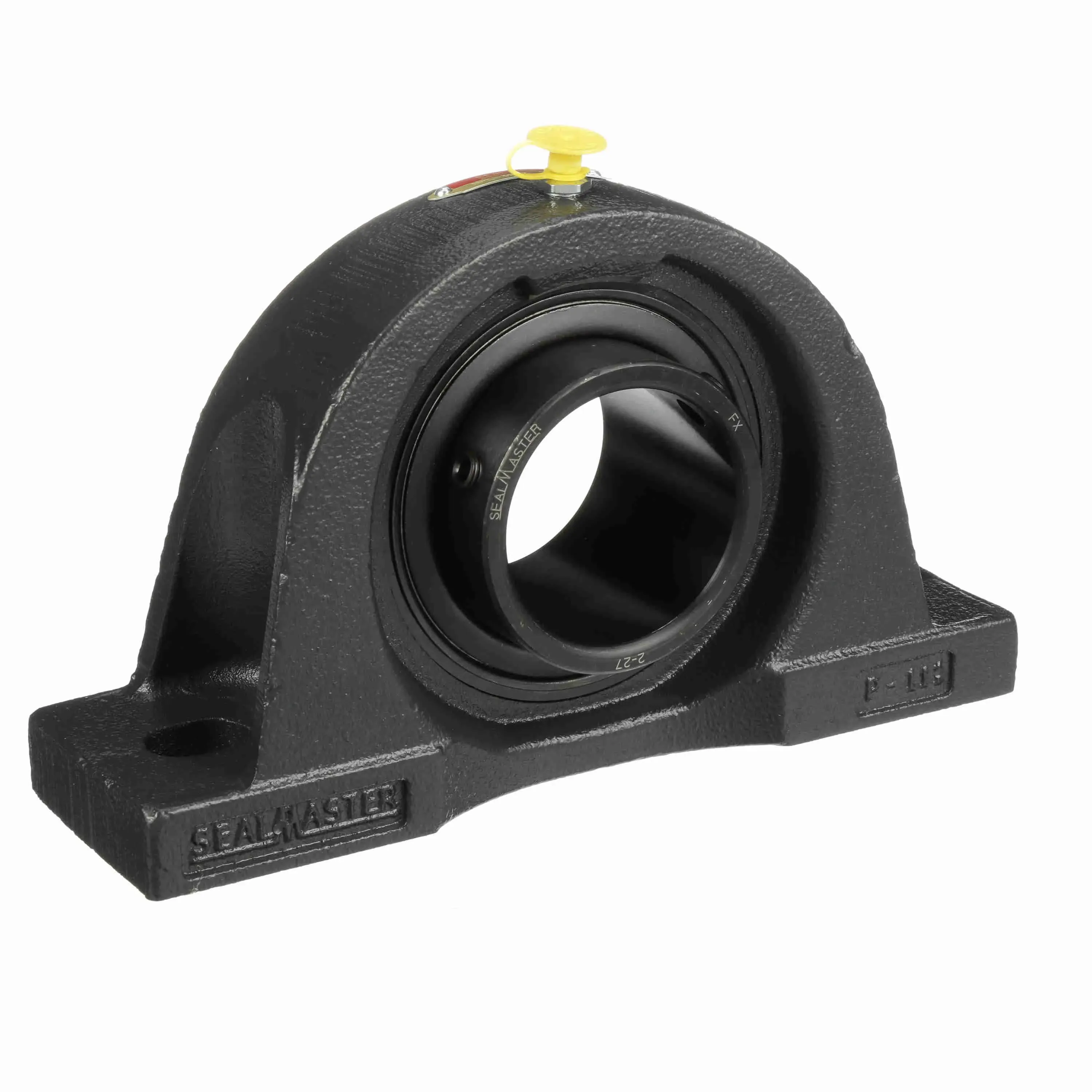

| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt, Low Base |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 2.984" |
| Insert | 2-27 |
| Length Through Bore | 2.563" |
| Lubricant Material | NGLI #2 Equivalent |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 3000 RPM |
| Maximum Misalignment Angle | 2° |
| Maximum Temperature | 220°F |
| Minimum Temperature | -20°F |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Mount Hole Center-to-center Length | 7 5/8" |
| Mount Type | Bolt-Through |
| Mounting Bolt Size | 5/8" |
| Mounting Surface To Shaft Center Height | 2 11/16" |
| Number Of Mount Holes | 2 |
| Outer Ring Land Profile | Standard |
| Overall Height | 5 1/2" |
| Overall Length | 9 1/2" |
| Overall Width | 2 3/4" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Material | Felt |
| Seal Type | Felt Labyrinth Seal |
| Setscrew Torque | 230 lbs.-in. to 300 lbs.-in. |
| Shaft Locking Type | Set Screw |
| Size Code | 2-27 |
| Static Load Rating | 8150 lbs. |
| Static Radial Load Capacity | 8150 lbf. |
| Vibration Frequency Fundamental Train | 0.0068 cPS |
| Vibration Frequency Inner Ring Defect | 0.0989 cPS |
| Vibration Frequency Outer Ring Defect | 0.0678 cPS |
| Vibration Frequency Roller Spin | 0.0432 cPS |
| Ship weight (kg) | 6.12 |
| Ship height (cm) | 26.37 |
| Ship length (cm) | 16.51 |
| Ship width (cm) | 7.62 |
| Country of Origin | US |
