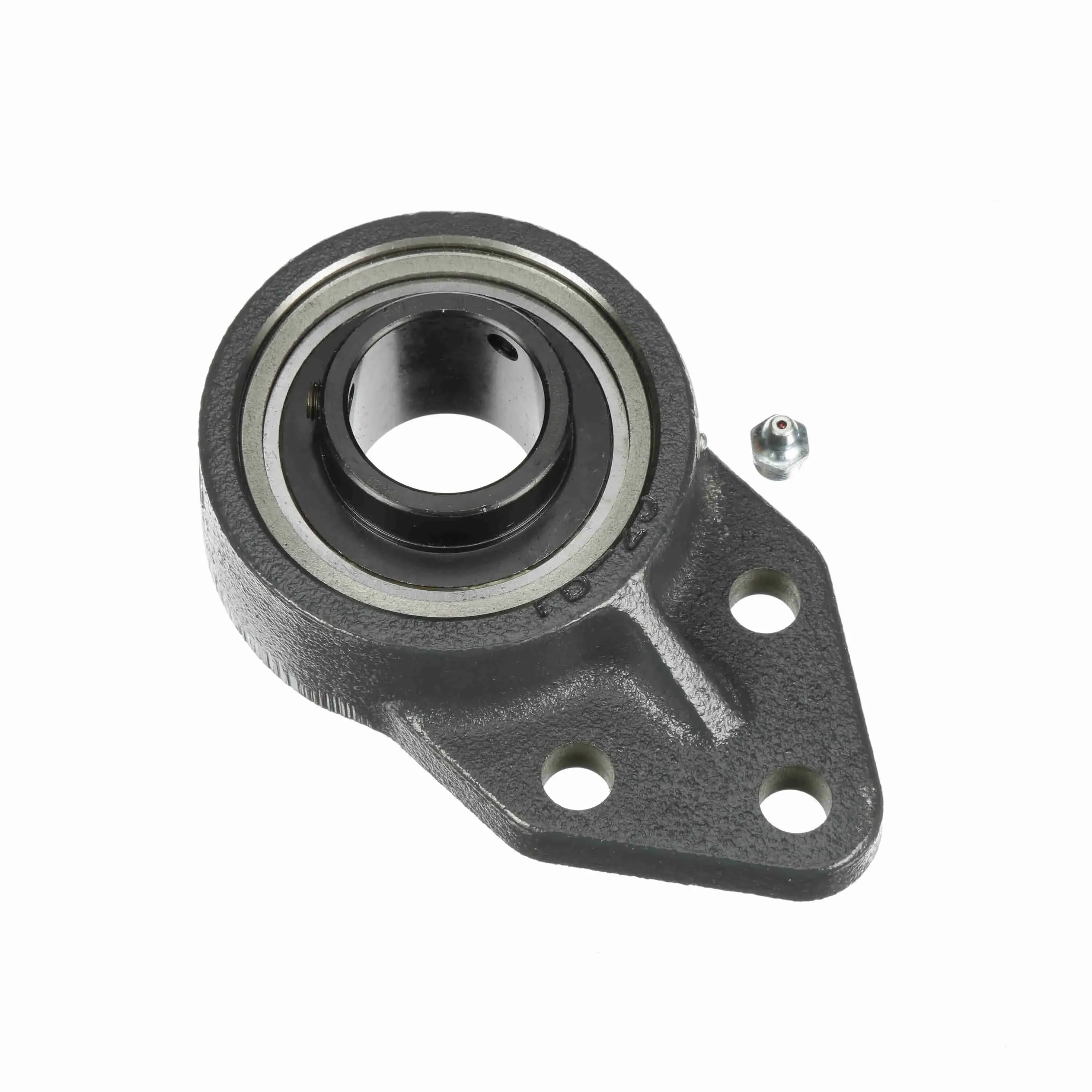

SEALMASTER FBMH-23 711690 Mounted Cast Iron Three Bolt Flange Bracket Ball Bearing
Item: BD9KWN
Model: FBMH-23
In Stock
Get it by Wednesday, Apr 15
We deliver to your doorstep under DAP terms. Customs clearance is for your account
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Base To Center Height | 4 1/4" |
|---|---|
| Bearing Centerline To Bolt Hole Center | 2 3/8" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 1/2" |
| Bolt Spacing | 2" |
| Bolt Spacing Height Direction | 1 1/4" |
| Bore Dia. | 1 7/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Dynamic Load Capacity | 5782 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 1/2" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Housing Type | Flange, Bracket, Three Bolt |
| Housing Width | 3 3/4" |
| Htc | 8483.20.4040 |
| Inner Race Heat Treat Method | Zone Hardened |
|---|---|
| Inner Ring Outside Diameter | 1.862" |
| Insert | MH-23 |
| Length Through Bore | 1.685" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 4000 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 1 22/25" |
| Overall Height To End Cap | 2.78" |
| Overall Length | 6.13" |
| Overall Width | 3 3/4" |
| Pilot Configuration | No Pilot |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact Seal With Flinger |
| Shaft Locking Type | Set Screw |
| Size Code | 2-17 |
| Static Load Rating | 3493 lbs. |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0905 cPS |
| Vibration Frequency Outer Ring Defect | 0.0595 cPS |
| Vibration Frequency Roller Spin | 0.0386 cPS |
Product Details
Yes
Shipping Information
| height | 11.43 |
|---|---|
| length | 18.29 |
| width | 5.33 |
| country of origin | MX |
|---|---|
| weight | 1.728000 |
