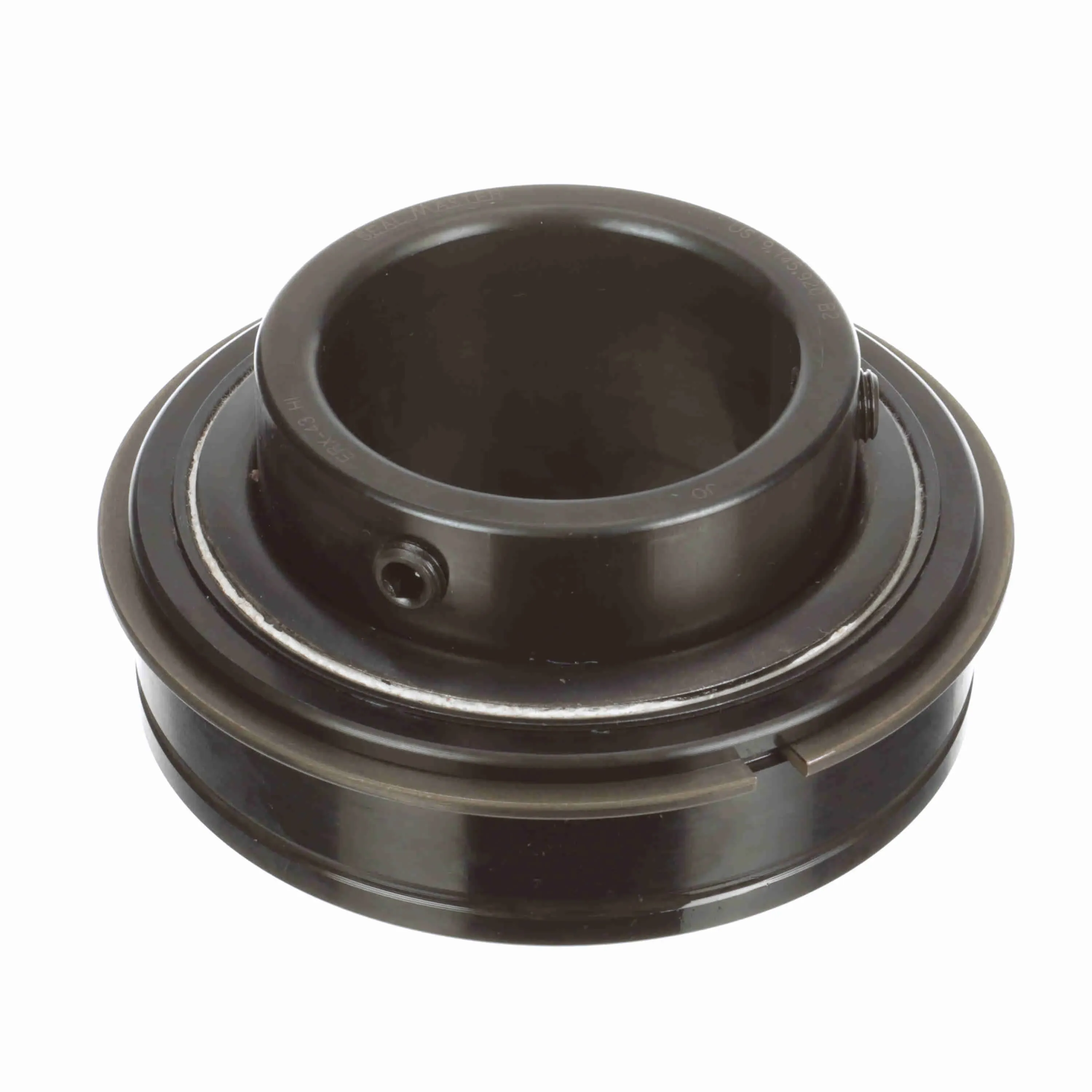

SEALMASTER ERX-43 HI 705063 Insert Bearing, 2.68 Inch Bore, 1.375 Inch Outer Race Width, 4.921 Inch Out Dia

Item: BF7UTP
Model: ERX-43 HI
12 In Stock

Ships within 2 days via

£719.18/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ability To Relubricate Yes
Bearing Insert Finish Black Oxide
Bore Dia. 2 11/16"
Bore Shape Straight
Cage Material Brass
Centerline To Front Face 1.688"
Duty Series Standard
Duty/series Standard Series
Dynamic Radial Load Capacity 13971 lbs.
End Cap No
Expansion No
Finish Black Oxide
Grade Grade 52100
Height 5.56"
Htc 8482.10.5056
I.d. 2 11/16"
Inner Race Heat Treat Method Zone Hardened
Inner Race Length 2 3/4"
Inner Race Profile Wide Inner Ring
Inner Ring Outside Dia. 3.438"
Inner Ring Outside Diameter 3.438"
Inner-race Heat-treat Method Zone Hardened
Insert Material Steel
Insert Material Finish Black Oxide
Insert Material Grade 52100
Internal Clearance Increased
Length 5 1/2"
Locking Device Single Set Screw
Lubrication Type PTFE Thickened Grease
Max. Operating Temperature 400°F
Max. Speed 1100 RPM
Misalignment Type Static Only
Operating Temperature Range 400°F
Options High Temperature
Outer Race Od 4.921"
Outer Race Profile Cylindrical
Outer Race Width 1 3/8"
Outer Ring Land Profile Standard
Overall Width 2 3/4"
Platform Gold Line Ball Bearing
Precision Rating Abec 1
Radial Static Load Capacity 10063 lbs.
Radius 2/25"
Retainer Type Land Riding Retainer
Shaft Size 2.688"
Width 3.13"

Shipping Information

Height 7.95
Length 13.97
Width 14.12
Country Of Origin US
Weight 2.587500
