SEALMASTER

See our 858 reviews on trustpilot

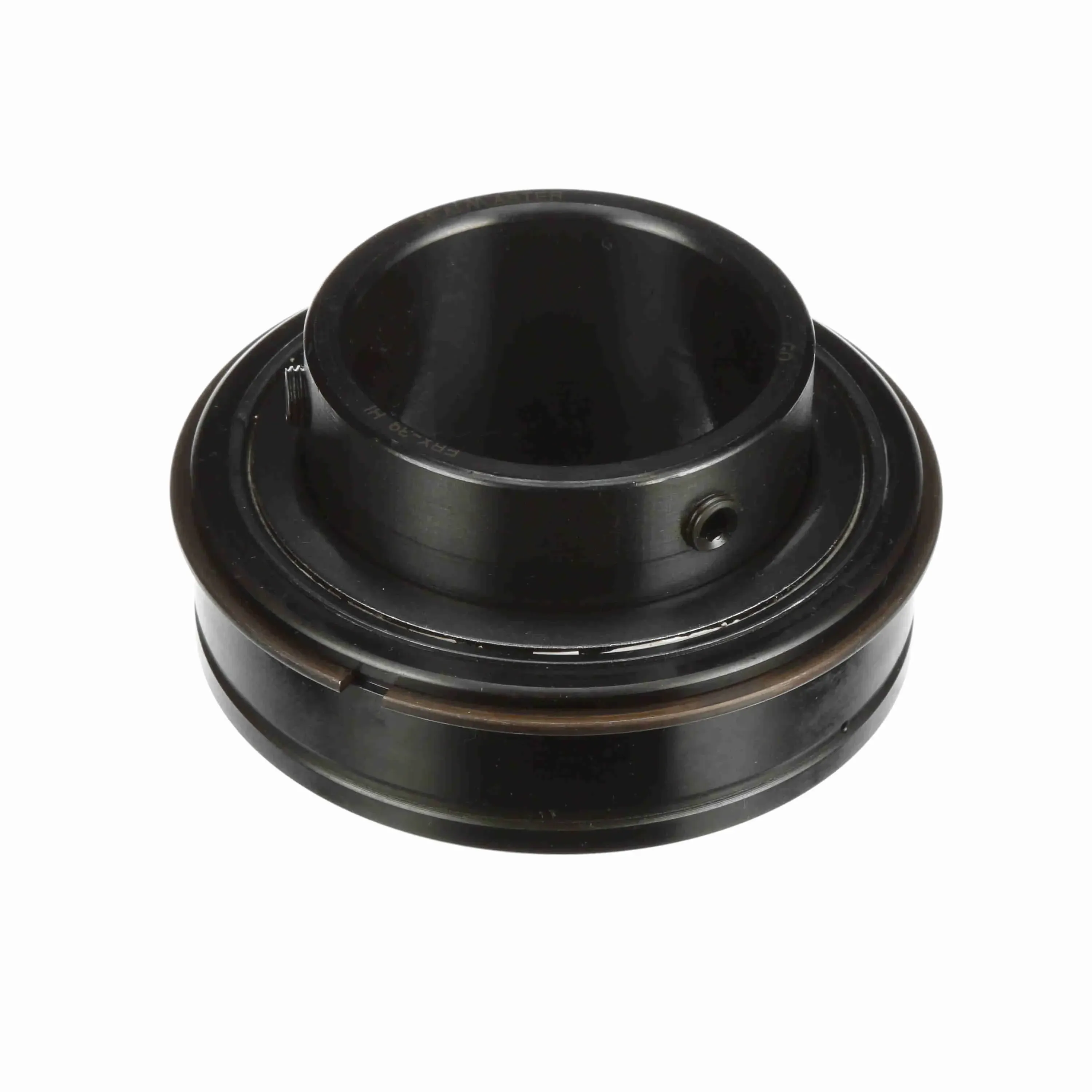

SEALMASTER ERX-35 HI 705057 Insert Bearing, 2.18 Inch Bore, 1.18 Inch Outer Race Width, 3.937 Inch Out Dia

Item: BD6HFJ
Model: ERX-35 HI
In Stock

Get it by Thursday, Apr 16

£278.64/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ability To Relubricate Yes
Bearing Insert Finish Black Oxide
Bore Dia. 2 3/16"
Bore Shape Straight
Cage Material Polyphenylene Sulfide
Centerline To Front Face 1.313"
Duty/series Standard Series
Dynamic Radial Load Capacity 9752 lbs.
End Cap No
Expansion No
Housing Type Insert Er Style
Htc 8482.10.5052
Inner Race Heat Treat Method Zone Hardened
Inner Race Length 2.188"
Inner Race Profile Wide Inner Ring
Inner Ring Outside Diameter 2.719"
Insert Material Steel
Insert Material Finish Black Oxide
Insert Material Grade 52100
Internal Clearance Increased
Locking Type Set Screw
Lubrication Type PTFE Thickened Grease
Max. Operating Temperature 400°F
Max. Speed 1400 RPM
Measure Units Inch
Misalignment Type Static Only
Options High Temperature
Outer Race Od 3.937"
Outer Race Profile Cylindrical
Outer Race Width 1.188"
Outer Ring Land Profile Tapered Lands
Overall Width 2.188"
Platform Gold Line Ball Bearing
Precision Rating Abec 1
Radial Static Load Capacity 6601 lbs.
Radius 2/25"
Retainer Type Land Riding Retainer
Rolling Element Ball Bearing
Seal Type High Temp Labyrinth

Product Details

Shipping Information

Height 5.72
Length 10.8
Width 10.8
Country Of Origin MX
Weight 1.350000
