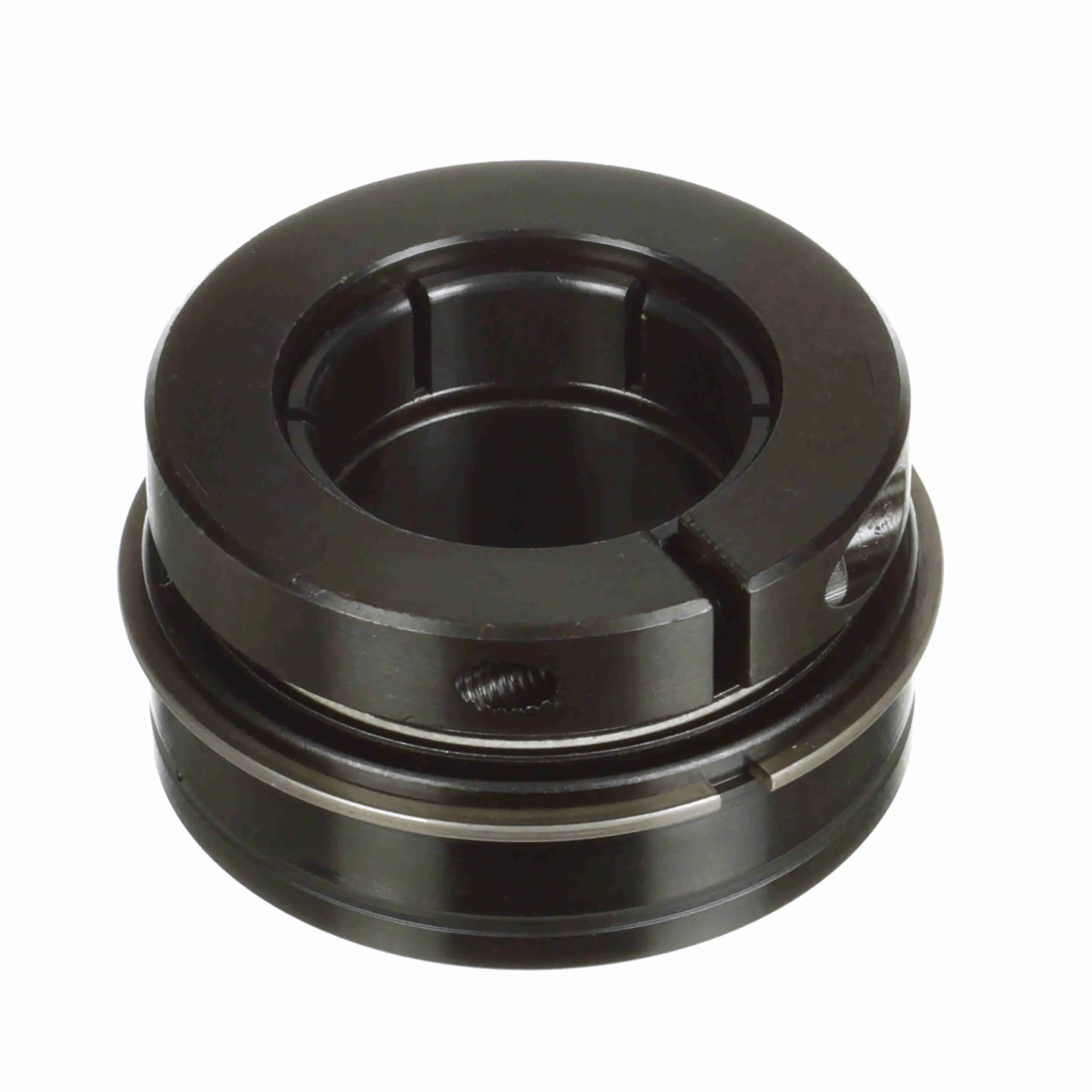

SEALMASTER ERX-31T HI 706189 Insert Bearing, 1.93 Inch Bore, 1-1/8 Inch Outer Race Width, 3.543 Inch Out Dia
Item: BE2QRT
Model: ERX-31T HI
In Stock
Get it by Friday, Apr 17
£282.85/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ability To Relubricate | Yes |
|---|---|
| Bearing Insert Finish | Black Oxide |
| Bore Dia. | 1 15/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Centerline To Front Face | 1.344" |
| Collar Outer Diameter | 2.469" |
| Duty/series | Standard Series |
| Dynamic Radial Load Capacity | 7889 lbs. |
| End Cap | No |
| Expansion | No |
| Housing Type | Insert Er Style |
| Htc | 8482.10.5052 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Length | 2.094" |
| Inner Race Profile | Wide Inner Ring |
| Inner Ring Outside Diameter | 2.469" |
| Insert Material | Steel |
| Insert Material Finish | Black Oxide |
| Insert Material Grade | 52100 |
| Internal Clearance | Increased |
|---|---|
| Locking Type | Concentric |
| Lubrication Type | PTFE Thickened Grease |
| Max. Operating Temperature | 400°F |
| Max. Speed | 1550 RPM |
| Measure Units | Inch |
| Misalignment Type | Static Only |
| Options | High Temperature |
| Outer Race Od | 3.543" |
| Outer Race Profile | Cylindrical |
| Outer Race Width | 1 1/8" |
| Outer Ring Land Profile | Tapered Lands |
| Overall Width | 2.094" |
| Platform | Gold Line Ball Bearing |
| Precision Rating | Abec 1 |
| Radial Static Load Capacity | 5216 lbs. |
| Radius | 0.062" |
| Retainer Type | Land Riding Retainer |
| Rolling Element | Ball Bearing |
| Seal Type | High Temp Labyrinth |
Shipping Information
| Height | 5.72 |
|---|---|
| Length | 10.8 |
| Width | 10.8 |
| Country Of Origin | MX |
|---|---|
| Weight | 1.521000 |
Related Products
| Style | Model | Housing Type | Bore Dia. | Overall Width | Seal Type | Dynamic Radial Load Capacity | Max. Speed | Locking Device | Shaft Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | ERX-35 HI | Insert Er Style | 2 3/16" | 2.188" | High Temp Labyrinth | 9752 lbs. | 1400 RPM | - | - | 232.20 | |
| B | ERX-PN31T | Insert Er Style | 1 15/16" | 2.094" | Triple Lip Contact Seal | 7889 lbs. | 1500 RPM | - | - | 371.55 | |
| C | ERX-12T LO | Insert Er Style | 3/4" | 1.281" | Cut Down Felt Labyrinth | 2611 lbs. | 5800 RPM | - | - | 120.67 | |
| D | ERX-PN20 | Insert Er Style | 1 1/4" | 1.688" | Triple Lip Contact Seal | 5782 lbs. | 2000 RPM | - | - | 203.75 | |
| B | ERX-PN23T | Insert Er Style | 1 7/16" | 1 3/4" | Triple Lip Contact Seal | 5782 lbs. | 2000 RPM | - | - | 249.76 | |
| E | ERX-39 XLO | Insert Only | - | - | Extra Low Drag Felt | - | - | Single Set Screw | 2.438" | 288.81 | |
| F | ERX-12 XLO | Insert Er Style | 3/4" | 1.219" | Cut Down Felt Labyrinth | 2611 lbs. | 2900 RPM | - | - | 58.77 |
