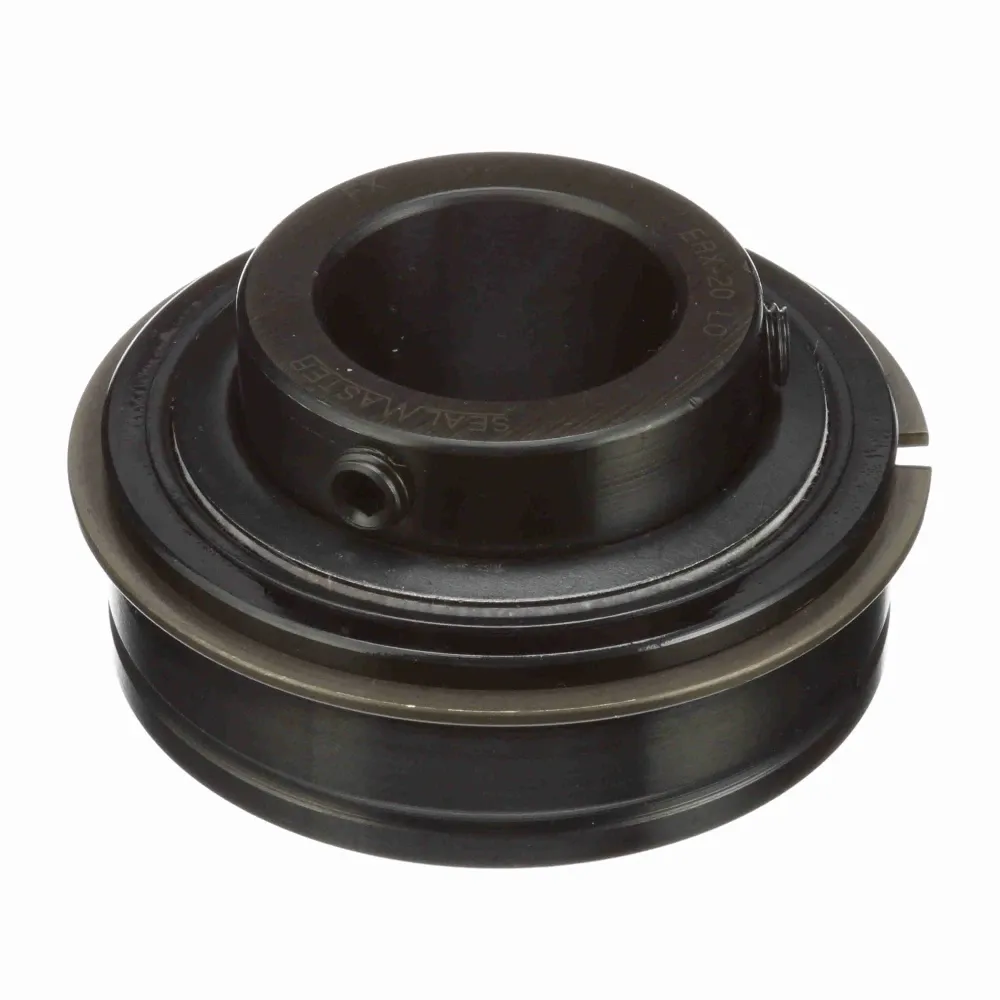

SEALMASTER ERX-209 LO Ball Bearing, Black Oxided, Setscrew Lock, Low Drag, 45mm
Item: BE7DLF
Model: ERX-209 LO
In Stock
Get it by Friday, Apr 17
£201.06/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bearing Material | Black Oxided Bearing Steel |
|---|---|
| Bearing Type | Ball Bearing |
| Bore Dia. | 45 mm |
| Bore Type | Round |
| Duty Type | Standard Duty |
| Dynamic Radial Load Capacity | 7901 lbs. |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Fillet Radius | 1.57" |
| Finish/coating | Black Oxide |
| Housing Type | Insert (ER Style) |
| Insert Material | 52100 Bearing Steel, Black Oxided |
| Locking Device | Set Screw |
|---|---|
| Max. Rpm | 3000 RPM |
| Operating Temp. Range | -20°F to +220°F |
| Outer Ring Width | 27.8 mm |
| Outside Dia. | 85 mm |
| Relubricatable | Yes |
| Retainer Type | Land Riding Retainer |
| Seal Type | Cut Down Felt Labyrinth |
| Series | ER Series |
| Static Load Capacity | 5139 lbf. |
| Static Radial Load Capacity | 5139 lbs. |
Shipping Information
| Height | 2.54 |
|---|---|
| Length | 2.54 |
| Width | 4.92 |
|---|---|
| Weight | 1.035000 |
Related Products
| Style | Model | Housing Type | Bore Dia. | Overall Width | Seal Type | Dynamic Radial Load Capacity | Max. Speed | Locking Device | Shaft Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | ERX-35 HI | Insert Er Style | 2 3/16" | 2.188" | High Temp Labyrinth | 9752 lbs. | 1400 RPM | - | - | 232.20 | |
| B | ERX-PN31T | Insert Er Style | 1 15/16" | 2.094" | Triple Lip Contact Seal | 7889 lbs. | 1500 RPM | - | - | 371.55 | |
| C | ERX-12T LO | Insert Er Style | 3/4" | 1.281" | Cut Down Felt Labyrinth | 2611 lbs. | 5800 RPM | - | - | 120.67 | |
| D | ERX-PN20 | Insert Er Style | 1 1/4" | 1.688" | Triple Lip Contact Seal | 5782 lbs. | 2000 RPM | - | - | 203.75 | |
| B | ERX-PN23T | Insert Er Style | 1 7/16" | 1 3/4" | Triple Lip Contact Seal | 5782 lbs. | 2000 RPM | - | - | 249.76 | |
| E | ERX-39 XLO | Insert Only | - | - | Extra Low Drag Felt | - | - | Single Set Screw | 2.438" | 288.81 | |
| F | ERX-12 XLO | Insert Er Style | 3/4" | 1.219" | Cut Down Felt Labyrinth | 2611 lbs. | 2900 RPM | - | - | 58.77 |
