| Abec Rating | 1 |
| Ability To Relubricate | Yes |
| Ball Material | Alloy Steel |
| Ball Material Grade | 52100 |

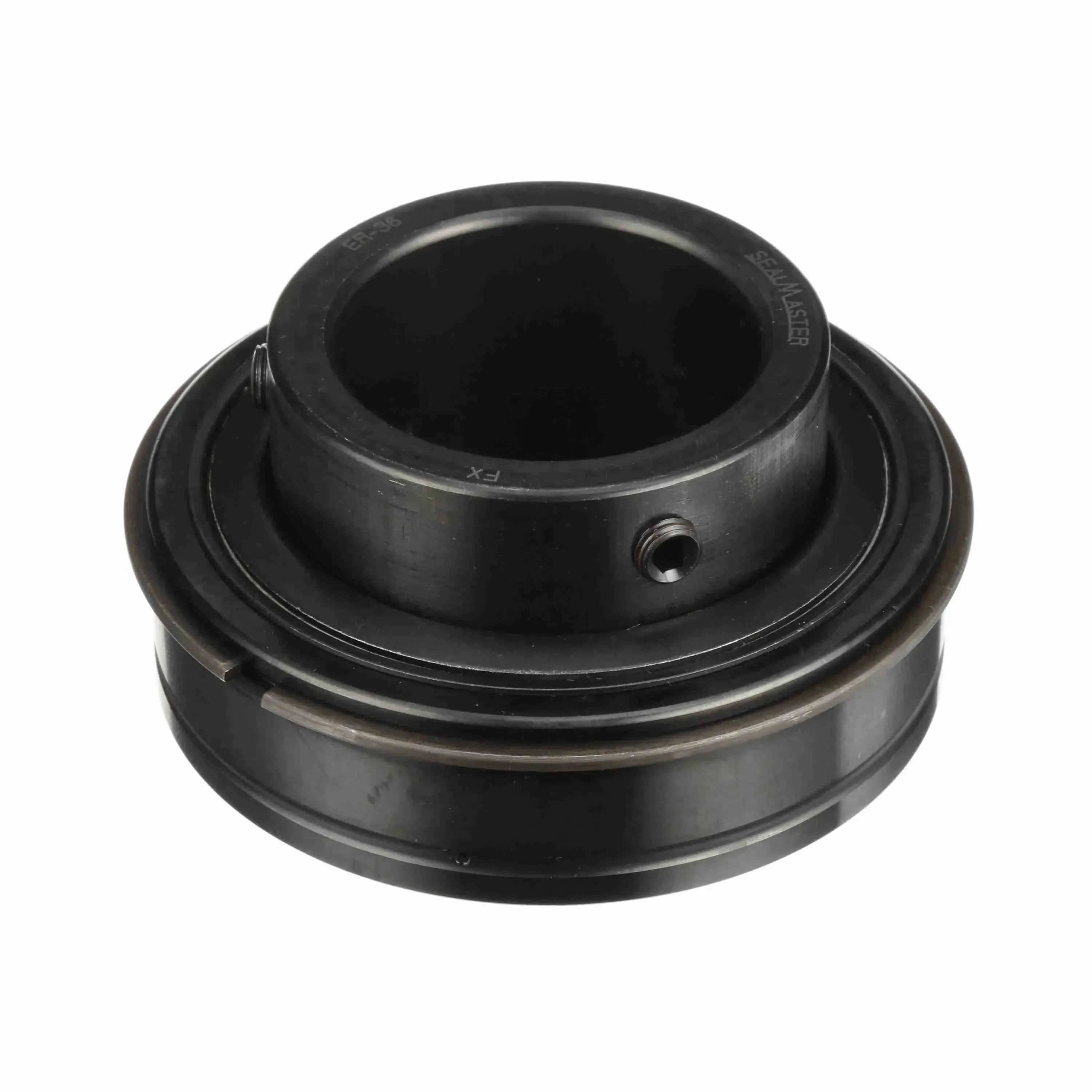

| Bearing Industry Number | ER-36 |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Shape | Cylindrical |
| Bearing Insert Type | Radial/Deep Groove Ball |
| Bore Dia. | 2 1/4" |
| Bore Diameter | 2 1/4" |
| Bore Diameter Tolerance | +0.0000/-0.0010" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Centerline To Front Face | 1.563" |
| Closure | Double Sealed |
| Duty/series | Standard |
| Dynamic Radial Load Capacity | 11789 lbs. |
| End Cap | No |
| Expansion | No |
| Features | 120° Spacing Setscrew Lock with Diamond Faceted Setscrews, 360° Grease Circulation Around the Rolling Elements, Better Retained and Utilized Lubrication, Unique Land Riding Retainer Design Provides Superior Pocket Clearance, Use in Sealmaster Machined Housings Only |
| Finish | Black Oxide |
| For Environment | Highly Dusty and Dirty |
| Grease Fitting Thread Length | 3/8" |
| Grease Fitting Thread Size | 7/16"-20 |
| Grease Fitting Thread Type | UNF |
| Housing Type | Insert ER Style |
| Htc | 8482.10.5056 |
| Includes | Retaining Ring, Set Screws |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Length | 2.563" |
| Inner Race Profile | Wide Inner Ring |
| Inner Ring Outside Diameter | 2.984" |
| Inner Ring Width | 2 14/25" |
| Insert Material | Steel |
| Insert Material Finish | Black Oxide |
| Insert Material Grade | 52100 |
| Internal Clearance | Standard |
| Load Direction | Radial |
| Locking Type | Set Screw |
| Lubricant Material | NLGI #2 Equivalent |
| Lubrication Openings | Grease Fitting |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 3000 RPM |
| Maximum Temperature | 220°F |
| Measure Units | Inch |
| Minimum Temperature | -20°F |
| Misalignment Type | Static Only |
| Outer Race Od | 4.331" |
| Outer Race Profile | Cylindrical |
| Outer Race Width | 1 1/4" |
| Outer Ring Land Profile | Tapered Lands |
| Outer Ring Width | 1.25" |
| Outside Diameter | 4 21/64" |
| Overall Width | 2.563" |
| Platform | Gold Line Ball Bearing |
| Precision Rating | ABEC 1 |
| Radial Static Load Capacity | 8150 lbs. |
| Radius | 2/25" |
| Retainer Type | Land Riding Retainer |
| Ring End To Center Width | 1.563" |
| Ring Material | Alloy Steel |
| Ring Material Grade | Grade 52100 |
| Rolling Element | Ball Bearing |
| Rolling Element Material | Alloy Steel |
| Rolling Element Material Grade | Grade 52100 |
| Rolling Element Rows | 1 |
| Seal Material | Felt |
| Seal Type | Felt Labyrinth Seal |
| Set Screw Thread Length | 0.38" |
| Set Screw Thread Size | 3/8"-24 |
| Set Screw Thread Type | UNF |
| Shaft Locking Type | Set Screws |
| Standards | ISO CERTIFIED 100-220 |
| Static Radial Load Capacity | 8150 lbf. |
| Ship weight (kg) | 1.87 |
| Ship height (cm) | 12.07 |
| Ship length (cm) | 6.68 |
| Ship width (cm) | 12.22 |
| Country of Origin | MX |
